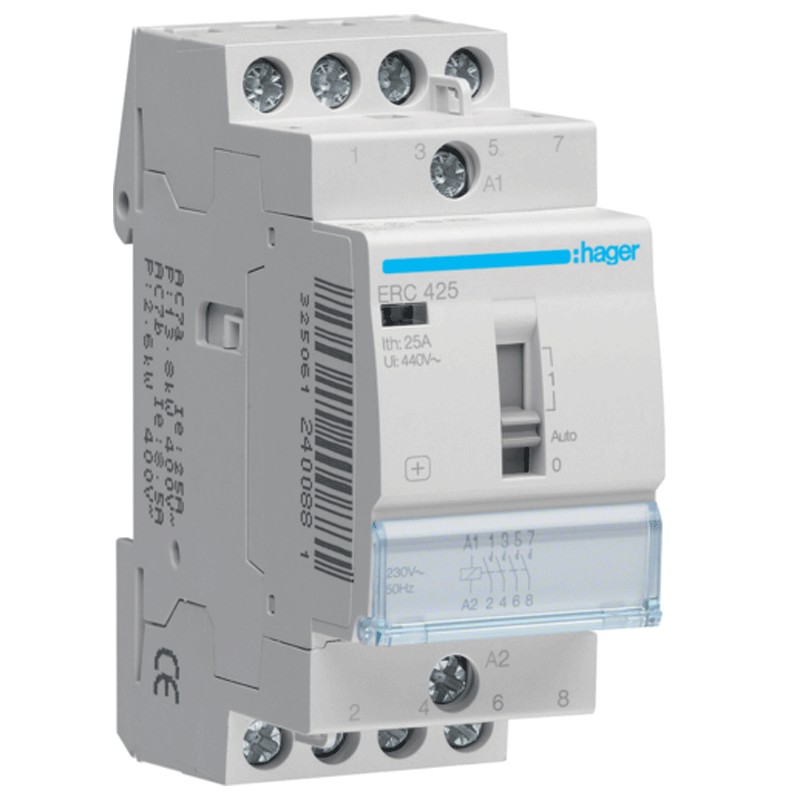

Hager contactor 4NA 230V manual switch ERC425
HAG ERC425
3250612400881
Hager contactor with the following features:
- Control circuit voltage AC 230 V
- Rated frequency 50 Hz
- 2 modules
- 4 poles
- Contact type 4NO
- DIN connection (universal for any switchboard on the market)
- Rated operational current 25 amperes
- Switch with manual control
€47.48
Items Available: 14
: 12
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Series
- With manual control
- Control circuit voltage AC 230 V
- Nominal operating voltage AC 400 V
- Rated operational current 25 amperes
- 2 modules
- 4 poles
- Type of contact 4NO
- Rated frequency 50 Hz
- Rated insulation voltage 440 V
- Rated fault withstand current 4 kV
- Electrical life and number of cycles 30000
- Depth of installed product 60 mm
- Height of installed product 83 mm
- Width of installed product 35.75 mm
- Tightening torque 1.2 Nm
- Degree of protection IP2X
- Type of connection screw terminal
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 400VAC
- Modules: 2
- Poles: 4P
- Amps: 25A
