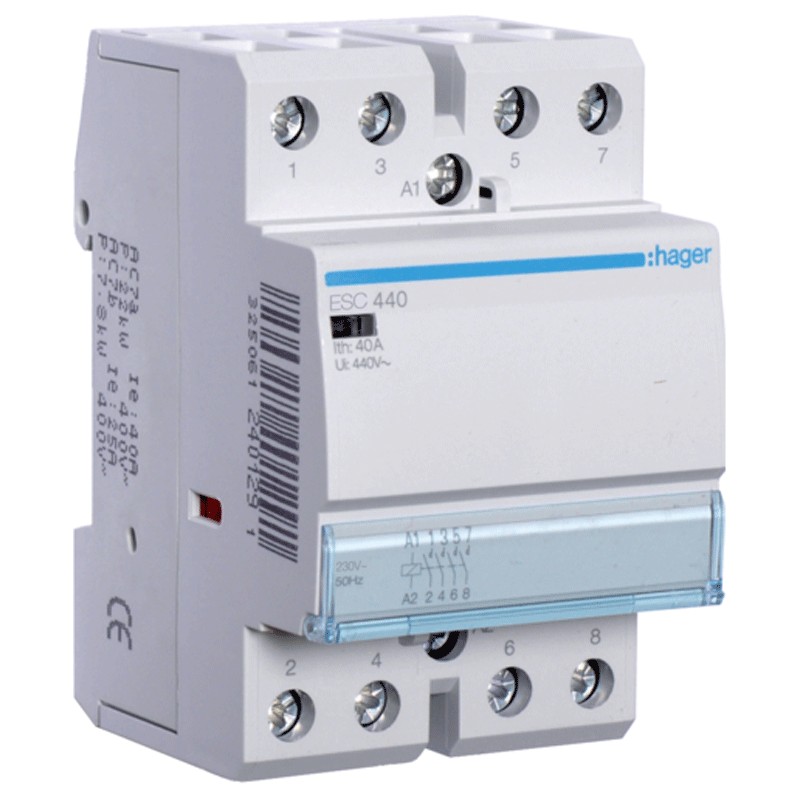

Hager Contactor 40A 4NA 230VAC STD 3 modules ESC440
HAG ESC440
3250612401284
Hager STANDARD contactor with the following features:
- Control circuit voltage AC 230 V
- Rated frequency 50 Hz
- 3 modules
- 4 poles
- Contact type 4NO
- DIN connection (universal for any switchboard on the market)
- Nominal operating current 40 amperes
€95.96
Items Available: 25
: 3
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Hager Serie
- Control circuit voltage AC 230 V
- Rated operational voltage AC 400 V
- Rated operational current 40 amperes
- 3 modules
- 4 poles
- Contact type 4NO
- Rated frequency 50 Hz
- Rated insulation voltage 440 V
- Rated impulse withstand voltage 4 kV
- Electrical life and number of cycles 30000
- Depth of installed product 60 mm
- Height of installed product 85 mm
- Width of installed product 54 mm
- Coil tightening torque: 2.5Nm, Power: 3.5Nm
- Protection IP2X
- Type of connection with screw
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 3
- Poles: 4P
- Amps: 40A
