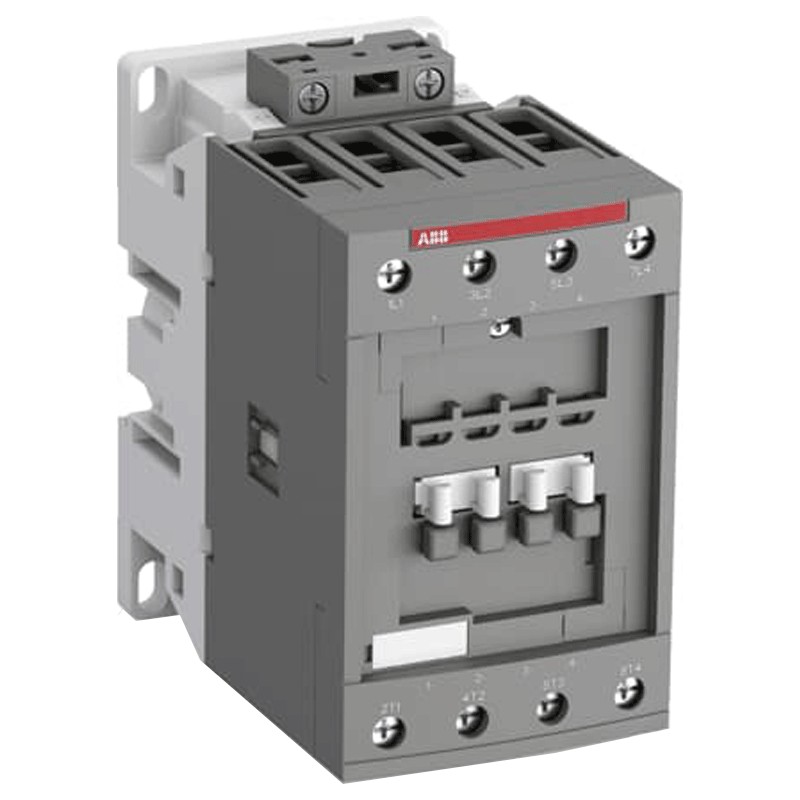

ABB Contactor 4P 70A AC1 100-250V ac/dc AF40400013
ABB AF40400013
3471523133532
Abb contactor, with the following characteristics
- Nominal control circuit voltage in DC 100/250Vac
- Main circuit rated operating voltage 690 Vac
- 4 poles
- 2 modules
- DIN connection (universal for any control unit on the market)
- Contact type 4NA
- Main circuit rated frequency 50/60 Hz
- Operating current 70 amperes
€141.43
Items Available: 38
: 10
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Nominal control circuit voltage in DC 100/250Vac
- Rated main circuit operating voltage 690 Vac
- Operating current 70 amperes
- Main circuit rated frequency 50/60 Hz
- 4 poles
- 2 modules
- Contact type 4NA
- Degree of protection IP20
- Width 70 mm
- Depth 113.5 mm
- Height 125.5 mm
- Net weight 1.27 kg
Data sheet
- Type: Contactors
- Voltage: 100/250VAC
- Modules: 2
- Poles: 4P
- Amps: 70A
