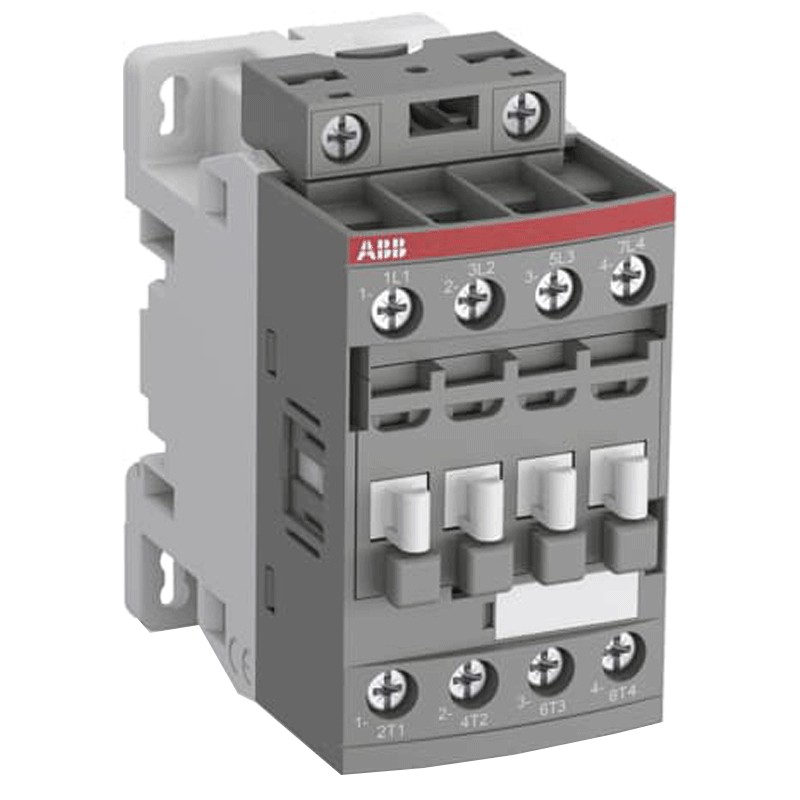

ABB contactor 4 poles 25A AC1 24-60V a.c./d.c. AF09400011
ABB AF09400011
3471523115019
Abb contactor, with the following characteristics
- Rated main circuit operating voltage 690 V
- Rated control circuit voltage DC operation 20/60 V
- 4 poles
- 2 modules
- DIN connection (universal for any control unit on the market)
- Rated main circuit frequency 50 / 60 Hz
- Operating current 25 amperes
€30.18
Items Available: 14
: 11
Frequently bought together
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 V
- Rated control circuit voltage DC operation 20/60 V
- Operating current 25 amperes
- Rated main circuit frequency 50 / 60 Hz
- 4 poles
- 2 modules
- Type of terminal Screw Terminals
- Coilprotection IP20,main terminals IP20
- Net width 45 mm
- Depth 77 mm
- Net Height 86 mm
- Net Product Weight 0.27 kg
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 24/60V
- Modules: 2
- Poles: 4P
- Amps: 25A
