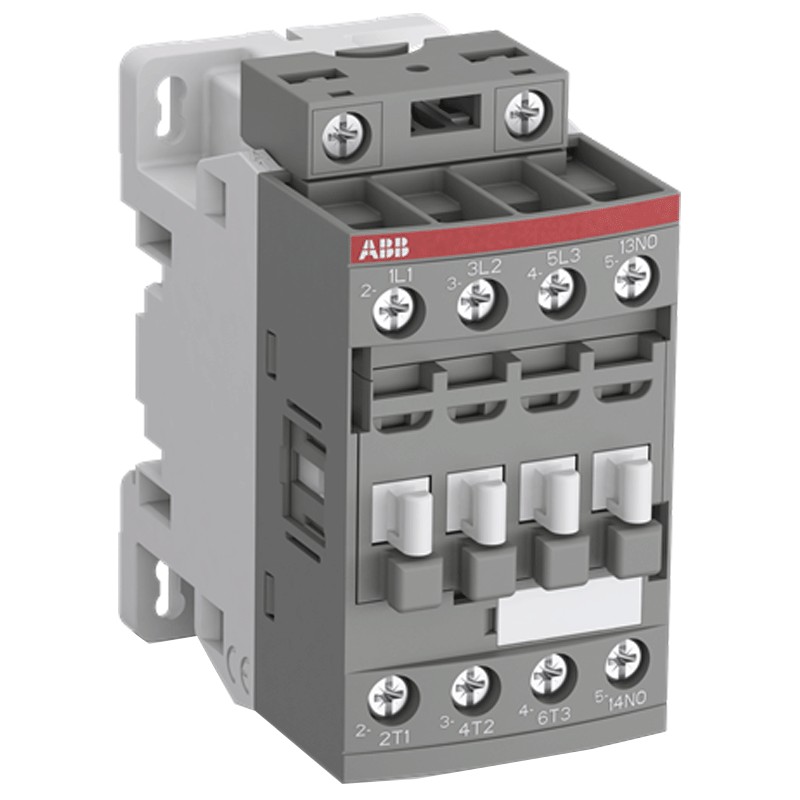

ABB contactor 3 poles 9A 24-60 V a.c./d.c. AF09301011
ABB AF09301011
3471523110014
Abb contactor, with the following characteristics
- Control voltage (24-60 V 50/60 Hz - 20-60 V DC)
- Rated operating voltage auxiliary circuit 690V - main circuit 690V
- 3 poles
- 2 modules
- DIN connection (universal for any switchboard on the market)
- Contact type 3NO
- Rated frequency auxiliary circuit 50 / 60 Hz - main circuit 50 / 60 Hz
- Operating current 9 amperes
ABB contactor 3 poles 9A 24-60 V a.c./d.c. AF09301011
€27.02
€27.02
Tax included
Tax included
Pay in installments with Klarna
Items Available: 314
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Control voltage (24-60 V 50/60 Hz - 20-60 V DC)
- Rated operating voltage auxiliary circuit 690V - main circuit 690V
- Operating current 9 amps
- Rated frequency auxiliary circuit 50 / 60 Hz - main circuit 50 / 60 Hz
- 3 poles
- 2 modules
- Contact type 3NO
- Degree of protectionauxiliary terminals IP40, coil terminals IP20,main terminals IP20
- Screw terminals
- Net width 45 mm
- Depth/Length 77 mm
- Net height 86 mm
- Weight 0.27 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 24/60V
- Modules:
- 2
- Poles:
- 3P
- Amps:
- 9A
