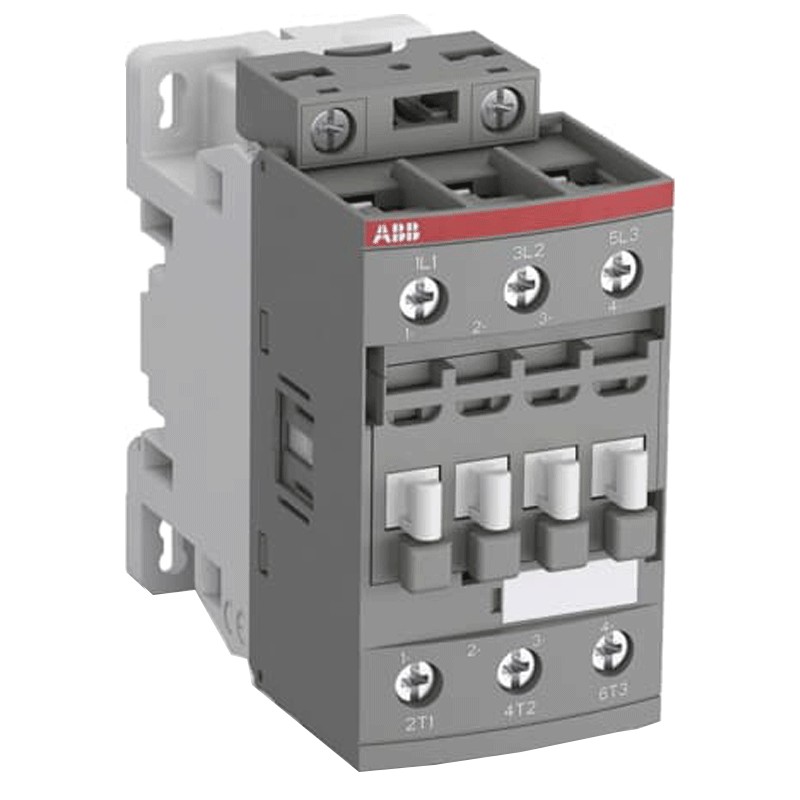

ABB contactor 3 poles 26A 24-60V a.c./d.c. AF26300011
ABB AF26300011
3471523110915
Abb contactor, with the following characteristics
- Rated main circuit operating voltage 690 V
- Nominal voltage control circuit DC operation 24-60 Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 26 amperes
ABB contactor 3 poles 26A 24-60V a.c./d.c. AF26300011
€52.09
€52.09
Tax included
Tax included
Pay in installments with Klarna
Items Available: 91
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 V
- Rated voltage control circuit operation DC 24-60 Vac
- Operating current 26 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Coilprotection IP20,main terminals IP20
- Width 45 mm
- Product depth 86 mm
- Product height 86 mm
- Product net weight 0,31 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 24/60V
- Poles:
- 3P
- Amps:
- 26A
