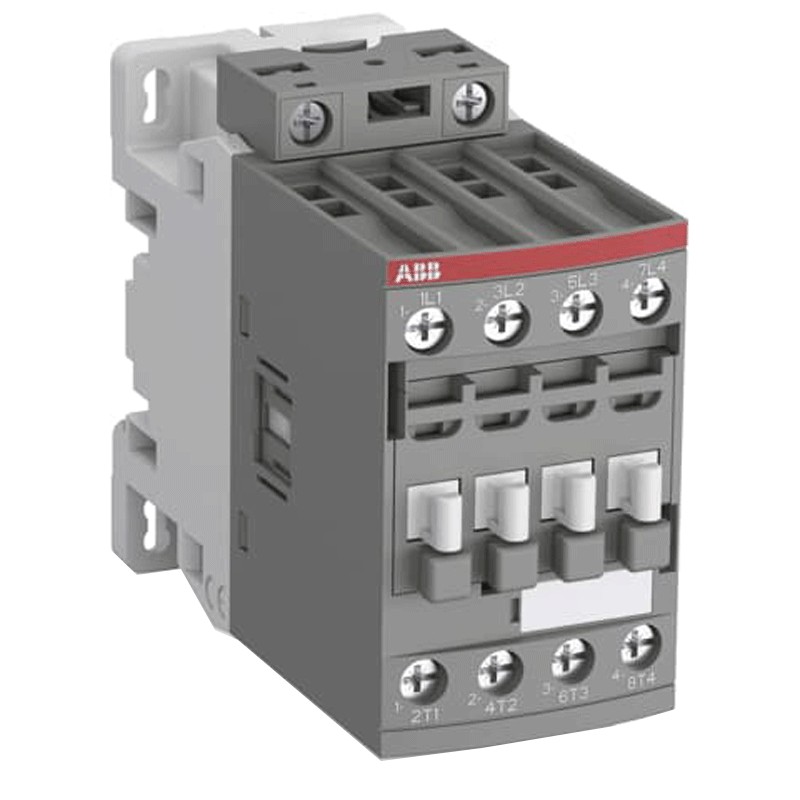

ABB 4-pole contactor 55A AC1 100-250V a.c./d.c. AF38400013
ABB AF38400013
3471523115330
Abb contactor, with the following characteristics
- Rated main circuit operating voltage 690 Vac
- Rated control circuit operating voltage DC 100-250V
- 4 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 55 amperes
€122.79
Items Available: 5
: 2
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated main circuit operating voltage 690 Vac
- Rated voltage control circuit operation 100-250V Vac
- Operating current 55 amperes
- Main circuit rated frequency 50/60Hz
- 4 poles
- Number of NO main contacts 4
- Number of NC main contacts 0
- Number of NO auxiliary contacts 0
- Number of NC auxiliary contacts 0
- Type of terminal Screw Terminals
- Coilprotection IP20,main terminals IP20
- Product width 45 mm
- Product depth 101 mm
- Product height 86 mm
- Product net weight 0.36 kg
There are no reviews
Data sheet
- Type: Contactors
- Voltage: 100/250VAC
- Poles: 4P
- Amps: 55A
