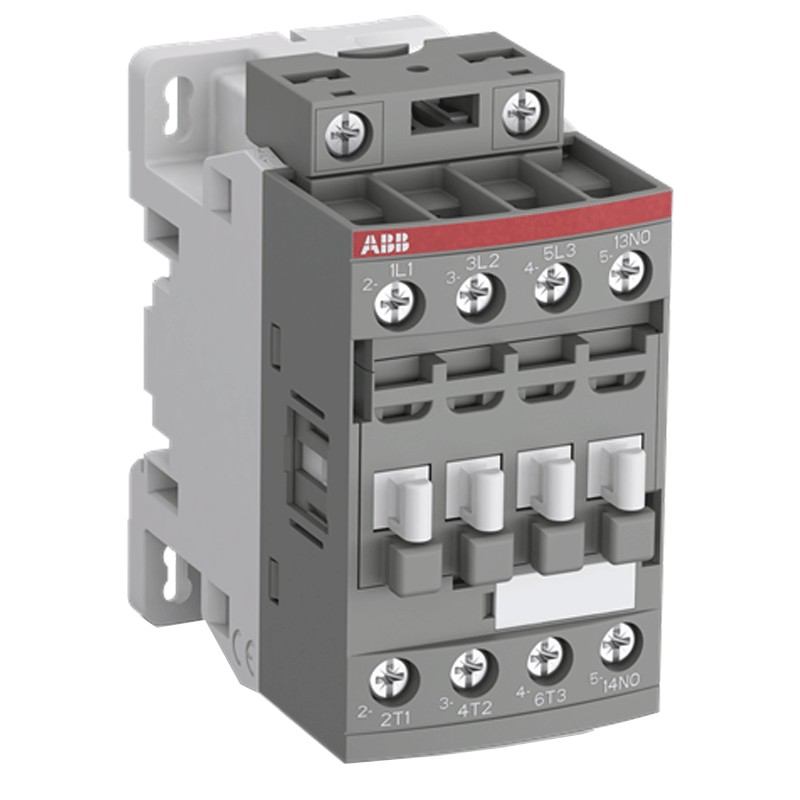

ABB 3-pole contactor 18A 100-250V a.c./d.c. AF16301013
ABB AF16301013
3471523110632
Abb contactor, with the following characteristics:
- Rated operating voltage Auxiliary circuit 690 V, Main circuit 690 V
- Rated operating voltage control circuit DC 100/250 Vac
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Rated frequency auxiliary circuit 50/60 Hz, main circuit 50/60 Hz
- Operating current 18 amperes
ABB 3-pole contactor 18A 100-250V a.c./d.c. AF16301013
€38.72
€38.72
Tax included
Tax included
Pay in installments with Klarna
Items Available: 42
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated operating voltage Auxiliary circuit 690 V, Main circuit 690 V
- Rated operating voltage control circuit DC 100/250 Vac
- Operating current 18 amperes
- Rated frequency auxiliary circuit 50/60 Hz, main circuit 50/60 Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 1
- Number of NC auxiliary contacts 0
- Coilprotection IP20,main terminals IP00

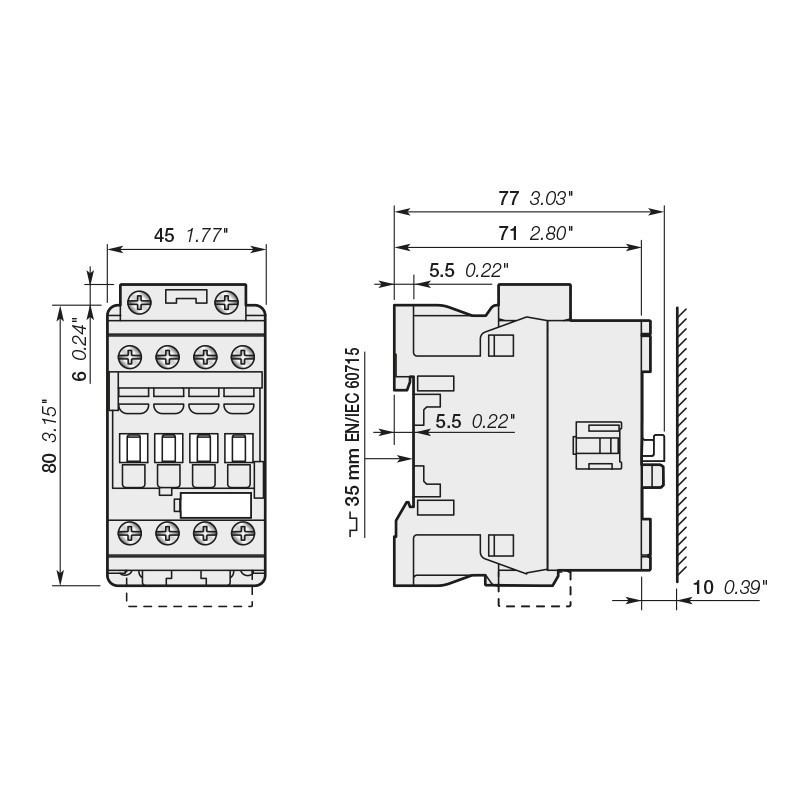

- Width 45 mm
- Product depth 77 mm
- Product height 86 mm
- Product net weight 0.27 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 18A
