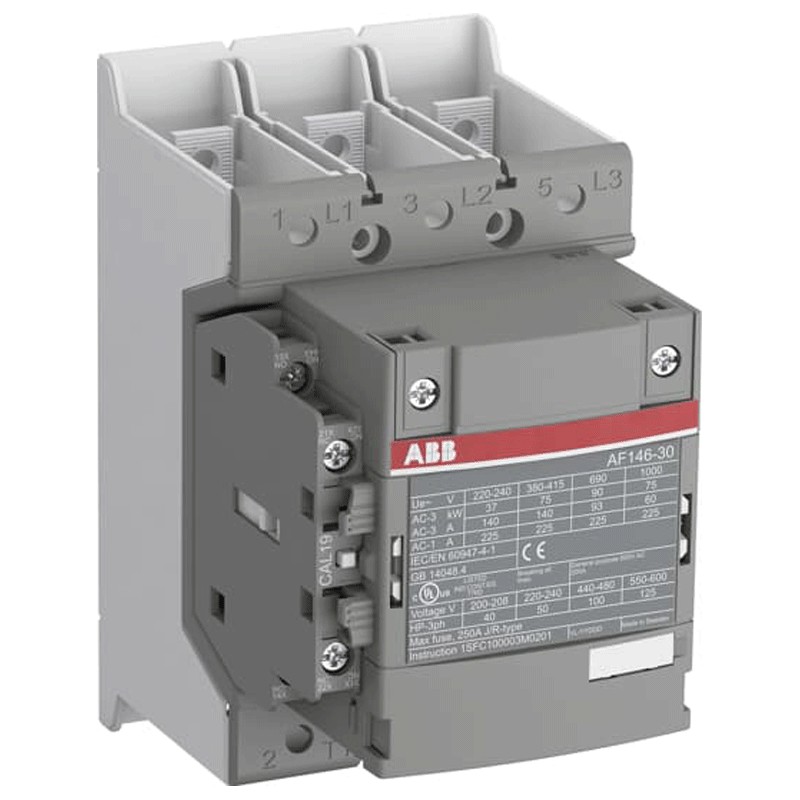

ABB 3-pole contactor 146A 100-250V a.c./d.c. AF1463011B13
ABB AF1463011B13
7320500476987
Abb contactor, with the following characteristics
- Rated operating voltage main circuit 1000V
- Rated control circuit voltage DC operation 100/250 V
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Main circuit rated frequency 50/60 Hz
- Operating current 146 amperes
ABB 3-pole contactor 146A 100-250V a.c./d.c. AF1463011B13
€518.76
€518.76
Tax included
Tax included
Pay in installments with Klarna
Items Available: 5
Frequently bought together
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Nominal operating voltage main circuit 1000V
- Rated voltage control circuit DC operation 100/250V
- Operating current 146 amperes
- Main circuit rated frequency 50/60Hz
- 3 poles
- Number of NO main contacts 3
- Number of NC main contacts 0
- Number of NO auxiliary contacts 1
- Number of NC auxiliary contacts 1
- Coilprotection IP20,main terminals IP00

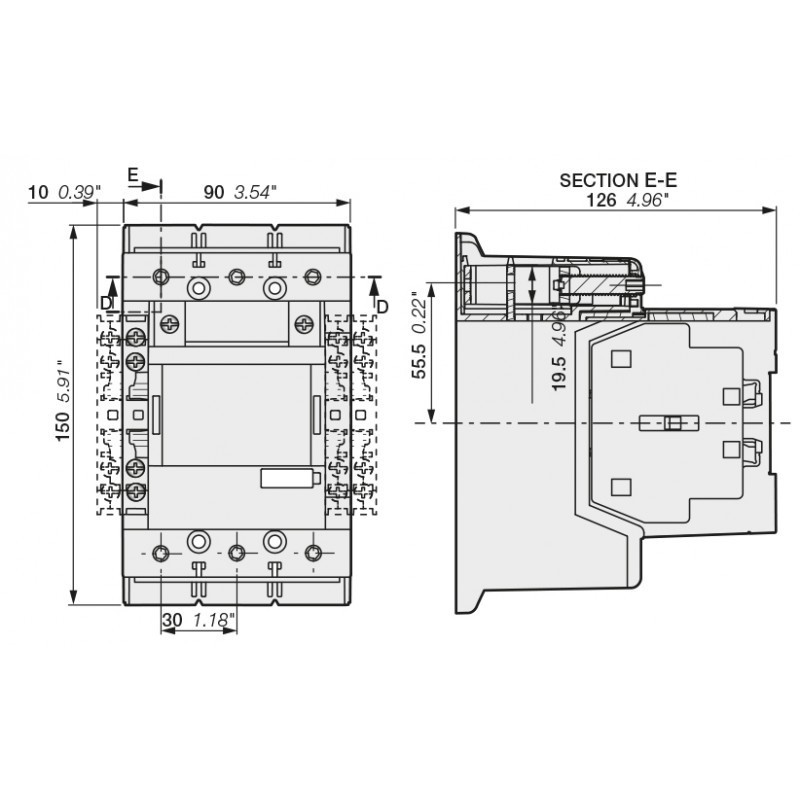

- Product width 90 mm
- Product depth 126 mm
- Product height 150 mm
- Product net weight 1.3 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 146A
