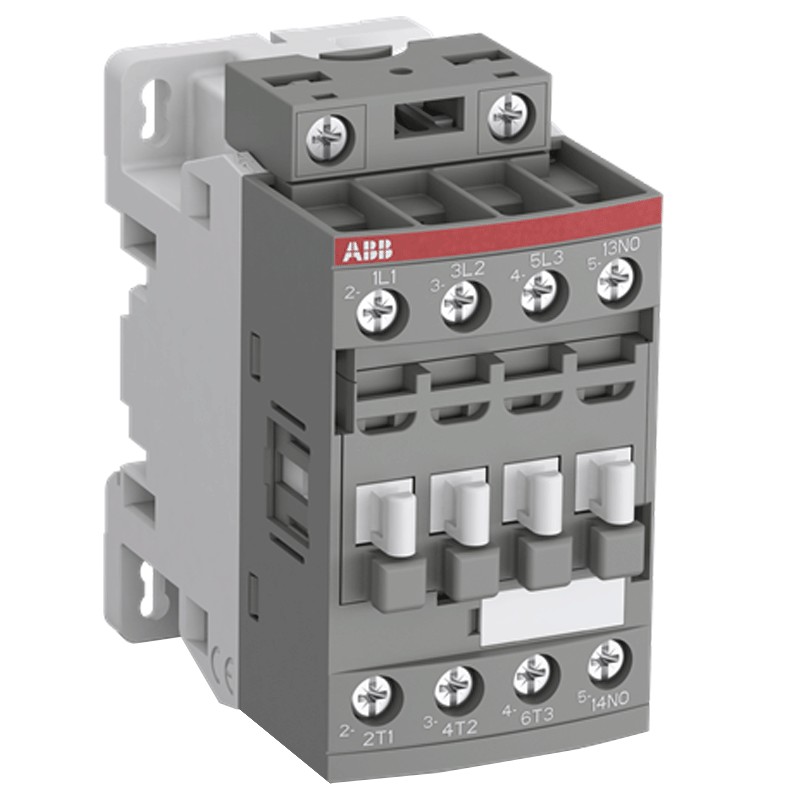

ABB 3-pole contactor 12A 100-250V a.c./d.c. AF12301013
ABB AF12301013
3471523110335
Abb contactor, with the following characteristics:
- Rated operating voltage auxiliary circuit 690V, main circuit 690V
- Rated control circuit operating voltage DC 100/250 V
- 3 poles
- DIN connection (universal for any switchboard on the market)
- Rated frequency auxiliary circuit 50/60 Hz, main circuit 50/60 Hz
- Operating current 12 amps
ABB 3-pole contactor 12A 100-250V a.c./d.c. AF12301013
€31.82
€31.82
Tax included
Tax included
Pay in installments with Klarna
Items Available: 43
Frequently bought together
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated operating voltage auxiliary circuit 690V, main circuit 690V
- Rated voltage control circuit operation DC 100/250 V
- Operating current 12 amps
- Rated frequency auxiliary circuit 50 / 60 Hz, main circuit 50 / 60 Hz
- 3 poles
- Degree of Protection auxiliary terminals IP40, coils IP20, main terminals IP20
- Type of terminal Screw Terminals
- Width 45 mm
- Depth 77 mm
- Net Height 86 mm
- Product net weight 0.27 kg
There are no reviews
Data sheet
- Type:
- Contactors
- Voltage:
- 100/250VAC
- Poles:
- 3P
- Amps:
- 12A
