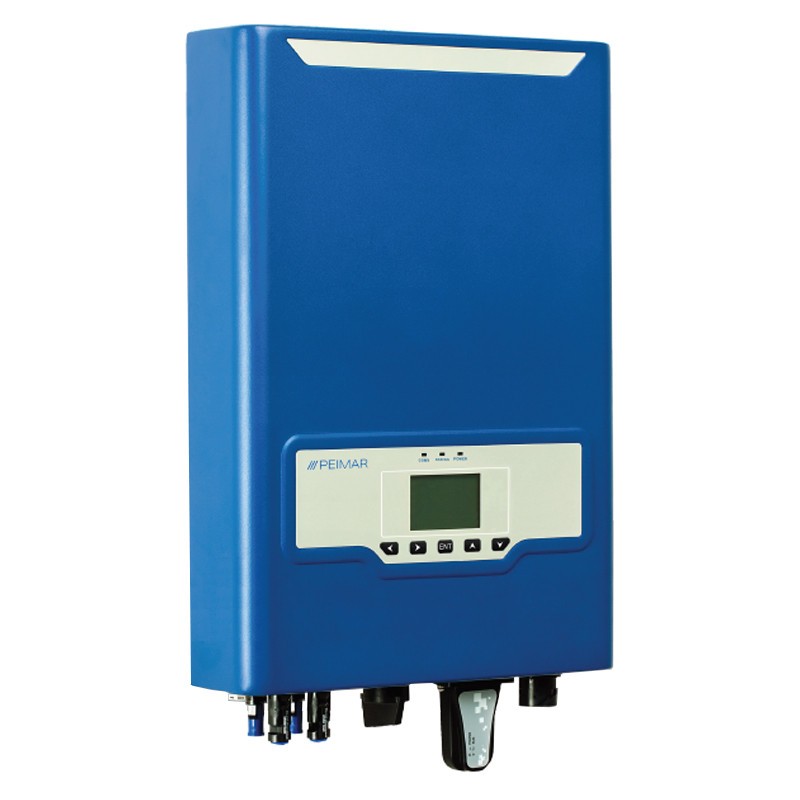

Photovoltaic Inverter three-Phase Peimar 10KW Wifi with the sec. 2MPPT PSI-J10000-TP
492 PSI-J10000-TP
Photovoltaic Inverter three-Phase Peimar VIRTUS LINE 10KW Wifi with switch-disconnector 2MPPT MPPT Algorithm, optimized MPPT efficiency higher than 99.9%, Dual MPPT, asymmetric, compatible with different system configurations, maximum Efficiency 98.0%, european efficiency of 97,6%, a Wide input voltage range (150 V - 1000 V), for a configuration is more flexible than the strings. Connect the inverter to the Wi-Fi network of the house. App to read the data in real-time.
€1,637.27
Out of stock
EASY INSTALLATION
- Without a transformer, with reduced size and weight
- Installation and maintenance quick thanks to connector systems
- MC4 connectors supplied with the inverter.
THE INTELLIGENT, EASY-TO-USE
- Chip RTC with independent built-in data storage capacity equal to 25 years
- Integrated LCD Display, with graph of production daily / monthly / yearly
- Interfaces RS-232 integrated with Wi-Fi module, for a better communication
- Monitoring system free accessible online
- Smart management in local or remote via PC, iOS and Android devices
- Automatic adjustment of active power/reactive output network.
SAFE AND RELIABLE
- Installation both indoor and outdoor use thanks to the IP65 degree of protection
- Aluminium body for better heat dissipation and greater resistance to corrosion
- Disconnect integrated DC side
- Natural convection cooling.
DC INPUT
- Maximum power DC 12000 W
- Maximum voltage DC 1000 V
- Voltage Range MPPT 160-900 V
- Rated voltage DC 600 V
- Starting voltage of 180 V
- Minimum voltage DC 150 V
- Input current maximum DC 22 / 11
- Number of DC inputs per MPPT 2/1
- Number of MPPT 2
- Integrated DC disconnector.
AC OUTPUT
- Rated power AC 10000 W
- Maximum power AC 10000 W
- Rated current AC 14.5 TO
- Maximum current AC 15.9 A
- Rated voltage AC / Range 3 / N / PE, 220 / 380v, 230 / 400 V, 240 / 415 V; 180 V - 280 V / 312 V - 485 V
- Mains frequency / Range 50Hz, 60Hz / ±5Hz
- Power factor
- cos ? 0.9 capacitive ~ 0.9 inductive
- Total harmonic distortion < 3%
- Connection three-Phase 3L + N + PE.
PERFORMANCE
Maximum efficiency 98.0 %euro Efficiency 97.6 %Accuracy MPPT > 99.9 %.
GENERAL INFORMATION
- Topology Without transformer
- Night-time consumption < 0.6 W
- Power consumption in standby mode < 10 W
- Range of temp. in operation -25 °C to + 60 °C (from 45 °C to 60 °C with derating)
- Cooling method natural Convection
- Environmental humidity 0% to 100% without condensation
- Altitude Over 2000 m (without derating)
- Noise < 29 dBA
- Overvoltage category II (input DC) III (output AC)
- Degree of protection IP65 (indoor and outdoor Installation)
- Mounting Bracket fixing to the wall
- Dimensions (H x w x d) 530 x 355 x 200 mm
- Net weight 23.0 kg
- Warranty 5 Years (standard) / 10 Years (optional).
INTERFACE
- Connect the AC plug Connector
- DC connection MC4 / H4
- LCD Display 3.5 inch, backlight
- LED (3 Lights)
- Display language Italian / English / Spanish
- Datalogger and RS-232 communication / Wi-Fi / RS-485.
There are no reviews
Data sheet
- Type: Inverter
- Power: 6 to 10KW
- MPPT: 2
- Connection: Three-phase
