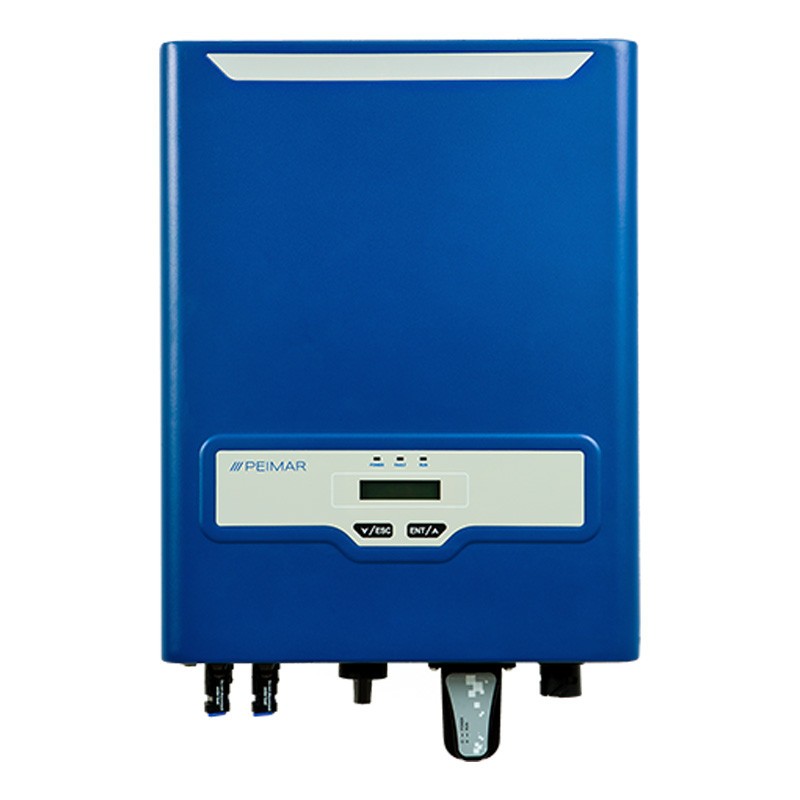

Peimar 1KW single-phase photovoltaic inverter with disconnecting switch PSI-J1000-TL
492 PSI-J1000-TL
Single-phase photovoltaic inverter Peimar Mirus Line 1KW with integrated DC disconnector, 1 MPPT, optimal solution for residential installations. Optional Wifi to add board. MPPT efficiency greater than 99.5%, Warranty 5 years, expandable directly with the manufacturer up to 10 years!
Compatible with small installations from three modules, MC4 connectors supplied with the inverter.
€384.01
Out of stock
FLEXIBLE AND EFFICIENT
Optimized MPPT algorithm, MPPT efficiency greater than 99.5% Maximum efficiency of 97.2%, European efficiency of 96.7% Wide input voltage range (50 V - 450 V), compatible with small systems of three modules or more Improved generating capacity with reduced derating at high temperatures
EASY INSTALLATION
Transformerless, with reduced size and weight (5.6 kg) Quick installation and maintenance thanks to plug-in connection systems MC4 connectors supplied with the inverter
INTELLIGENT AND EASY TO USE SYSTEM
Built-in independent RTC chip, with 25 years of data storage capacity Built-in RS-232 interfaces with optional Wi-Fi module for better communication Free monitoring system accessible online Intelligent local and remote management via PC, iOS and Android devices Automatic adjustment of active/reactive power delivered to the network SAFE AND RELIABLE Indoor and outdoor installation thanks to IP65 protection Aluminium housing for better heat dissipation and increased corrosion resistance Integrated DC side disconnect switch Natural convection cooling.
SAFE AND RELIABLE
- Indoor and outdoor installation thanks to IP65 protection rating
- Aluminum housing for better heat dissipation and increased corrosion resistance
- Integrated disconnector on DC side
DC INPUT
- Maximum DC power 1200 W
- Maximum DC voltage 450 V
- MPPT voltage range 60-425 V
- Nominal DC Voltage 360V
- Start Voltage 70V
- Minimum DC Voltage 50V
- Maximum DC input current 11A
- Maximum Short Circuit Current 13.2 A
- Number of DC Inputs for each MPPT 1
- Number of MPPT 1
- Integrated DC disconnect (DC21B)
AC OUTPUT
- Nominal AC power 1000W
- Maximum AC power 1100W
- Nominal AC Current 4.3A
- Maximum AC current 4.8A
- Nominal AC voltage / Range 220V, 230V, 240V / 180 - 280V
- Mains frequency / Range 50Hz, 60Hz / ±5Hz
- Power factor [cos φ] > 0.99 at full load
- Total harmonic distortion < 3% Total harmonic distortion
- Total harmonic distortion Single-phase 1L + N + PE
Efficiency
- Maximum efficiency 97.1 %.
- European efficiency 96.6
- MPPT accuracy > 99.9 %.
Features:
- Transformerless topology
- Night consumption < 0.2 W
- Standby consumption 6W
- Operating temperature range -25 °C to + 60 °C (45 °C to 60 °C with derating)
- Cooling method Natural convection
- Ambient humidity 0% to 100% non-condensing Altitude
- Altitude Up to 2000 m (without derating)
- Noise < 15 dBA
- Overvoltage category II (DC input), III (AC output)
- Degree of protection IP65 (Indoor and outdoor installation)
- Mounting Wall mounting bracket
- Dimensions (H x W x D) 315 x 260 x 120 mm
- Net Weight 5.6 Kg
Interface
- AC connection Plug connector
- MC4 / H4 DC connection
- LCD (16 x 2 characters, backlight)
- LED (3 Lights)
- Display language Italian / English / Spanish
- RS-232 Communication Ports
Protection
- Integrated Internal Overvoltage Protection
- Integrated DC Insulation Monitoring
- Integrated DCI monitoring
- Integrated GFCI Monitoring
- Integrated Grid Monitoring
- AC Short Circuit Protection Integrated
- Thermal protection Integrated
- AFD islanding protection
There are no reviews
Data sheet
- Type: Inverter
- Power: 1 to 5KW
- MPPT: 1
- Connection: Single-phase
