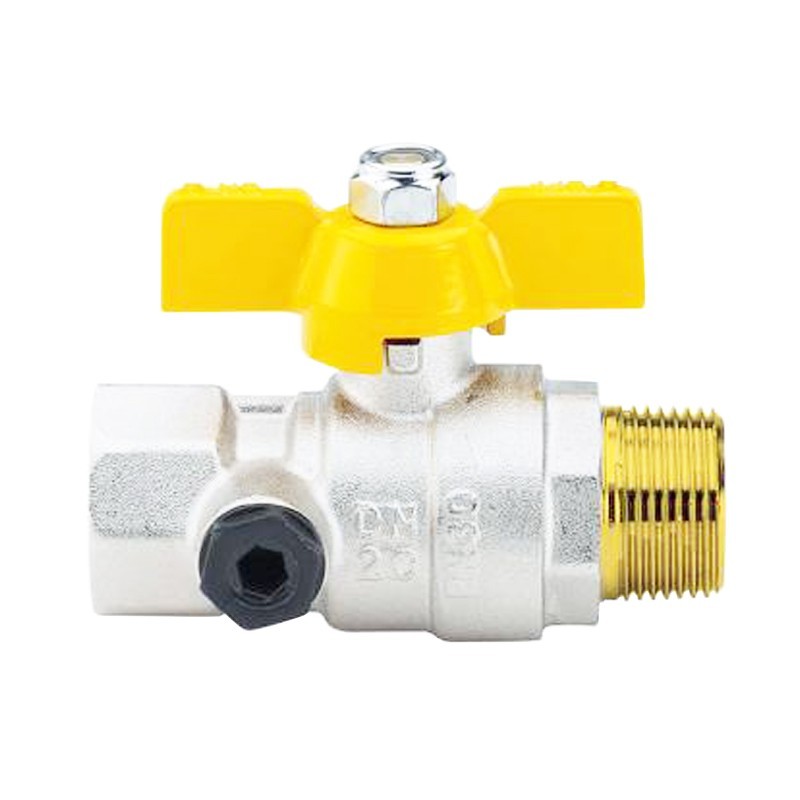

Ball valve for Gas Enolgas Top Test M/F 3/4 with butterfly S1438N35
ENO S1438N35
8010660119723
Ball valve for fuel Gas Enolgas Top Test, Female/Male, size 3/4", with t-handle yellow, nickel plated, with grip pressure by 1/4.
€12.77
Items Available: 65
: 11
Ball valves for gas series TOPTEST are approved to EN 331. Have obtained official approvals for use with gas in various countries.
Threaded ends UNI EN 10226.
Loans
Fuel Gas: town gas (1st family) - natural gas (2nd family) - liquid gas (3rd family).
The ball valves TOPTEST are also suitable for use with hot and cold water, compressed air, oils eidrocarburi in general.
Operating pressures:
- For fuel gas max 5 MOP.
- For other uses from PN 40 (1/2") to PN 30 (1").
- See pressure/temperature diagram.
- The leakage tests are in accordance with the norm uni en 331.
.
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- System: Gas
- Connections: 3/4 inches
