Enolgas Flush-mounted ball valve F/F 3/4 with brass cap S0162C05

Enolgas
ENO S0162C05 8010660002438

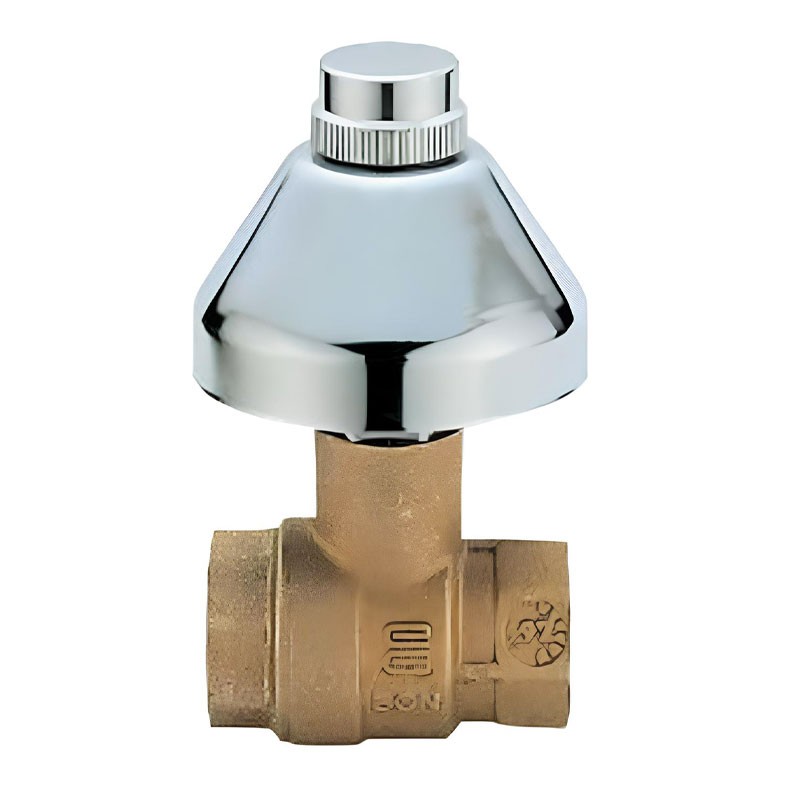

Flush-mounted ball valve Enolgas with full bore and cap, chrome-plated, with the following features:

  • Connection: Female/Female 3/4 inch

  • Bore: Full

  • Body material: Chrome-plated brass

  • Nominal pressure: 25 bar

  • Compatible fluid: Water, compressed air, oils, hydrocarbons

  • Installation: Flush-mounted

Do you have questions about this product or did you not find what you were looking for? Ask us!
Enolgas Flush-mounted ball valve F/F 3/4 with brass cap S0162C05
€13.75
€13.75

€13.75
Tax included
Calculate shipping cost

€13.75

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Flush-mounted ball valve reliability and sealing for flush-mounted systems

The Enolgas ball valve is specifically designed for flush-mounted installation, in civil and industrial systems where secure and practical fluid flow control is required. With female/female 3/4 inch connections and full bore, it ensures optimal flow without significant pressure loss.

Durable and versatile: for water, compressed air, oils and hydrocarbons

Thanks to the chrome-plated brass construction and the quality of the internal mechanism, the valve is suitable for multiple applications, including:

  • Hot and cold water hydraulic systems

  • Compressed air systems

  • Oil and hydrocarbon conduits (subject to chemical compatibility verification)

For specific uses, it is always recommended to consult the chemical compatibility tables of the materials.

High-quality technical specifications

The valve supports a nominal operating pressure of PN 25 and can operate in a temperature range from –10°C to +90°C, maintaining perfect sealing. The threads at the ends are made according to the UNI ISO 228 standard, ensuring perfect compatibility with fittings and pipes.

Cap design: ideal for clean and tidy installations

The model is equipped with a protective cap for a more aesthetic finish and is particularly suitable for applications in domestic environments or spaces where a neat and discreet appearance of the interception point is required.

Ideal applications

  • Flush-mounted plumbing systems

  • Compressed air distribution systems

  • Oil and hydrocarbon pipelines (check compatibility)

  • Domestic and commercial environments where aesthetic cleanliness is required

Data sheet

Type:
Ball valves
Connection:
F/F
System:
Water
Connections:
3/4 inches
