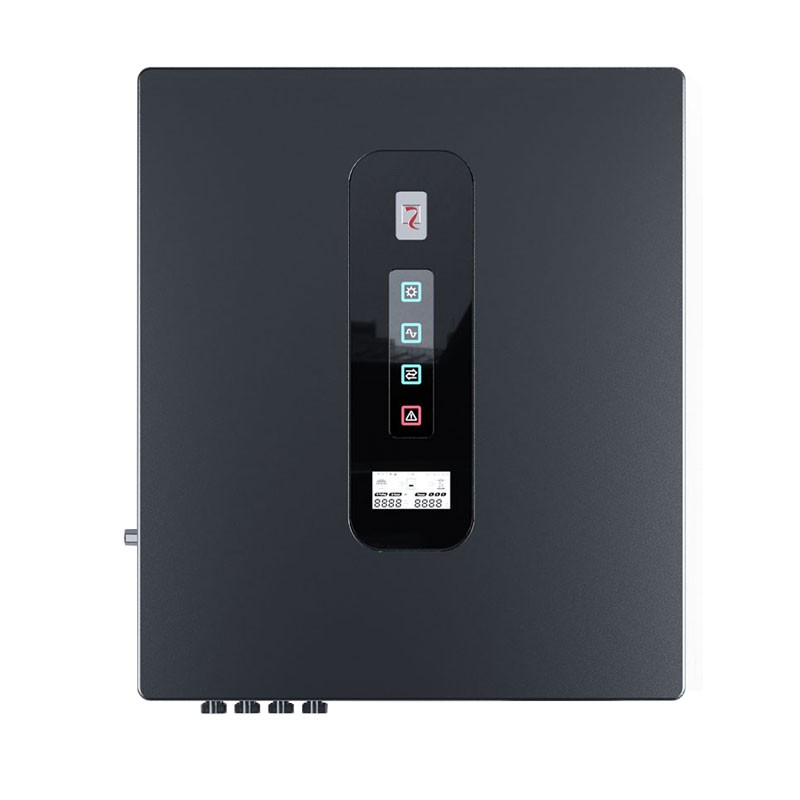

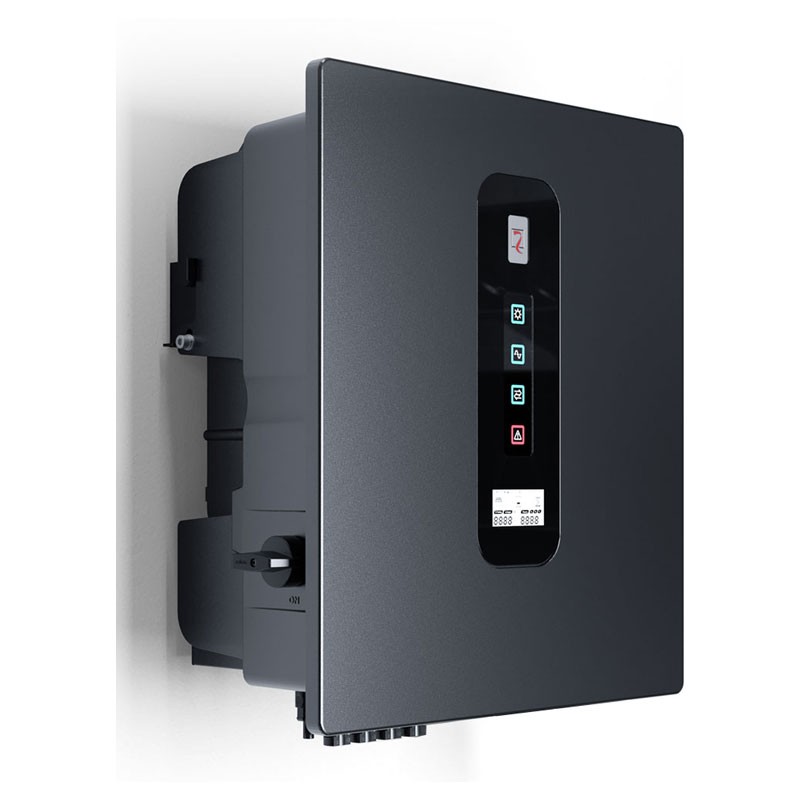

Riello RS20.0T 20KW Three-Phase Photovoltaic Inverter 2MPPT 6PS320KC

Riello
Riello
RST 6PS320KC

Riello RS20.0T NEW photovoltaic inverter with the following characteristics:



  • AC active power (nominal) 20000 W
  • 2 MPPT
  • Built-in Wi-Fi and Bluetooth communication
  • MPPT operating voltage range
  • Maximum string current up to 20 A.
  • PV configuration up to 130%.
  • Aluminum case with IP66 protection.
  • LCD display and status LEDs
Do you have questions about this product or did you not find what you were looking for? Ask us!
Riello RS20.0T 20KW Three-Phase Photovoltaic Inverter 2MPPT 6PS320KC
€2,931.57
€2,931.57

€2,931.57
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€2,931.57

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • transformerless
  • maximum efficiency up to 98.20%
  • European efficiency up to 97.70%
  • IP65 degree of protection for installation in
    outdoors
  • redundant control and protection devices
  • wide MPPT range
  • integrated dual-channel Wi-Fi
  • convection cooling technology
  • LED status display + LCD divided into data sections



Features:



EFFICIENCY:

  • Maximum efficiency 98.00%
  • European efficiency 97.50%.

INPUT:

  • Maximum input voltage 1000 V
  • Rated input voltage 620 V
  • Maximum input current 2X15+2X15 a
  • Maximum short-circuit current 2X20 + 2X20
  • Starting voltage 180V
  • MPPT operating voltage range 160-1000V
  • Maximum number of PV strings 4 (2/2)
  • Number of MPPTs 2.

OUTPUT:

  • AC active power (nominal) 20000 W
  • Maximum apparent power AC 22000 VA
  • Max active power. AC (PF=1) 22000 W
  • Max AC output current 3 x 33.7 A
  • Nominal AC voltage 380 V/400 V/ 415V , 3W+N+PE
  • Rated mains frequency 50 Hz / 60 Hz
  • Mains frequency range 45 Hz 55 Hz / 55 Hz 65 Hz
  • Harmonics distortion (THDI) < 3% (rated power)
  • DC current injection < 0.5% In
  • Power factor > 0.99 rated power.

PROTECTIONS:

  • DC disconnect Si
  • Anti-island protection Yes
  • AC overcurrent protection Yes
  • Short-circuit protection Yes
  • DC pole reversal control Yes
  • Surge voltage protector (VDR) DC type II and AC type II
  • Ground fault detection Yes
  • String current detection Yes
  • Leakage current protection Yes.

GENERAL:

  • Type Transformerless
  • IP65 degree of protection
  • Self-consumption at night < 8 W
  • Forced cooling with speed-controlled fans
  • Operating temperature range -25 °C ÷ 60 °C
  • Relative humidity range 0 ÷ 100%
  • Maximum operating altitude 4000 m
  • Noise level < 30 dB (measured at 1m)
  • Dimensions (WxDxH) 398x190x460 mm
  • Weight 20.5 kg.

COMMUNICATION:

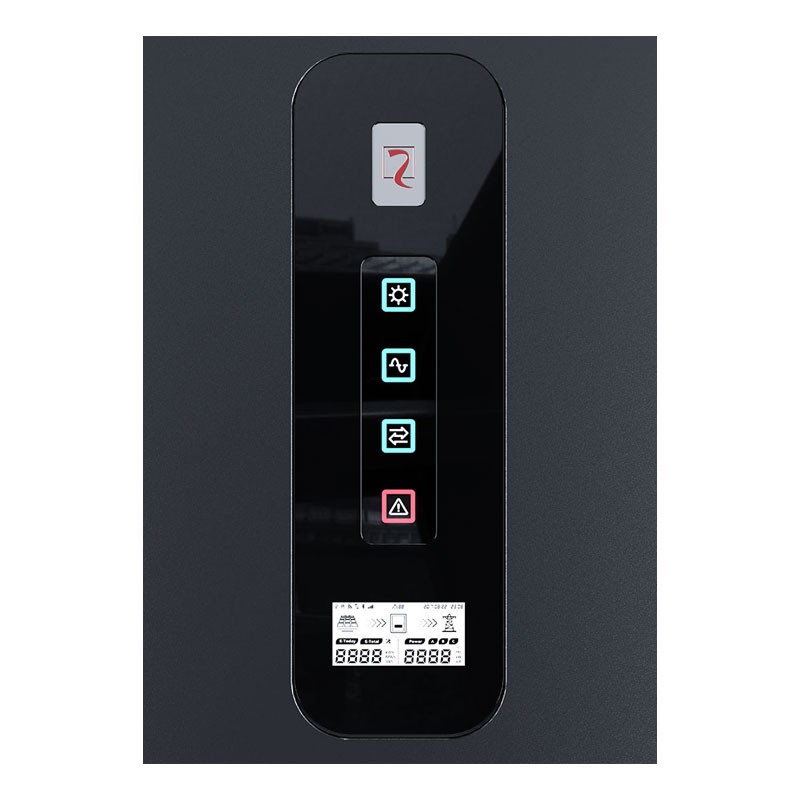

  • LED status display and LCD for data
  • Built-in Wi-Fi and Bluetooth communication
  • RS485 and Ethernet (optional not included)
  • APP monitoring, supervision portal.

CERTIFICATIONS:

  • Safety IEC62109-I, IEC62109-2
  • EMC EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4
  • Standards IEC 0-21, IEC 0-16, RD 1699, RD 661, RD 413, UNE 206006 IN, UNE 206007-1 IN, NTS Type A version 2.1, UNE 217002, RD 647, UNE 217001
  • Warranty 5 years (optional extension available).

There are no reviews

Data sheet

Type:
Inverter
Power:
16 to 20KW
MPPT:
2
Connection:
Three-phase
