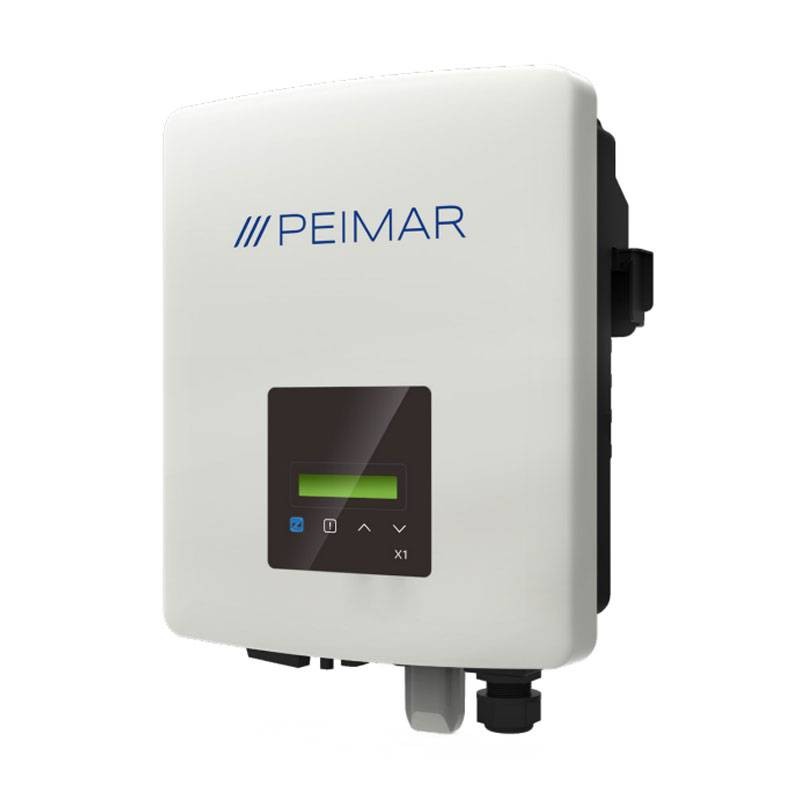

Peimar Photovoltaic Inverter 1.5KW 1MPPT Single Phase PSI-X1P1500-TL

Peimar
Peimar
492 PSI-X1P1500-TL

Peimar PSI-X1P Photovoltaic Inverter:

  • AC power rating 1500W
  • Number of MPPTs 1
  • DC disconnect switch (DC-PV2) integrated
  • Single-phase

Wi-Fi communication mode (PSI-X-H-WIFI-3.0 module not included to be purchased separately.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Peimar Photovoltaic Inverter 1.5KW 1MPPT Single Phase PSI-X1P1500-TL
€392.46
€392.46

€392.46
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€392.46

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • 1 MPPT
  • Compatible with Type M10 cells
  • Equipped with display For direct control

Features:

DC input:

  • Maximum DC power 2250 W
  • Maximum DC voltage 450 V
  • MPPT voltage range 50 - 430 V
  • Nominal DC voltage 360V
  • Start-up voltage 50V
  • Maximum DC input current 14 A
  • Maximum short-circuit current 16 A
  • Number of DC inputs for each MPPT 1
  • Number of MPPTs 1
  • DC disconnect switch (DC-PV2) Integrated

AC output:

  • Nominal AC power 1500 W
  • Maximum AC power 1650 VA
  • Nominal AC current 6.52 A
  • Maximum AC Current 7.2 A
  • Nominal AC voltage / Range 220 V, 230 V, 240 V / 180 - 280 V
  • Mains frequency / Range 50 Hz, 60 Hz / ± 5Hz
  • Power factor
  • cos ? 0.8 capacitive - 0.8 inductive
  • Total harmonic distortion < 3 %
  • Connection Single-phase 1L + N + PE

Elective parameter measurement:

  • PSI-X-1PMETER-ZI compatible meter (supply not included)
  • Functionality Measurement of grid load power (self-consumption) and power export limit function
  • Meter - inverter connection cable 10 m connection cable and RJ45 plug (supplied with meter PSI-X-1PMETER-ZI) - For longer lengths (maximum 100 m) use CAT5 data cable (supply not included)

Yield:

  • Maximum efficiency 98.0%
  • European efficiency 96.0%
  • MPPT accuracy 99.9%

General information:

  • Topology Transformerless
  • Standby consumption (overnight) 0 W
  • Operating temperature range -25°C to +60°C (derating from +45°C)
  • Cooling method Natural convection
  • Ambient humidity 0 to 100 % without condensation
  • Altitude Up to 2000 m
  • Noise < 25 dB
  • Overvoltage category II (DC input), III (AC output)
  • Degree of protection IP66
  • Mounting Wall mounting bracket
  • Dimensions (H x W x D) 267 x 328 x 116 mm
  • Net weight 6.0 kg
  • Warranty 10 years

Interface:

  • AC connection Plug connector
  • MC4 / H4 DC connection
  • LCD screen
  • Communication ports Dongle (USB port for Wi-Fi/Ethernet module) - Upgrade (USB port for firmware upgrade) / RS485 (RJ45 port for external communication)
  • Wi-Fi communication mode (PSI-X-H-WIFI-3.0 module not included) - LAN (optional PSI-X-H-ETH-3.0 module not included)

Protections:

  • Integrated overvoltage protection
  • Integrated overcurrent protection
  • Integrated DC insulation monitoring
  • Integrated GFCI monitoring
  • Integrated DCI monitoring
  • Integrated residual current protection

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
MPPT:
1
Connection:
Single-phase
