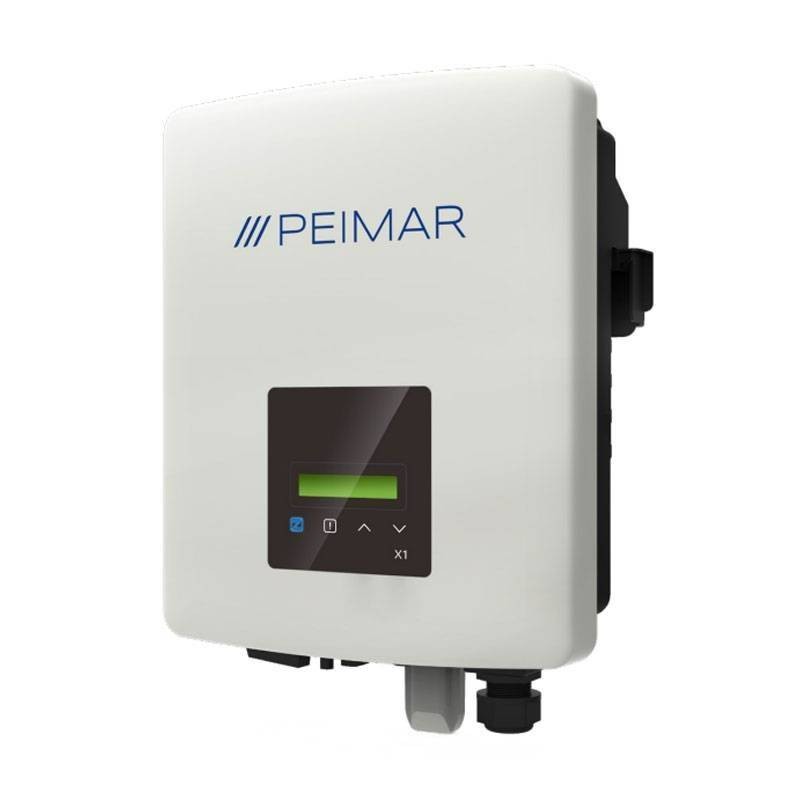

Advantages:

• 1 MPPT
• Compatible with Type M10 cells
• Equipped with display For direct control



Features:



DC input:

• Maximum DC power 1100 W
• Maximum DC voltage 450 V
• MPPT voltage range 45 - 430 V
• Nominal DC voltage 360V
• Startup voltage 50V
• Maximum DC input current 14 A
• Maximum short-circuit current 16 A
• Number of DC inputs for each MPPT 1
• Number of MPPTs 1
• DC disconnect switch (DC-PV2) Integrated



AC output:

• Rated AC power 1100 W
• Maximum AC power 1210 VA
• Rated AC current 4.78 A
• Maximum AC Current 5.3 A
• Rated AC voltage / Range 220 V, 230 V, 240 V / 180 - 280 V
• Mains frequency / Range 50 Hz, 60 Hz / ± 5Hz
• Power factor cos 0.8 capacitive - 0.8 inductive
• Total harmonic distortion < 3 %
• Connection Single-phase 1L + N + PE



Elective parameter measurement:

• PSI-X-1PMETER-ZI compatible meter (supply not included)
• Functionality Measurement of grid load power (self-consumption) and power export limit function
• Meter - inverter connection cable 10 m connection cable and RJ45 plug (supplied with meter PSI-X-1PMETER-ZI) - For longer lengths (maximum 100 m) use CAT5 data cable (supply not included)



Yield:

• Maximum efficiency 98.0%
• European efficiency 95.5%
• MPPT accuracy 99.9%



General information:

• Topology Transformerless
• Standby consumption (overnight) 0 W
• Operating temperature range -25°C to +60°C (derating from +45°C)
• Cooling method Natural convection
• Ambient humidity 0 to 100 % without condensation
• Altitude Up to 2000 m
• Noise < 25 dB
• Overvoltage category II (DC input), III (AC output)
• Degree of protection IP66
• Mounting Wall mounting bracket
• Dimensions (H x W x D) 267 x 328 x 116 mm
• Net weight 6.0 kg
• Warranty 10 years



Interface:

• AC connection Plug connector
• MC4 / H4 DC connection
• LCD screen
• Communication ports Dongle (USB port for Wi-Fi/Ethernet module) - Upgrade (USB port for firmware upgrade) / RS485 (RJ45 port for external communication)
• Wi-Fi communication mode (optional PSI-X-H-WIFI-3.0 module to be purchased separately) - LAN (optional PSI-X-H-ETH-3.0 module not included)



Protections:

• Integrated overvoltage protection
• Integrated overcurrent protection
• Integrated DC insulation monitoring
• Integrated GFCI monitoring
• Integrated DCI monitoring
• Integrated residual current protection
