Disano RODI 832 recessed Led Panel 39W 4000K 4212lm IP20 60x60 60x60 15023200
DIS 15023200
8012952159103
Disano RODI 832 Led Panel is the ideal solution for modern, efficient and uniform general lighting. Perfect for offices, commercial and public spaces, it offers high light output, long life and an ultra-thin design, with the following features:
-
Power: 39 watts
-
Supply voltage: 220-240V AC
-
Color temperature: 4000K (natural light)
-
Luminous flux: 4212 lumens
-
Electronic driver: Included
-
Degree of protection: IP20
-

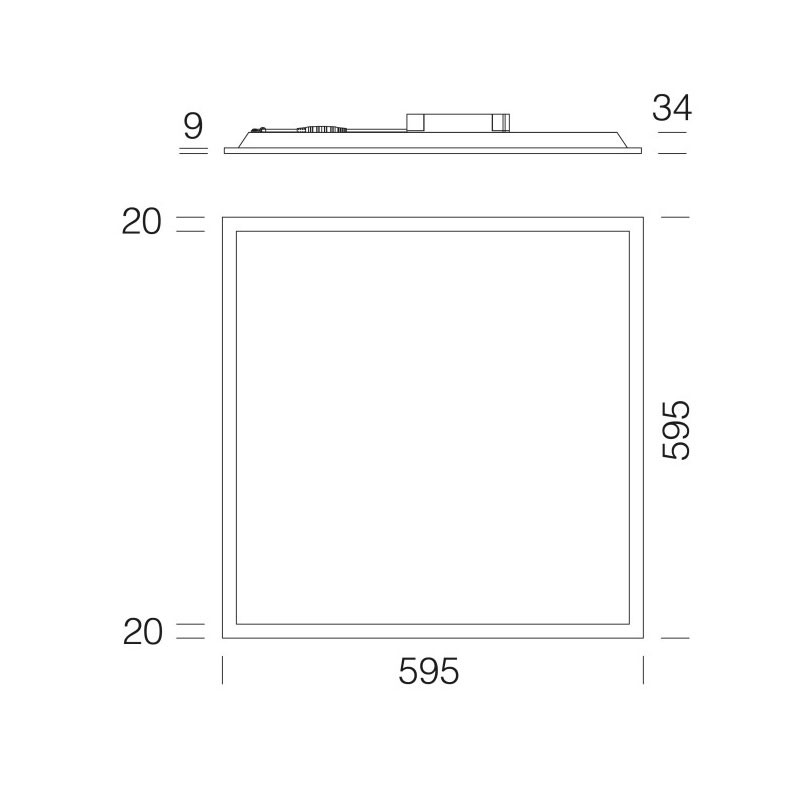

Dimensions: 595x595x34mm
-
Color: White
€27.08
Items Available: 2878
: 1658
Frequently bought together
Disano LED panel: uniform light, slim design and easy installation
Powerful and uniform illumination for every room
The Disano RODI 832 LED panel uses high-efficiency backlight technology to provide diffuse and even light output, with a power output of 39W and an output flux of 3710 lumens. The natural 4000K light is perfect for creating comfortable and productive environments.
It is an ideal choice for:
- Offices
- Shopping centers
- Common areas
- Stairways and hallways
- Bars and restaurants
- Airports and public environments
Slim design and quality materials
The panel features an ultra-thin profile (only 34 mm thick) and discreet aesthetics, fitting perfectly into any environment. It is constructed with:
- Sheet steel body
- White painted aluminum frame
- Opal technopolymer diffuser with high transmittance, ensuring effective light diffusion without glare
Quick and easy installation
CLD CELL's quick wiring system allows for simple and secure connection without the need to open the luminaire. It is suitable for mounting on suspended ceilings with 60x60 cm crossbeams.
Technical Specifications LED Recessed Panel
| Feature | Value |
|---|---|
| Power | 39 watts |
| Voltage | 220/240V AC |
| Color temperature | 4000K (natural light) |
| LED luminous flux | 4212 lumens |
| Luminaire luminous flux | 3710 lumens |
| Color rendering index (CRI) | ≥80 |
| Luminous efficiency | 148 lm/W |
| Service life (L80B20) | 35,000 hours |
| Wiring | CLD CELL - quick, no opening required |
| Degree of protection | IP20 / IK06 |
| Protection class | Class II - double insulation |
| Length | 595 mm |
| Width | 595 mm |
| Height | 34 mm |
| Body material | Sheet steel |
| Frame | Aluminum |
| Diffuser | High transmittance prismatized technopolymer |
| Color | White |
Facile da installare. Prodotto già usato
Molto soddisfatto dell'acquisto, illuminazione diffusa, potente e per niente fastidiosa.
Ottimo prodotto. Come da descrizione ...
Data sheet
- Type: Led Panels
- Staining: Natural
- Shape: Square
- Degree of protection: IP20
- Model: Collection
- Watts: 31 to 40W
- Dimmable: No
- Colour temperatures: 4000 Kelvin
