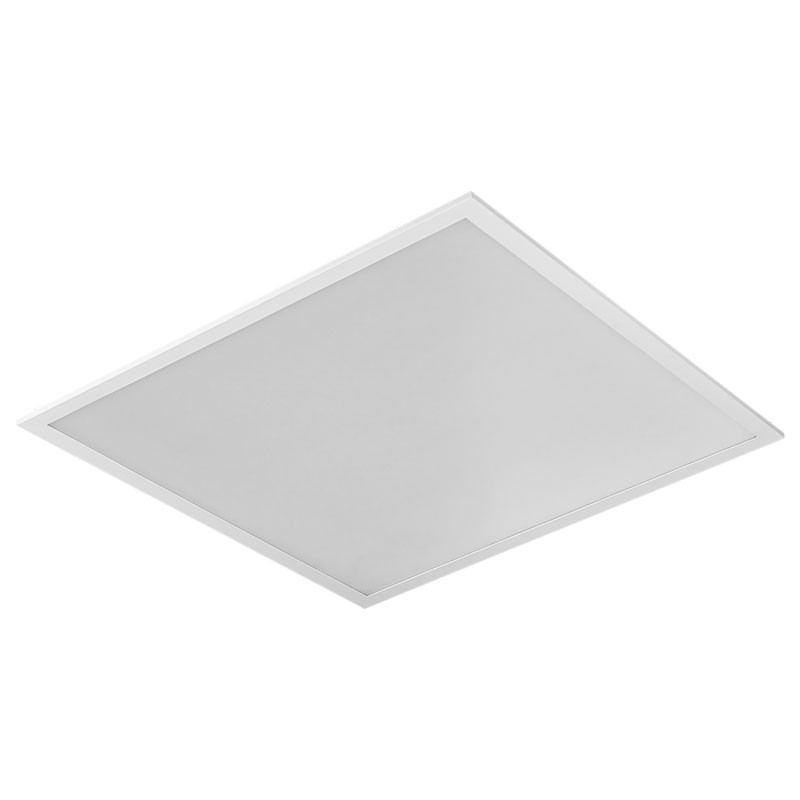

Opple Recessed Led panel 34W 4000K IP54 60x60cm 542004074600
OPP 542003113400
6941497774774
Led Opple Slim Performer UGR19 G6 recessed panel with the following features:
- Power: 34 Watt
- Power supply type: AC/DC
- Nominal DC voltage: 180/280V
- Nominal voltage: 220/240V
- Frequency: 50/60 Hz
- Power factor: 0.9Max
- Colour temperature: 4000K (natural light)
- Maximum inrush current: 40 Amps
- Lamp luminous efficacy: 120 lm/W
- Degree of protection IP54 (lamp compartment)
- Degree of impact resistance: IK03
- Degree of protection recessed part: IP20
- Insulation class: II
- Dimmability: ON/OFF
- Recessed, pendant and surface mounting possible
- High-quality materials, suitable for office applications (UGR19)
Opple Recessed Led panel 34W 4000K IP54 60x60cm 542004074600
€59.66
€59.66
Tax included
Tax included
Pay in installments with Klarna
Items Available: 107
Other technical data:
- Max. number of luminaires per circuit breaker B16: 12
- Max. number of luminaires per circuit breaker C16: 30
- Max. number of luminaires per circuit breaker C13: 9
- Max. number of luminaires per circuit breaker C10: 7
- Glow wire test: 650°C
- Risk group (EN 62471): RG0
- LED CRI RA: >90
- Equivalent: TL 4x18W
- Effective luminous flux as per IEC 62722-2-1: 4080 lumen
- Colour uniformity (SDCM): 3
- Beam angle: 90 degrees
- Insulation class: II
- Glow wire test: 650°C
- Risk group (EN 62471): RG0
- Wired luminaire: yes
- Wiring type: Current-controlled LED service luminaire
- Driver failure rate (5000 hours): <1%.
- Cable length 230V: 1 metre
- Body colour: White
- Dimensions: Length: 595 mm - width 595 mm - height/depth: 25 mm
- Material of optics: Polymethyl methacrylate (PMMA)
- Cover material: Polystyrene (PS)
- Colour of finish: White RAL9003
- Average ambient temperature: 25°C
- Operating temperature: -10/+45°C
- Storage environment: -20/+50°C
There are no reviews
Data sheet
- Type:
- Led Panels
- Staining:
- Natural
- Shape:
- Square
- Degree of protection:
- IP54
- Model:
- Collection
- Watts:
- 31 to 40W
- Dimmable:
- No
- Colour temperatures:
- 4000 Kelvin
