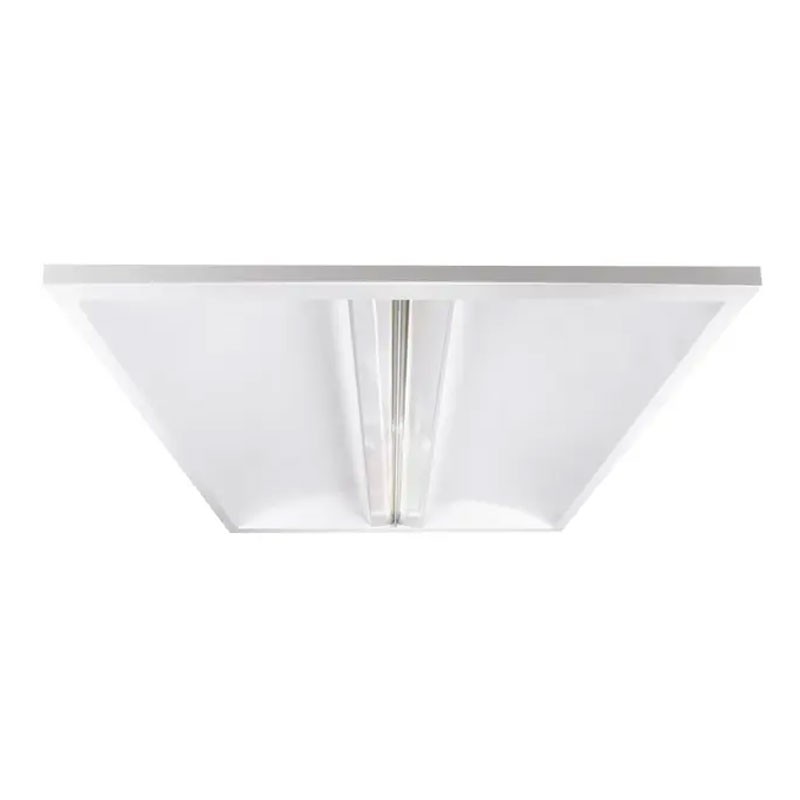

Beghelli LED Panel RTI 25W U19C90 ED4K 60x60 40151
BEG 40151
8002219757883
Beghelli LED Panel RTI 25W 60×60, 4000K, CRI>90, efficiency 142 lm/W. Microstructured diffuser, ceiling or frameless recessed installation. High light quality and eco-sustainable design.
- Power: 25 W
- Colour temperature: 4000 K
- High luminous flux (efficiency 142 lm/W)
- CRI > 90 for professional colour rendering
- LED driver type ED with constant current
- High-quality microstructured diffuser
- Ceiling or recessed installation without frame
- Optical protection rating IP40
- 104 integrated LEDs
- Photobiological risk RG0
- Colour stability SDCM3
- Eco-sustainable design (90% less plastic)
- Compatible with accessories 70100 (suspension) and 70039 (false ceiling)
€42.08
Items Available: 37
: 2
Frequently bought together
Beghelli LED Panel RTI professional for uniform and comfortable lighting
The Beghelli LED Panel RTI 25W 60×60 is designed for professional applications requiring high light quality, efficiency, and clean design. The microstructured diffuser offers both direct and indirect light emission, ensuring soft, uniform, and glare-free lighting.

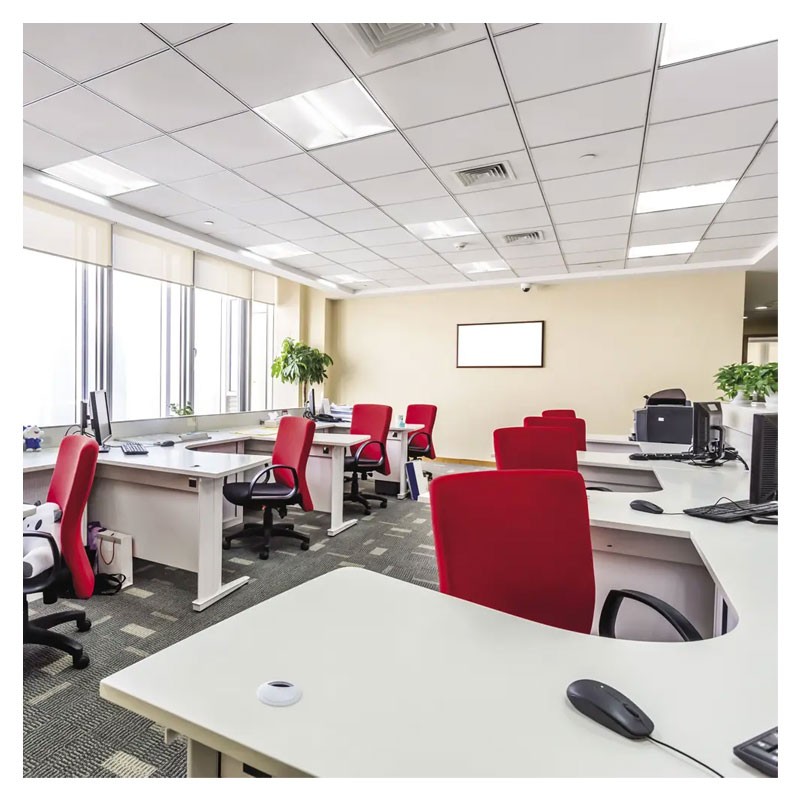

The 4000K colour temperature creates a natural light ideal for offices, schools, shops, clinics, and operational areas. The colour rendering index CRI > 90 ensures highly faithful colour quality, enhancing visual comfort and perception of environments.
Superior energy efficiency – 142 lm/W
With an efficiency of 142 lumens/Watt, the panel is among the most efficient solutions in its category, reducing energy consumption and providing powerful lighting with only 25 Watts of power consumption.
The efficiency class D still indicates optimized performance according to new European LED lighting standards.
Constant current ED driver and visual safety RG0
The panel uses a constant current ED driver that ensures:
- light stability
- no flicker
- longer LED lifespan
- electrical safety
The photobiological risk RG0 confirms total safety for eyes and skin even with prolonged exposure.
Versatile installation: ceiling or frameless recessed
The panel is equipped with an integrated universal bracket, allowing:
- ceiling installation, without the need for additional frames
- recessed installation, compatible with most 60×60 modular structures
Optional accessories are available to complete the installation:
- Suspension kit 70100 – for suspended mounting
- False ceiling kit 70039 – for integrated installation in modular panels
This versatility makes it suitable for new or renovation lighting projects.
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Part no. | 40151 |
| Power consumption | 25 W |
| Type of power supply voltage | AC |
| Power supply voltage | 230 V AC |
| Power supply voltage range | 207 V ÷ 253 V |
| Ambient temperature | -20 °C ÷ +40 °C |
| Insulation class | I |
| CCT – Light tone | 4000 K |
| Optical protection degree | IP40 |
| Number of LEDs | 104 |
| Output current (max) | 280 mA |
| Photobiological risk | RG0 |
| Colour stability | SDCM3 |
| CRI – Colour rendering index | > 90 |
| Driver type | ED |
| Ballast | For constant current LED |
| Efficiency | 142 lm/W |
| Energy efficiency class (source) | D |
| Equivalent power | 4 × 18 W |
| Frequency | 50–60 Hz |
| Glow wire resistance | 960 °C – 30 s |
| Inrush current | 4 A |
| Inrush transition time | 0 ms |
| Fixture flux | 3400 lm |
| Luminous flux (lifetime) | L70B10: 142,000 h L70B50: 199,000 h L80B10: 90,000 h L80B20: 100,000 h L80B50: 124,000 h L90B10: 50,000 h L90B50: 59,000 h |
| Marks | CE |
| UGR | 19 |
| INSTALLATION AND APPLICATIONS | |
| Environment | Indoor |
| Application | Offices, Commercial areas, Public spaces, Educational premises |

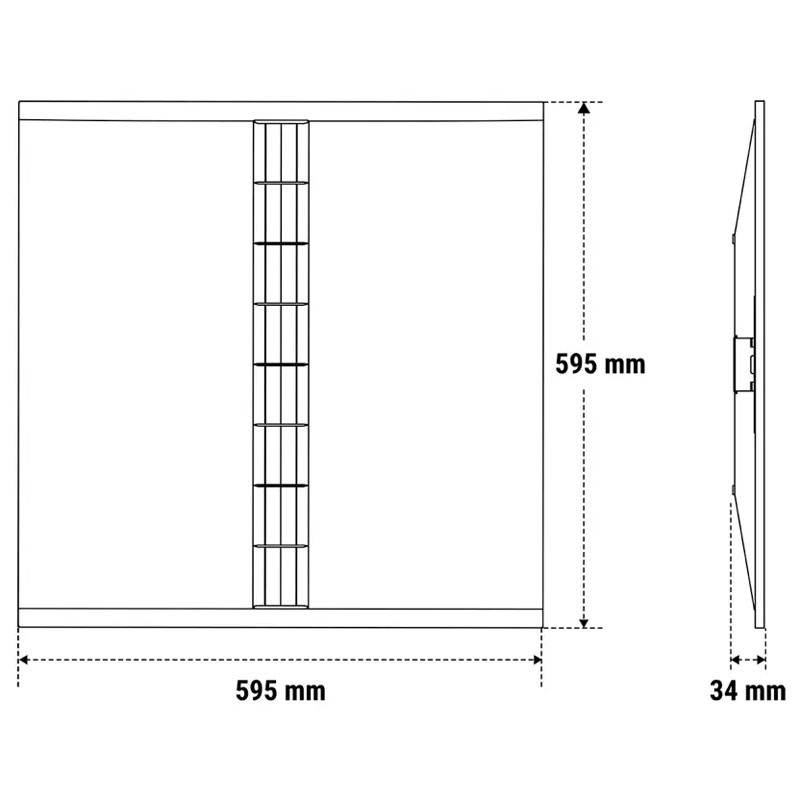

| MECHANICAL SPECIFICATIONS | |
| Height | 34 mm |
| Length | 595 mm |
| Width | 595 mm |
| Weight | 1.9 kg |
| Body material | Epoxy painted steel sheet |
| Body colour | White RAL 9003 |
| Optical material | Transparent PMMA thermoplastic |
| Power compartment protection degree | IP20 |
| IP protection degree | IP20 / IP40 |
| Grado di protezione IK | IK05 |
| CERTIFICATES AND STANDARDS | |
| Standards and certifications | UK SI 2021 No. 1095, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-2:2012, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2:2019 |
There are no reviews
Data sheet
- Type: Led Panels
- Staining: Natural
- Shape: Square
- Degree of protection: IP40
- Model: Collection
- Watts: From 21 to 30W
- Dimmable: No
- Colour temperatures: 4000 Kelvin
