Disano Creta LED Panel 30W 4000K UGR17 15024000
DIS 15024000
8012952174908

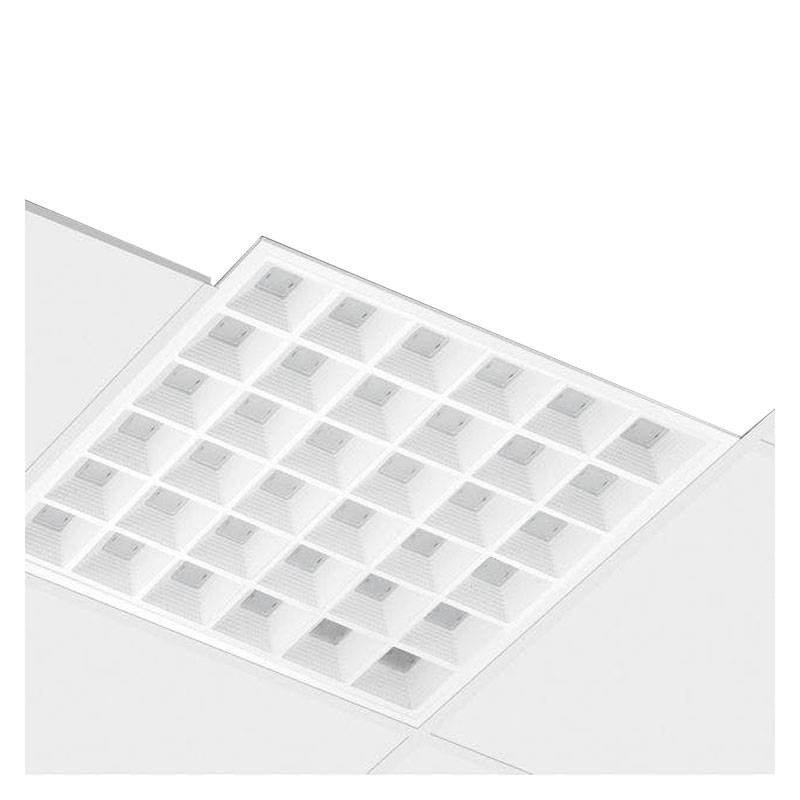

Disano LED panel Creta model:
- Total luminaire power 30W
- Natural light 4000K
- UGR<17 (in all situations) according to EN 12464 standards
- Outgoing luminous flux 3966 lumens
- CRI 80
- Luminous efficiency 132 lm/W
Ceiling light complete with external driver; it can be easily housed in the false ceiling.
KIT Disano ceiling frame for LED panel 60X60cm code 99803500 not included to be purchased separately.
€35.90
Items Available: 112
: 2
Frequently bought together
Features:
- Sheet steel body and aluminum frame
- Body color White
- Secondary lens optics made of high-performance, anti-yellowing PMMA
- Wiring code CLD
- Rated frequency 50 Hz
- AC voltage type
- Rated voltage 230 V
- Low flicker: luminaire with very low flicker: uniform light for greater visual safety
- Power factor 0.95
- Equipment-Equipment Ceiling light fixture complete with external driver; can be easily housed in the false ceiling
- LED light source
- Lumen maintenance Ta 25° (L) 80
- Failure Rate (Ta=25°C) (B) 20
- LED Rated Life - (h) 50000 hr
- Photobiological Risk RG0
- Reference Standards EN60598-1. Have degree of protection in accordance with EN60529.
- Markings - CE Certifications
- Electrical insulation Class II
- IP (l.v.) 40
- IP (v.a.) 20
- IK IK06

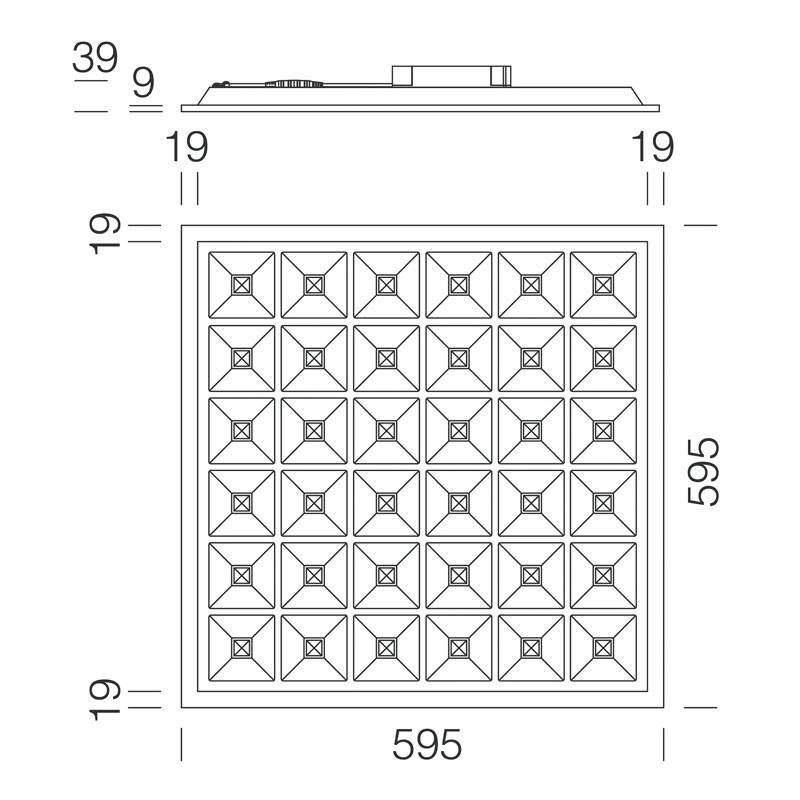

- Height 39 mm
- Width 595 mm
- Length 595 mm
- Net weight 1.68 kg
- Installation dimensions - width 590 mm
- Installation dimensions - length 590 mm
There are no reviews
Data sheet
- Type: Led Panels
- Staining: Natural
- Shape: Square
- Degree of protection: IP40
- Model: Collection
- Watts: From 21 to 30W
- Dimmable: No
- Colour temperatures: 4000 Kelvin
