Disano Rodi Led Panel 39W 4000K 3710 lm White 30x120 15023300
DIS 15023300
8012952165227
Disano Rodi LED panel, represents the perfect synthesis of slim design, diffused lighting and low power consumption. Designed for ceiling mounting on a T-shaped structure, it is ideal for offices, commercial spaces, schools and public environments, with the following features:
-
Power: 39 watts
-
Color temperature: 4000K (natural light)
-
Luminous flux: 3710 lumens
-
Materials: Sheet steel body, aluminum frame
-
Diffuser: High transmittance prismatized technopolymer
-
Quick wiring CLD: No need to open the luminaire
-
Degree of protection: IP40 (face), IP20 (power supply side)
-
Driver included
It is compatible with ceiling and suspension kits (cod. 99803600 and 99463100).
€38.89
Items Available: 284
: 70
Frequently bought together
Disano LED panel: uniform light, slim design and easy to install
Uniform and natural lighting for any environment
The Disano Rodi LED panel offers 4000K natural light, perfect for spaces that require visual comfort and natural color rendering. With a luminous efficacy of 148 lm/W and an output flux of 3710 lumens, it can cover large spaces with diffused, even illumination.
Slim, modern and functional design
The ultra-thin design (only 34 mm thick) and 30x120 cm rectangular shape make it discreet and easy to integrate into suspended ceilings. Quality materials ensure durability:
- Galvanized sheet steel body
- White painted aluminum frame
- Opal technopolymer diffuser for soft, glare-free light
Quick and easy installation
CLD quick wiring allows connection without having to open the luminaire, facilitating maintenance and reducing installation time. It is compatible with ceiling and suspension kits (cod. 99803600 and 99463100).
Technical Characteristics Disano Led Panel
| Feature | Value |
|---|---|
| Power consumption | 39W |
| Real luminous flux | 3710 lumens |
| Color temperature | 4000K |
| Color rendering index (CRI) | ≥80 |
| UGR | <22 |
| Luminous efficiency | 148 lm/W |
| Voltage | 220-240V AC |
| Frequency | 50-60 Hz |
| Insulation class | II |
| Impact resistance (IK) | IK06 |
| Degree of protection (IP) | IP40/IP20 |
| LED service life (L80B20) | 50,000 hours |

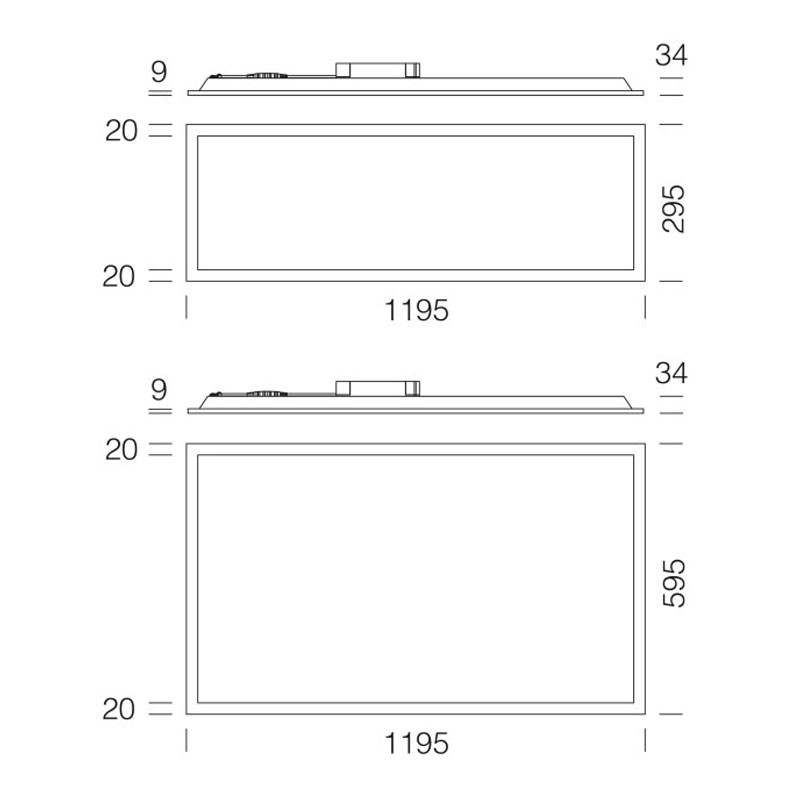

| Dimensions (W x D x H) | 1195 x 295 x 34 mm |
| Mounting | Recessed on T-shaped frame, compatible with ceiling and suspension accessories |
There are no reviews
Data sheet
- Type: Led Panels
- Staining: Natural
- Shape: Rectangular
- Degree of protection: IP43
- Model: Collection
- Watts: 31 to 40W
- Colour temperatures: 4000 Kelvin
