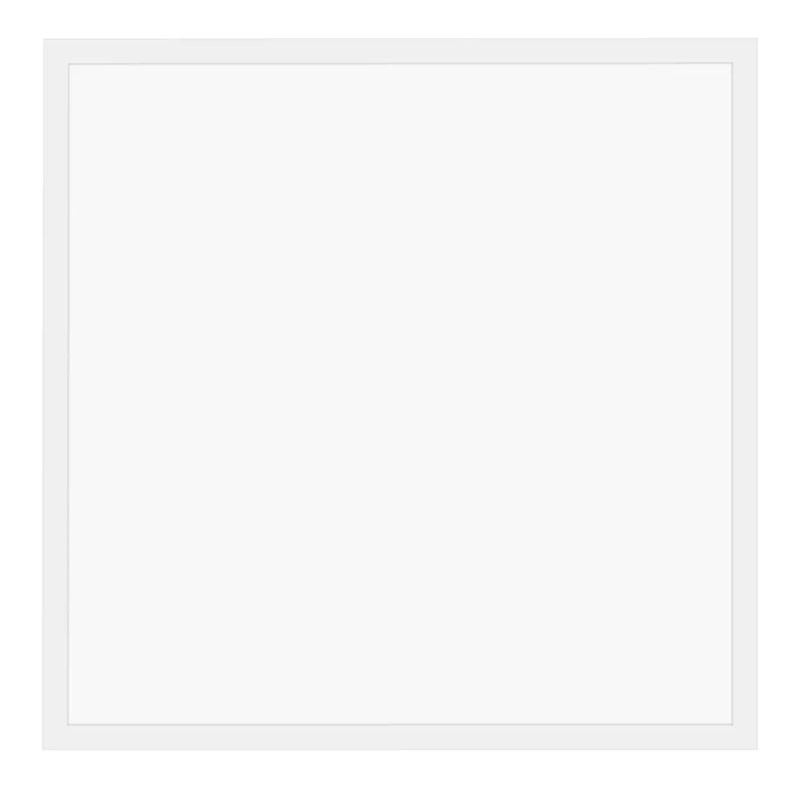

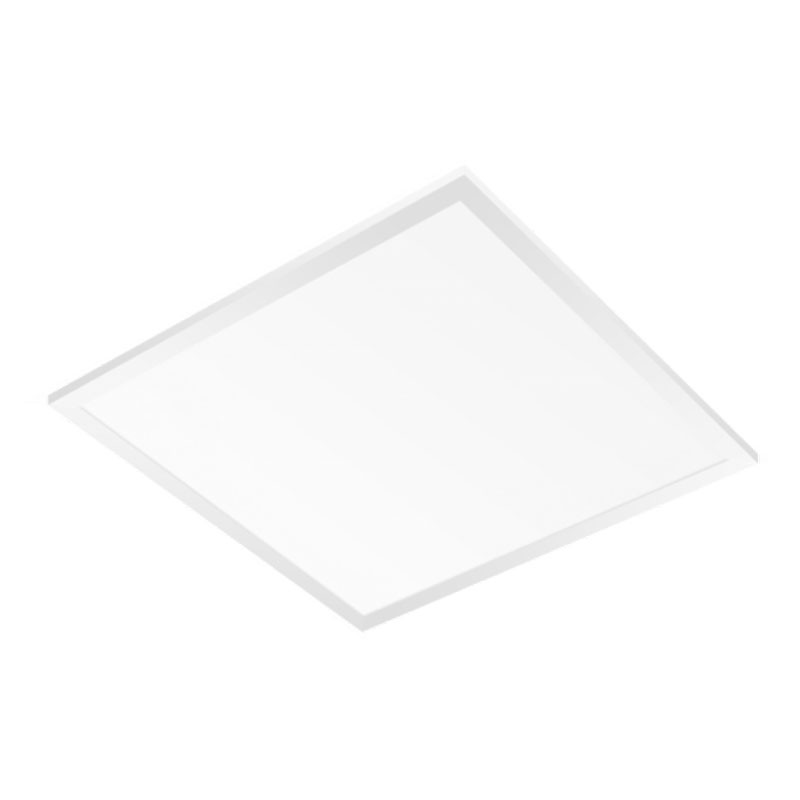

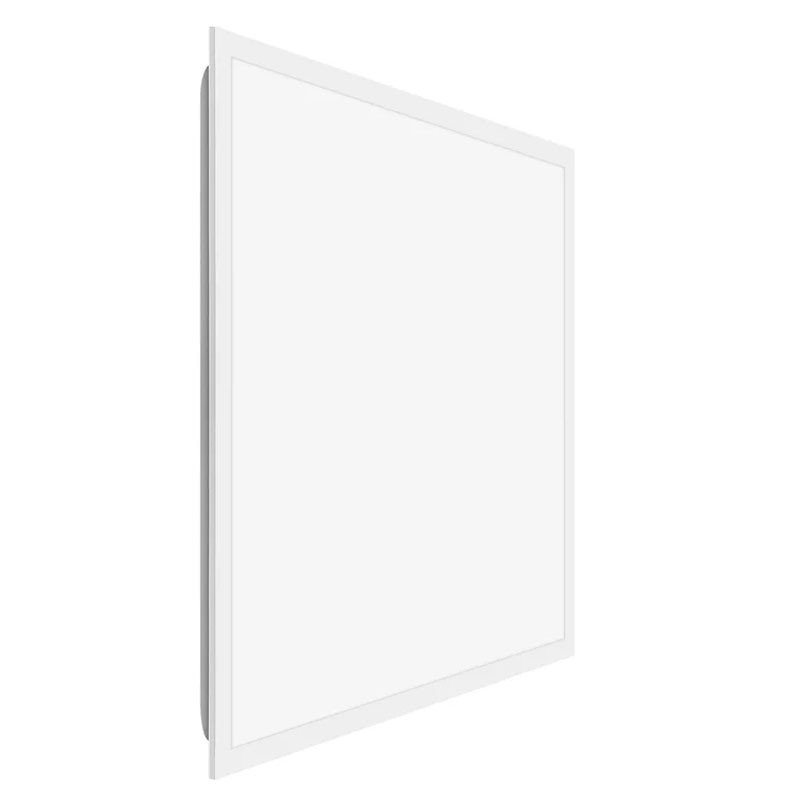

Ledvance Osram LED Panel 36W 3000K 60X60cm White PLECO60036830
LDV PLECO60036830G2
4099854187230
Ledvance Osram LED panel PL ECO 600 E 36W 830, with the following features:
- Nominal output 36.00 Watt
- Nominal voltage 220/240V
- Mains frequency 50 Hz
- Nominal current 170.000 mA
- Trigger current 0.17 A
- Power factor λ: > 0.90
- Total harmonic distortion: < 20
- Safety class: II
- Luminous flux 3600 lm
- Luminous efficiency 100 lm/W
- Colour temperature 3000 Kelvin (warm light)
- Non-dimmable
- Not adjustable
- Non-replaceable LED module
Ledvance Osram LED Panel 36W 3000K 60X60cm White PLECO60036830
€22.69
€22.69
Tax included
Tax included
Pay in installments with Klarna
Items Available: 27
Other technical characteristics:
- Colour rendering index Ra > 80
- No flicker: yes
- Flicker metric (Pst LM) <1
- Strobe effect metric (SVM) < 0.4
- Photobiological safety group EN62778: RG0
- Photobiological Safety Group EN62471: RG0
- Beam width: 120°
- Length 595.00 mm
- Height 32.00 mm
- Width 595.00 mm
- Product colour White
- Housing colour White
- Body material Aluminium
- Cover material Polyester (PS)
- Material light-emitting surface Polystyrene
- Glow wire test (IEC 60695-2-12) 650 °C
- Lamp mercury content 0.0 mg
- Ambient temperature 0...+40 °C
- Storage temperature -20...+80 °C
- Connection type 5-pole screwless terminal (L,N,PE,DA+,DA-)
- Degree of protection IP40/IP20
- IK index (shock resistance) IK02
- Mounting position Ceiling
- Current limit inrush Th50 600 µs
- Max. no. of lumens on switch B16 A: 12
- Max. no. of lumens on switch C10 A: 13
- Max. number of luminaires per circuit breaker C16: 21
- Application environment: indoors
- Length for mounting 575 mm
- Width for mounting 575 mm
- Mounting depth 50 mm
- With light source Yes
- Service life L70/B50 @ 25 °C 50000 h
- Service life L80/B10 @ 25 °C 30000
- Service life L90/B10 @ 25 °C 10000 h
- Number of switch-on / switch-off cycles 50000
There are no reviews
Data sheet
- Type:
- Led Panels
- Staining:
- Warm
- Shape:
- Square
- Degree of protection:
- IP20
- Model:
- Collection
- Watts:
- 31 to 40W
- Dimmable:
- No
- Colour temperatures:
- 3000 Kelvin
