Osram Ledvance Recessed Led Panel 33W 4000K 3630 lm White PLCMP120033840
LDV PLCMP120033840
4099854017162
Osram Ledvance PL COMP Led Panel, high light quality, energy efficiency and visual comfort, with the following characteristics:
-
Power: 33 watts
-
Supply voltage: 220/240V
-
Luminous flux: 3630 lumens
-
Color temperature: 4000K (natural light)
-
Emission angle: 120 degrees
-
Degree of protection: IP40/IP20
-
Dimensions: 1195x295x34 mm
-
Recessed depth: 50 mm
-
Frame color: White
-
Not Dimmable
€48.90
Items Available: 33
: 30
Led panel efficiency and visual comfort in a single fixture
Ideal solution for professional interior lighting where high light quality, energy efficiency and visual comfort are required. With a color temperature of 4000 K (neutral/cool white) and color rendering Ra > 80, it provides natural light, perfect for working and commercial environments.
Flicker-free and consistent lighting performance
Thanks to the optimized electronic ballast, the panel ensures visible flicker-free light (flicker <1, SVM < 0.4), improving visual health and reducing eye fatigue, especially in environments where exposure to artificial light is prolonged. Homogeneous light distribution and 120° beam width cover large areas evenly.
Solid construction and quality materials
The frame is made of extruded aluminum, which is strong and lightweight, while the polystyrene (PS) diffuser ensures good light transmission and durability. The light surface is made of polystyrene for efficient flow distribution. The panel is designed for long-lasting use, with a service life of up to 50,000 hours (L80/B10) at 25 °C.
Ease of installation and mounting flexibility
It can be installed recessed, suspended or surface mounted, making it extremely versatile. It is compatible with 1200×300 mm grid ceilings, and comes with external driver included, preinstalled safety brackets and safety cable. It is also compatible with emergency conversion boxes and 5-pole junction boxes (optional) for wiring up to 2.5 sq. mm.
Ideal for replacements and new installations
Designed for direct replacement of traditional fluorescent ceiling lights, the PL COMP 1200 is perfect for offices, conference rooms, lobbies, corridors, elevators and public environments. It provides significant energy savings and low maintenance due to its long life and high reliability.
Technical Specifications Osram Led Panel Ledvance
Electrical data
| Power | 33 W |
| Rated voltage | 220240 V |
| Mains frequency | 5060 Hz |
| Rated current | 150 mA |
| Trigger current | 12,3 A |
| Inrush current limitation Th50 | 52 µs |
| Max. fixtures on switch B16A | 61 |
| Max. luminaires on switch C10A | 48 |
| Max. luminaires on switch C16A | 78 |
| Power factor | ? > 0,90 |
| THD (harmonic distortion) | < 10% |
| Safety class | II |
Photometric data
| Luminous flux | 3630 lm |
| Luminous efficiency | 110 lm/W |
| Color temperature | 4000 K (cool white) |
| Color rendering index (CRI) | Ra > 80 |
| SDCM | 5 |
| Pst LM (flicker) | < 1 |
| SVM (strobe effect) | < 0,4 |
| Photobiological risk group | EN 62778 RG0 (risk free) |
| Beam angle | 120° |

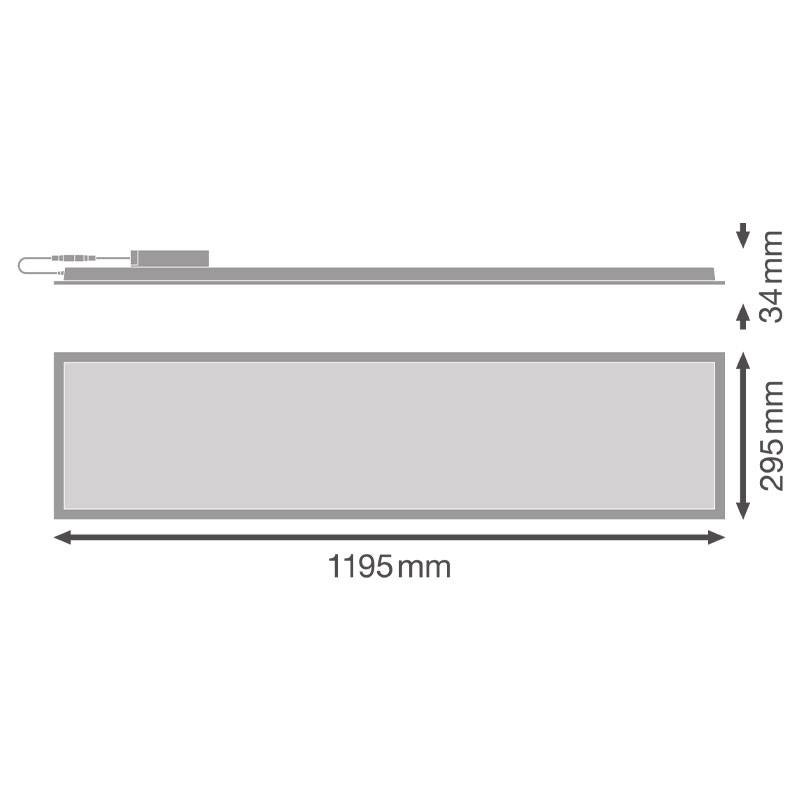

Dimensions and weight
| Length | 1195 mm |
| Width | 295 mm |
| Height | 34 mm |
Application & installation
| Ambient temperature | -10 ÷ +45 °C |
| Storage temperature | -20 ÷ +70 °C |
| Electrical connection | Screwless terminal, 2-pole (L, N) |
| Degree of protection | IP40 / IP20 |
| IK index | IK02 |
| Dimmable | No |
| Mounting | Recessed / Suspension / Surface |
| Mounting Location | Ceiling |
| Mounting length | 1190 mm |
| Mounting width | 290 mm |
| Recessed depth | 50 mm |
| Swiveling | No |
| Light source | Included, not replaceable |
