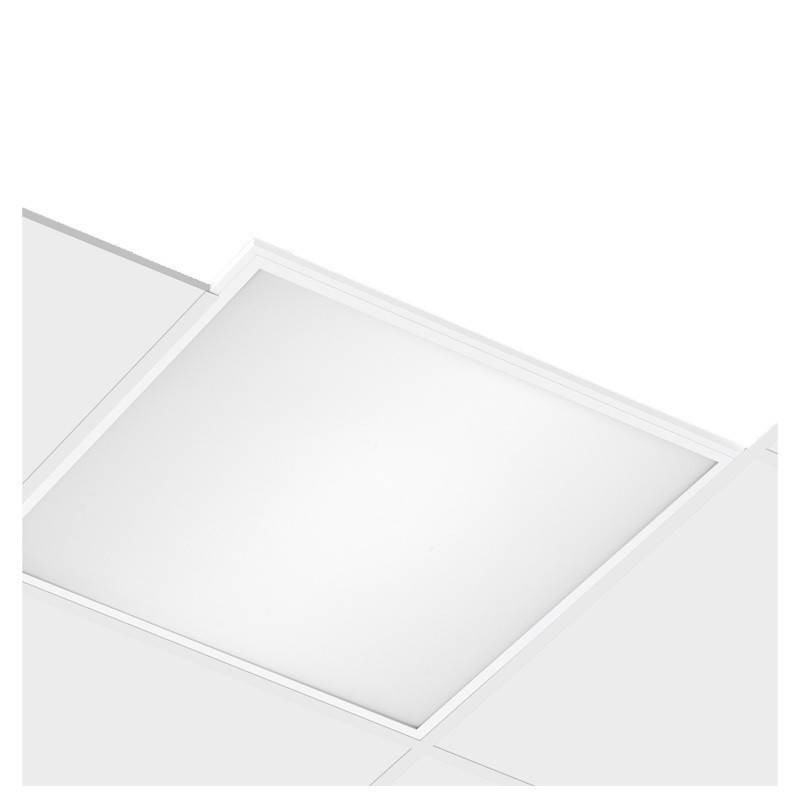

Disano LED panel 842 33W 4000K Dali CLD-D-D 1502050041

Disano
Disano
DIS 1502050041 8012952163438

The Disano LED panel 842 33W 4000K DALI (1502050041) is a 60×60 slim UGR<19 with 3600 lm: neutral light for offices and schools, DALI digital dimming and anti-yellowing materials for professional and comfortable lighting.

  • 33W 3600 lm 4000K: efficient and uniform neutral light

  • UGR < 19: ideal visual comfort for offices, classrooms, and PC work

  • Dimmable DALI driver (CLD-D-D wiring) for advanced light control

  • CRI 80: suitable colour rendering for work and public environments

  • RG0: no photobiological risk according to EN62471

  • Slim panel 596×596×12 mm, white finish and UV anti-yellowing coating.

  • dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    Disano LED panel 842 33W 4000K Dali CLD-D-D 1502050041
    €53.38
    €53.38

    €53.38
    Tax included
    Calculate shipping cost
    Items Available: 228
    Further availability of the manufacturer
    €53.38

    Buy it within and receive it from Tuesday, 3 February
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Frequently bought together

    Disano LED Panel 842: professional light 60x60 for work environments

    The Disano 842 is a LED panel designed for technical interior lighting, where uniformity, comfort, and light control are needed. The 60x60 shape makes it perfect for installations in modular false ceilings and for energy retrofits in public and commercial buildings. With a power of 33W and a flow of 3600 lumens, it offers bright yet balanced lighting, ideal for spaces where people work, study, or welcome the public.

    The 4000K colour temperature (neutral white) is a versatile choice: it maintains excellent detail perception without being cold, supporting concentration and comfort even in prolonged use.

    UGR<19: visual comfort for offices, schools, and PC workstations

    One of the strengths of this panel is the UGR < 19 value, essential for reducing glare and improving visual quality in environments such as open spaces, offices, meeting rooms, classrooms, and laboratories. In these contexts, glare control is not a detail: it increases productivity, reduces visual fatigue, and improves the overall perception of the environment, especially with monitors and reflective surfaces.

    DALI dimming: intelligent light management and energy saving

    The CLD-D-D wiring indicates devices equipped with a DALI dimmable electronic driver, ideal for modern systems with centralized control or for adjustment scenarios (e.g., meeting rooms, exhibition areas, corridors). Dimming allows the illumination to be adjusted to real needs, reducing consumption and increasing comfort. The predisposition for regulation with a radar sensor makes the panel suitable also for solutions with automatic presence management, useful in common and transit areas.

    Material quality: UV stability and reliable colour rendering

    The panel is made with stabilized materials and UV-resistant painting, designed to prevent yellowing over time and maintain a clean and uniform appearance, particularly important in shops, public spaces, and offices. The CRI 80 colour rendering ensures natural colours and good readability, while the RG0 classification confirms the absence of photobiological risk according to EN62471, a relevant aspect for installations in environments frequented daily.

    Recommended applications: retail, schools, offices, and common areas

    This Disano 842 is suitable for a wide range of contexts: shopping centres, shops, exhibition halls, supermarkets, airports, but also schools, classrooms, laboratories, meeting rooms, as well as corridors, stairwells, and common areas. The combination 4000K + UGR<19 + DALI dimming makes it a solid choice when the lighting project requires efficiency, comfort, and control.

    BASIC INFORMATION
    Manufacturer Disano Illuminazione
    Short product code 842
    Order code 150205-0041
    European Unique Code (EAN) 8012952163438
    Product name LED Panel - UGR<19 - CRI ≥80
    Body Steel sheet body and aluminum frame
    Body colour White
    Diffuser High transmittance prismatic technopolymer; internal PMMA sheet
    UGR UGR <19 (EN 12464)
    Wiring code CLD-D-D
    POWER SUPPLY AND CONTROL
    Voltage 220–240 V AC
    Frequency 50–60 Hz
    Control and adjustment Yes (external control)
    Interface DALI
    Low flicker Uniform light with very low flicker
    Power factor ≥ 0.95
    Equipment Ceiling light complete with external driver, installable in the false ceiling
    On request Emergency wiring CLD-EC (-0050), CLD-D PUSH (-0045)
    LIGHTING PERFORMANCE
    Light source LED
    Outgoing luminous flux 3600 lm
    Total device power 33 W
    CCT 4000 K
    CRI ≥80
    Chromatic consistency SDCM3
    Luminous efficiency 109 lm/W
    Lumen maintenance Ta 25° (L) 90
    Failure Rate Ta 25 °C (B) 10
    LED Rated Life 80,000 h
    Photobiological risk RG0
    STANDARDS AND PROTECTIONS
    Reference standards EN 60598-1, EN 60529
    Markings / Certifications CE, ENEC
    Electrical insulation class Class II
    IP (v.l.) IP43
    IP (v.a.) IP20
    IK IK06

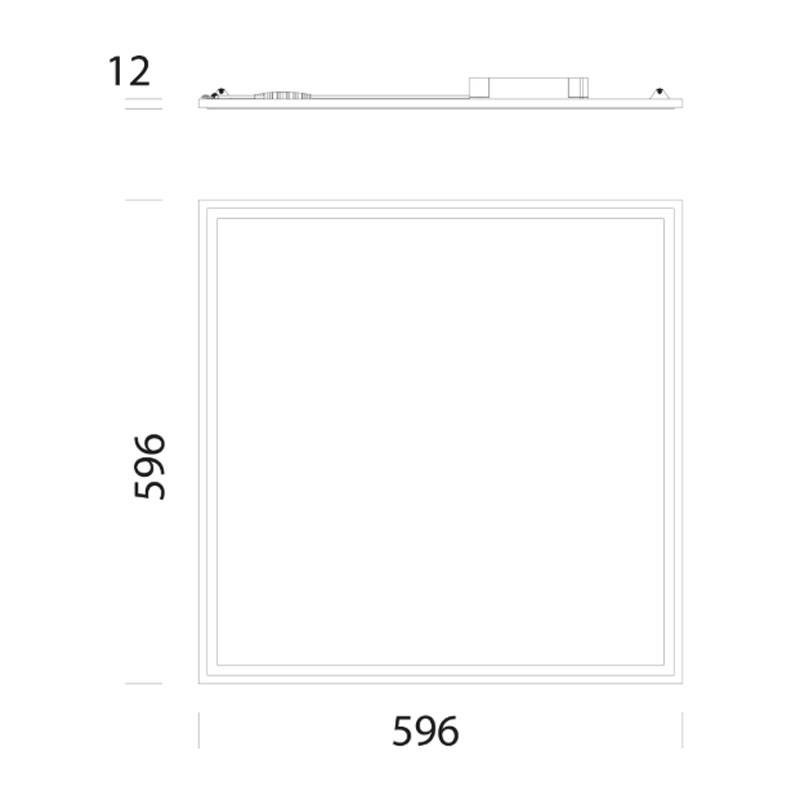

    DIMENSIONS AND WEIGHT
    Height 12 mm
    Width 596 mm
    Length 596 mm
    Net weight 2 kg
    Installation dimensions (L x P) 590 x 590 mm
    OTHER INFORMATION
    Warranty 5 years
    Energy label E

    There are no reviews

    Data sheet

    Type:
    Led Panels
    Staining:
    Natural
    Shape:
    Square
    Degree of protection:
    IP43
    Model:
    Collection
    Watts:
    31 to 40W
    Dimmable:
    Yes
    Colour temperatures:
    4000 Kelvin
    Consulta scheda EPREL info_outline
