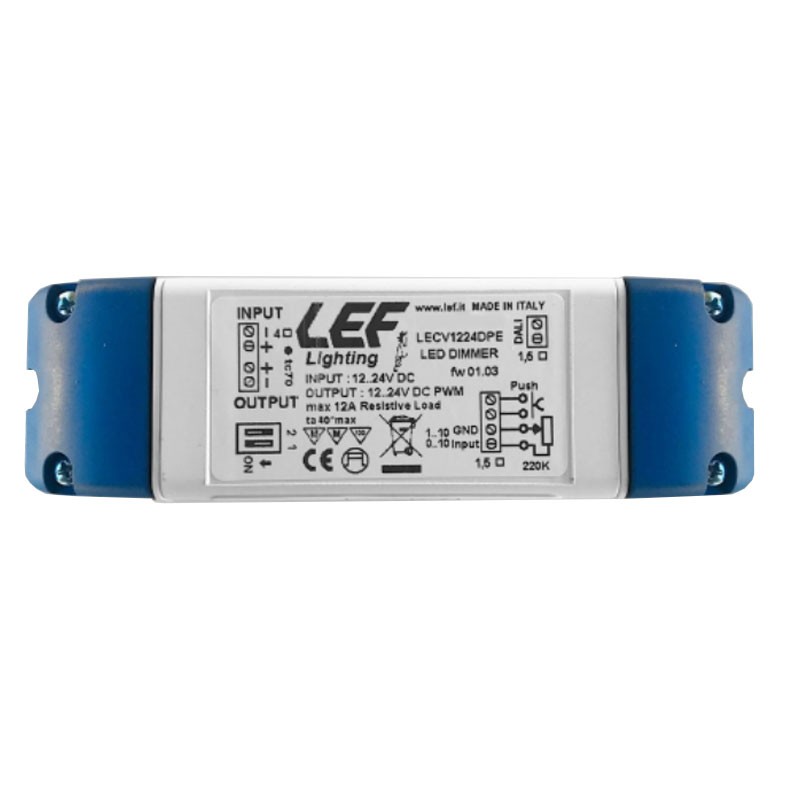

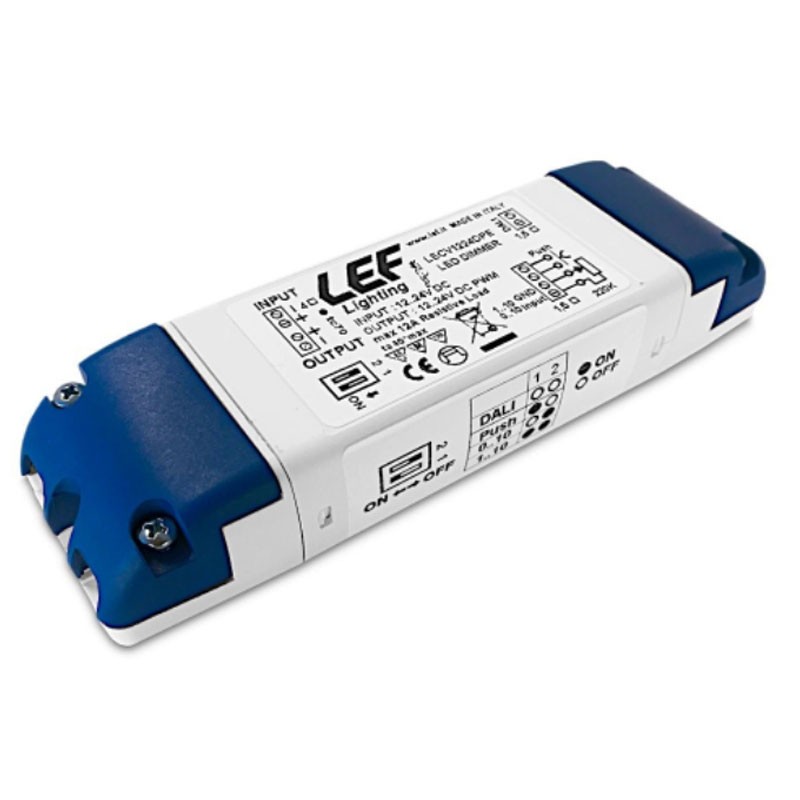

LEF 12-24VDC Led Dimmer with Button and Dali LECV1224DPE

Lef
Lef
LEF LECV1224DPE 8054521532351

Dimmer interface for LEF LED modules in 12-24VDC voltage with push button and Dali:

  • Input voltage 12-24Vdc
  • Output voltage 12-24Vdc
  • Output current 12A
  • Output power 144W (12v) - 288W (24V)
  • Master version
  • dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!
    LEF 12-24VDC Led Dimmer with Button and Dali LECV1224DPE
    €31.04
    €31.04

    €31.04
    Tax included
    Calculate shipping cost
    Out of stock
    Further availability of the manufacturer
    Incoming
    €31.04

    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Brightness adjustment by:

    • push button (PUSH no voltage)
    • DALI signal
    • 1-10V signal (active or passive)
    • 0-10V signal (active or passive)
    • 220KOhm potentiometer (Linear/Logarithmic) (selection via micro-switches, see Dimming Modes table)
    • SLAVE function via LEPWM-REP

    Features:

    • Plastic enclosure
    • Device for independent use
    • Electrical class of protection II
    • Degree of protection IP20
    • PWM output voltage frequency: 300Hz
    • Input voltage: 12-24Vdc
    • Output voltage 12-24Vdc
    • Over temperature protection (OTP)
    • Short circuit protection (SCP)
    • Open circuit protection (OCP)
    • Power factor factor (PFC) 0.93
    • Operating temperature: Ta -10°C/+40°C
    • Maximum temperature at point Tc 70°C

    There are no reviews

    Data sheet

    Type:
    Dimmer
    Voltage:
    12/24V
    Degree of protection:
    IP20
    Installation:
    External
