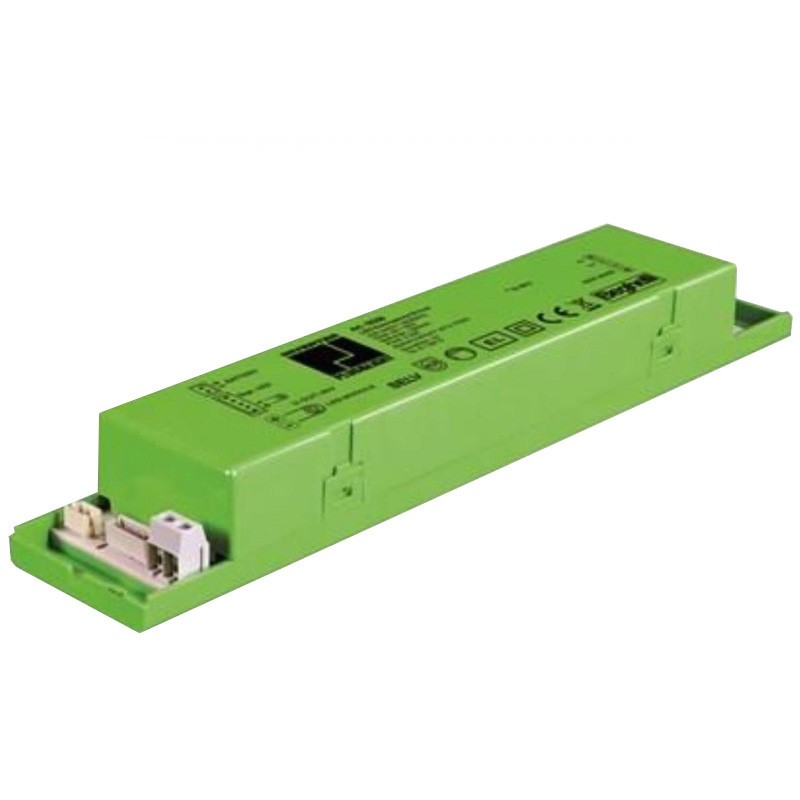

Inverter with patented Plug&Light technology, equipped with a quick connector compatible with the SD (Smart Driver) standard on all luminaires in the Stella Polare LED line.

The Cabinet of the inverter incorporates the battery pack and is equipped with cable gland covers for use outside the luminaire, as in the case of Led Panel or Down light LED, where it is housed in the false ceiling. The system, includes Battery Control Sistem (BCS) with multicolour signalling LEDs to indicate battery status, is also compatible with all LED luminaires equipped with SELV certified Driver, to which it can be connected using the universal quick terminal block.

The Plug&Light system guarantees the highest performance available (e.g. installed on BS100 LED provides 407 lm in emergency), constant output power and total maintenance of the compliance characteristics of the Smart Driver luminaire to which it is connected.

Features:

• Constant 3.2W output power
• Power supply 230Vac 50Hz
• Operation SE/SA (Non permanent/permanent), RM (with optional control device code 2730)
• Conformity EN 61347-2-7, EN 61347-1, EN 60598-1
• Degree of protection IP40, IP65
• Autonomy 1h
• Output voltage 20 - 60 Vdc (19358, 19359) 60 - 180Vdc (19367)
• Ambient temperature 0°C ÷ +40°C
• NiCd battery 7.2V 0.75Ah (1h)
• Bi-color status LED with PC guide (BCS)
• Polycarbonate body Max output current 160 mA
• Recharge time 24h
