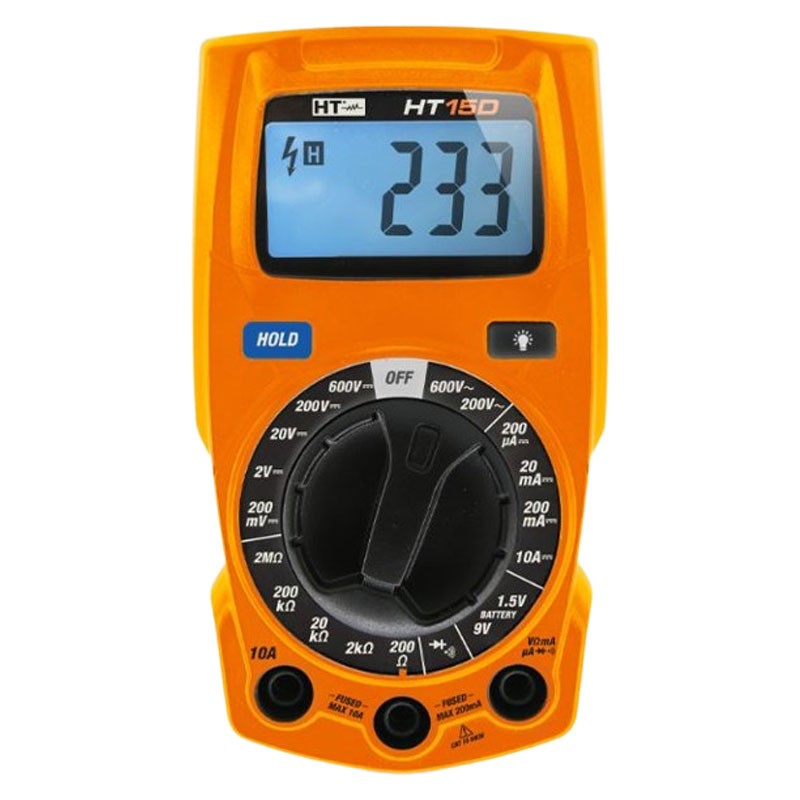

The HT Italia HT15D is a compact digital multimeter CAT III 600V for AC/DC voltage measurements up to 600V and DC current up to 10 Amperes. Equipped with a backlit display, Data Hold, and battery test:
AC/DC Voltage: up to 600V
Safety category: CAT III 600V
Resistance, continuity, diode test
Battery test 1.5V and 9V
Backlit LCD display 3 1/2 digits (2000 counts)
Backlight
Automatic polarity indication
Out of range indication “OL”
Low battery indication
Power supply: 2 AAA 1.5V batteries (LR03)
Battery life: 30 hours (backlight ON) – 130 hours (backlight OFF)
Dimensions L x W x H: (125 × 70 × 40 mm)
Thanks to its compact size (125 × 70 × 40 mm), it is easily portable and suitable for maintenance, installation, and diagnostic operations.
HT15D is a compact digital multimeter capable of performing mainly AC/DC Voltage measurements up to 600V and DC Current up to 10A with complementary functions of Resistance, Continuity Test, Diode Test, and 9V and 1.5V alkaline battery test.
It is equipped with a large backlit LCD display, and each function can be selected via the appropriate switch. An additional feature provided is the Data HOLD for maintaining values on display.
This multimeter complies with IEC/EN61010-1, CAT III 600V, IEC/EN61326-1 (EMC) standards. It is an ideal tool for electricians, maintenance technicians, and installers who need a reliable and compact instrument for quick and safe checks.
| General data | |
|---|---|
| Display | LCD 3½ digits, 2000 counts + sign and decimal point; automatic polarity; backlight; out of range “OL” |
| Functions | Data HOLD |
| Low battery indication | Symbol " " when battery voltage is too low |
| Operating temperature | 0°C ÷ 50°C, <70%RH |
| Storage temperature | -20°C ÷ 60°C, <80%RH |
| Maximum operating altitude | 2000 m |
| Pollution degree | 2 |
| Insulation | Double insulation |
| Power supply | 2x1.5V alkaline batteries type AAA LR03 |
| Autonomy | approx. 30h (backlight ON), approx. 130h (backlight OFF) |
| Protection fuses | Fast 10A/600V 5x20mm (10A input); fast 200mA/600V 5x20mm (mAµA input) |
| Dimensions (L x W x H) | 125 x 70 x 40 mm |
| Mechanical protection | IP40 |
| Reference standards | Safety: IEC/EN61010-1, CAT III 600V to ground; EMC: IEC/EN61326-1 |
| Electrical specifications | |
| Reference conditions | Uncertainty ±[%reading + (num. digits*resolution)] at 18°C ÷ 25°C, <75%RH |
| DC Voltage | |
| Range 200.0 mV | Resolution 0.1 mV; Uncertainty ±(0.5%reading+3digits); Impedance >1MΩ; Overload 200Vrms |
| Ranges 2.000V / 20.00V / 200.0V | Resolution 0.001V / 0.01V / 0.1V; Overload 600V DC/AC |
| Range 600V | Resolution 1V; Uncertainty ±(0.8%reading+3digits); Overload 600V |
| AC Voltage | |
| Range 200.0V | Resolution 0.1V; Uncertainty ±(1.2%reading+10digits); Impedance >1MΩ; Overload 600VAC |
| Range 600V | Resolution 1V; Overload 600VAC |
| Frequency range | 50Hz ÷ 60Hz |
| DC Current | |
| Range 200.0 µA | Resolution 0.1µA; Uncertainty ±(1.0%reading+5digits) |
| Range 20.00 mA | Resolution 0.01mA; Protection: fast fuse 200mA / 600V |
| Range 200.0 mA | Resolution 0.1mA; Uncertainty ±(1.2%reading+5digits) |
| Range 10.00 A | Resolution 0.01A; Uncertainty ±(3.0%reading+5digits); Protection: fast fuse 10A / 600V |
| Resistance and continuity test | |
| Range 200.0 Ω | Resolution 0.1Ω; Uncertainty ±(1.0%reading+5digits); Buzzer <40Ω; Overload 250Vrms (<15 sec) |
| Ranges 2.000kΩ / 20.00kΩ / 200.0kΩ | Resolution 0.001kΩ / 0.01kΩ / 0.1kΩ |
| Range 2.000 MΩ | Resolution 0.001MΩ; Uncertainty ±(1.5%reading+5digits) |
| Diode test | |
| Test current | < 1 mA |
| Max open circuit voltage | 2 VDC |
| Battery test | |
| Range 1.5V | Resolution 10mV; Uncertainty ±(1.0%reading+2digits); Test current 100mA |
| Range 9V | Test current 6mA |
