Etelec 500V AC/DC Contactless Digital Multimeter and Phase Tester Kit KS05
ETL KS05
8053323907169
Etelec Measurement Tool Kit, ideal for quick and accurate checks on electrical systems. Perfect for technicians, electricians and electronics enthusiasts, the kit enables voltage checks, continuity tests and phase presence detection with simplicity and maximum safety. The kit consists of:
-
Handheld Digital Multimeter for voltage 500 V AC/DC (code TE0140)
-
Contactless Digital Phase Tester 2-level measurement model (cod. T7001)
€99.24
Items Available: 13
: 2

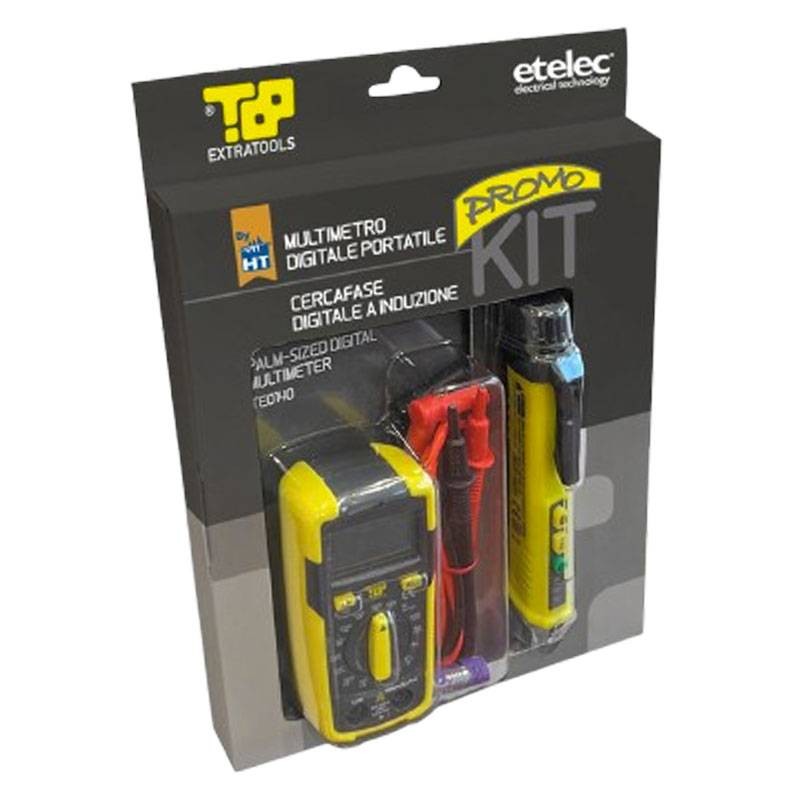

Etelec Measuring Instrument Kit
Compact and functional kit consisting of digital multimeter and digital non-contact phase tester, ideal for technicians and electrical installation professionals. It allows you to quickly measure AC/DC voltage up to 500V and detect the presence of phase safely, thanks to non-contact detection. An essential tool for diagnostics and quick interventions on civil and industrial installations.

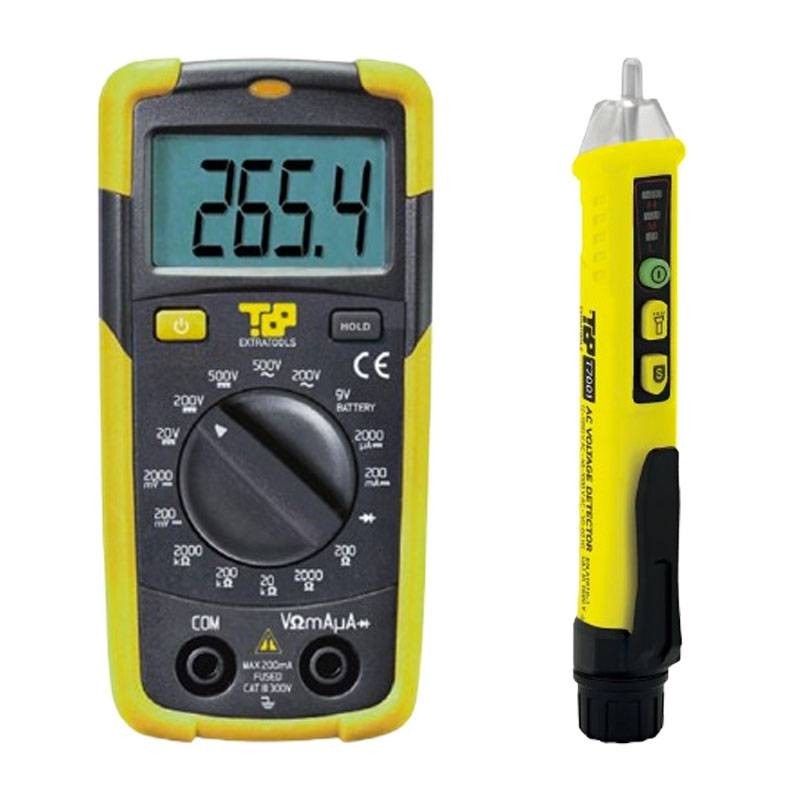

Etelec Kit Components.
Portable Digital Multimeter for quick measurements up to 500V
Designed for those who need an essential but reliable tool, this pocket-sized digital multimeter allows you to perform AC/DC voltage measurements up to 500V, DC current, resistance, diode and battery tests quickly and easily. With its compact size and 2,000-point display, it is ideal for work in confined spaces and for everyday use on civil and hobbyist electrical systems.
Technical Specifications Etelec Multimeter
Main Features
| Parameter | Value |
|---|---|
| AC/DC voltage | up to 500 V |
| Current | DC |
| Test | Diodes, resistance and 9V batteries |
| Display | LCD 2000 dots, 3½ digits with sign and decimal |
| Function | Data Hold |
| AC voltage detection | Non-contact |
| Safety | Double insulation for maximum safety |
Technical Specifications
| Parameter | Value |
|---|---|
| Conversion | Average value (not TRMS) |
| Autorange | No |
| Indications | Automatic polarity and out of scale |
| Max. operating altitude | 2000 m |
| Operating temperature | 0 50 °C |
| Operating humidity max | 70% |
| Power supply | 1 battery MS21 / MN21 (12V) |
Dimensional Information
| Parameter | Value |
|---|---|
| Length | 105 mm |
| Width | 50 mm |
| Depth | 25 mm |
Digital phase finder with non-contact detection
Compact, intuitive and reliable, the NCV digital phase finder is the perfect tool for detecting the presence of AC voltage without direct contact. Ideal for electricians and technicians, it detects AC voltage on two sensitivity levels, with light and sound signaling, and offers a useful built-in LED flashlight for working even in low visibility conditions.
Etelec Phase Tester Technical Specifications
Main Features
| Parameter | Value |
|---|---|
| Detection | Non-contact (NCV) |
| Sensitivity levels | 121000 V and 481000 V AC (5060 Hz) |
| Signaling | Acoustic (3 levels) and bright (LED) |
| Flashlight | Integrated white LED |
| Safety | Double insulation and automatic shutdown |
| Battery indication | Discharge |
Technical Specifications
| Parameter | Value |
|---|---|
| NCV Intensity | Low, medium, high |
| Maximum operating altitude | 2000 m |
| Operating temperature | 0 40 °C |
| Storage temperature | -10 50 °C |
| Power supply | 2 AAA 1.5 V batteries |
| Signaling | Sound and light |
Dimensional Information
| Parameter | Value |
|---|---|
| Length | 156 mm |
| Width | 20 mm |
| Depth | 20 mm |
