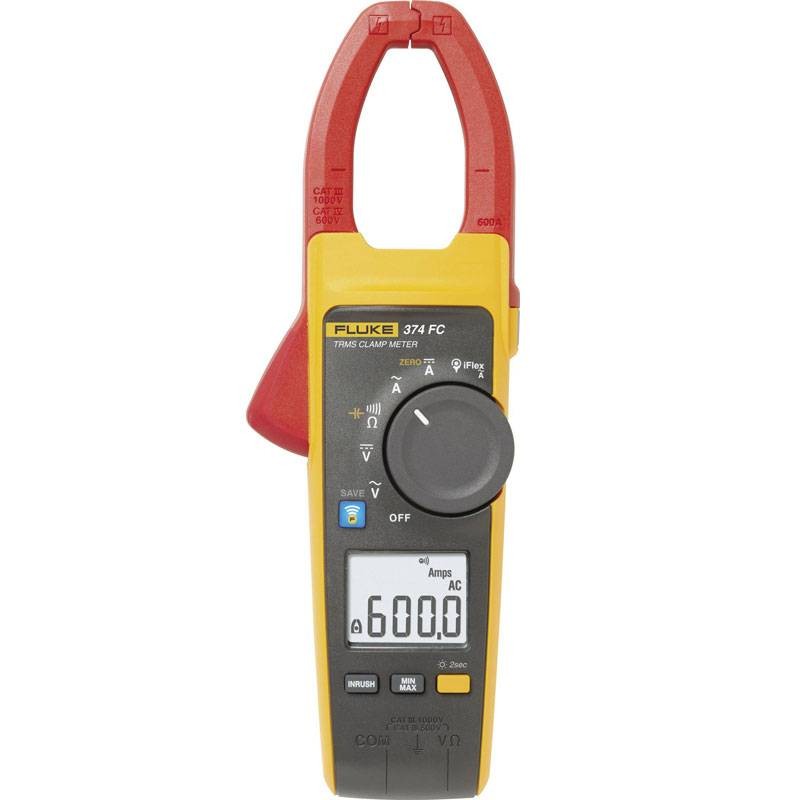

Fluke 374FC 600A 1000V AC/DC Clamp Multimeter 4696001
FLK 4696001
Fluke 374FC clamp-on multimeter with measuring capability:
- AC and DC current measurement to 600 A
- 2,500 A AC current measurement with iFlex flexible current probe (optional)
- 1,000 V for DC and AC voltage measurement
- True RMS current and voltage for accurate measurements of nonlinear signals
- Resistance measurement up to 6000 with continuity detection
- Recording of min, max and average values and inrush current for automatic change detection
- Capacitance measurement up to 1,000 F
The Fluke 374 FC model replaces the Fluke 374 clamp multimeter.
€646.74
Items Available: 2
: 1
Benefits:

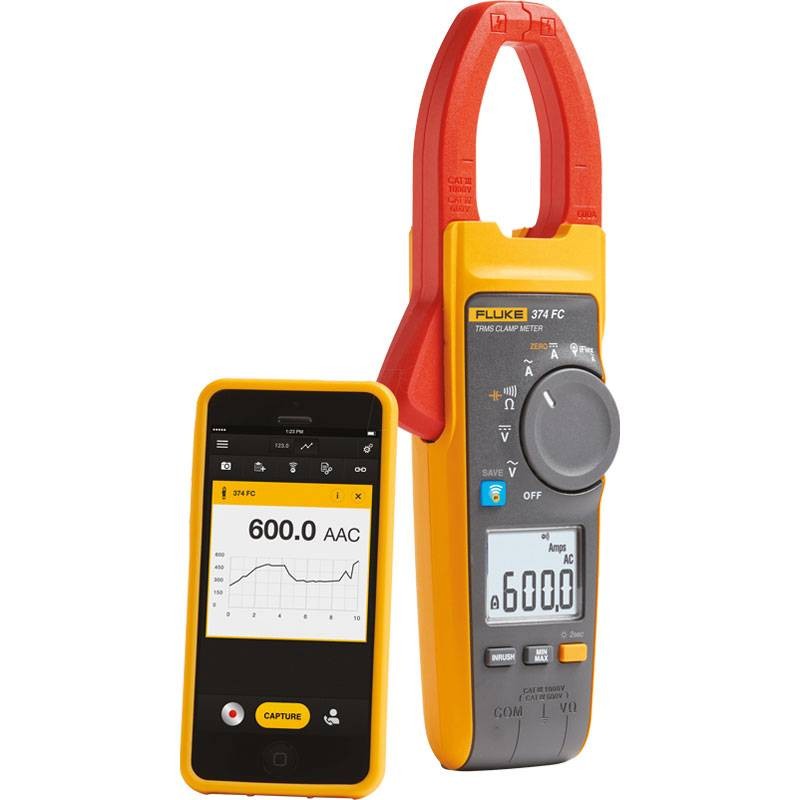

- Connect the device to your smartphone with Fluke Connect measurements
- Read measurements on your phone from a safe distance, wearing a small amount of PPE and letting the multimeter take risks for you
- Record results directly on your phone and in the Cloud
- Create and share reports from the field via email or communicate in real time with Share Live video calls
- Compatible with iFlex flexible current tip; expands measurement range to 2500 A AC; provides access to large conductors in tight spaces
- Compatible with TPAK magnetic latching strap
- Proprietary inrush current measurement technology eliminates noise and detects motor starting current in the same way as the protection circuit
- Safety class CAT IV 600 V, CAT III 1000 V
- Three-year warranty
- Soft carrying case
The Fluke 374 FC is part of the Fluke Connect family of wireless test tools. which brings the following advantages:
- Trend measurements and intermittent fault detection by connecting the multimeter to your phone via the Fluke Connect® measurement app
- Wireless transmission of results via the Fluke Connect® measurement app
- Create and send reports directly from the field
- Stay safely away from the electrical shock hazard zone with Bluetooth connectivity for Apple and Android devices
Features:
- CAT safety CAT III 1000 V, CAT IV 600 V
- AC Range. A 600 A with jaws 2500 A with optional iFlex® flexible current clamp
- DC Range. A 600A
- Best resolution 0.1A
- AC range 1000V
- DC range V 1000V
- Ohm range 6,000
- Capacity 1 -1,000 F
- Automatic shutdown
- True RMS
- Display hold function
- Inrush measurements
- Backlighting
- Zero c.c.
- Min/max
- Compatible with Fluke Connect
- Maximum voltage between any terminal and ground 1000 V
- Battery type 2 AA alkaline batteries, NEDA 15A IEC LR6
- Temperature Operating: -10 °C to +50 °C Storage: -40 °C to +60 °C (-40 °F to + 140 °F)
- Operating Humidity No condensation (<10 °C), 90% relative humidity (10 °C to 30 °C ), 75% relative humidity (30 °C to 40 °C), 45% relative humidity (40 °C to 50 °C)
- Altitude Operating: 3,000 m (9,842 ft) Storage: 12,000 m (12,000 ft)
- Dimensions 24.9 cm x 8.5 cm x 4.5 cm
- Weight 395 grams
- Jaw opening 34 mm
- Safety IEC 61010-1
- Pollution degree 2 - IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V -IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
- IP rating IEC 60529: IP30, not in operation
- Radio frequency certification FCC ID:T68-FBLE IC:6627A-FBLE
There are no reviews
Data sheet
- Type: Multimeters
