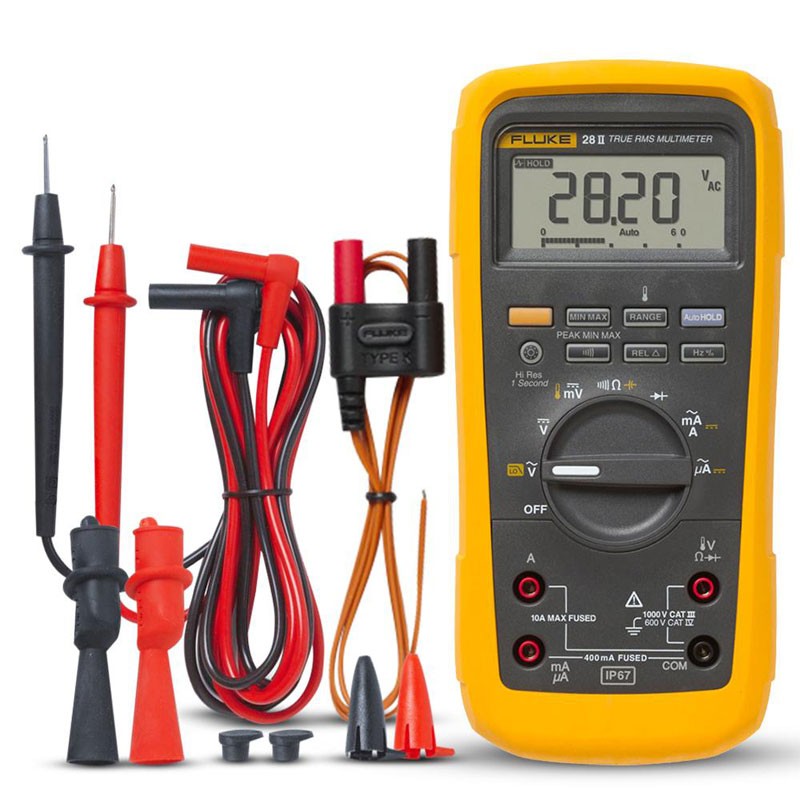

Fluke 28-II TRMS 1000V AC/DC Multimeter 3947820
FLK 3947820
Fluke 28-II TRMS Multimeter:
- Measurements up to 1000 V AC and DC
- Measurements up to 10 A (20 A for up to 30 seconds)
- Capacitance range 10,000 F
- Frequency up to 200 kHz
- Extended AC voltage bandwidth 15 Hz - 20 kHz (28 II), 40 Hz - 30 kHz (27 II)
- A built-in thermometer makes it easy to measure temperature without carrying an additional instrument (28 II)
- Resistance, continuity and diode testing
- Min/max and average value recording for automatic detection of variations
- Peak min-max (28 II)
- A unique feature that allows accurate measurement of voltage and frequency on variable speed motors and other "noisy" electrical equipment (28 II)
€906.95
Items Available: 1
Overview:
- The Fluke 27 II and 28 II digital multimeters set a new standard for operation in extremely harsh conditions and are capable of providing the functions and accuracy needed when troubleshooting most electrical problems. Both multimeters have IP 67 (dust and water resistance) certification, MSHA approval, an operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95 percent operating humidity, and have been designed and tested to withstand falls from a height of 3 m (10 feet). Fluke 20 Series multimeters are built for use in the harshest environments
Advantages:
- New IP 67 certification for water and dust protection, fully sealed for use in harsh environments
- Designed to withstand falls from a height of 3 meters (with protective shell)
- High-resolution 20,000-dot display mode (28 II)
- True RMS value AC current and voltage for accurate measurements on nonlinear signals (28 II)
- For voltage and current measurements calibrated to the mean value (27 II)
- New Keypad with backlit buttons for easy visibility in low-light areas
- Display with large digits and 2-level white backlighting for better visibility
- Reversible protective shell for additional protection when not in use
- Multimeter is protected for voltage spikes caused by load switching and faults on industrial circuits up to 8,000 V and complies with ANSI and IEC second edition electrical safety standards
- Long battery life (800 hours)
- Relative mode to subtract test lead resistance from low resistive value measurements
- Automatic and manual scale selection function for maximum flexibility
- An optional magnetic hook allows the device to be fixed in the most convenient position for reading displayed values while keeping hands free to perform other tasks
- MSHA approval
Precision Specifications:
- DC voltage Range 0.1 mV to 1000 V Accuracy 0.05% + 1
- AC Voltage Range From 0.1 mV to 1000 V Accuracy 0.7% + 4
- DC Current Range From 0.1 ?A to 10 A Accuracy 0.2% + 4
- AC Current Range From 0.1 ?A to 10 A Accuracy 1.0% + 2
- Resistance Range From 0.1 ? to 50 ?
- Display points 6000
- Capacitance From 1 nF to 9999 ?F
- Frequency From 0.5 Hz to 199.99 kHz
- Temperature From -200 °C to +1090 °C
- Low-pass filter (for measurements on variable-speed motors)
- Compliance CAT IV 600 V, CAT III 1000 V
- IP Class IP 67
- Power supply Three AA batteries
- Battery life 800 hours
- Display Histogram type analog/backlighting Yes/Yes
- Data storage: Capture transients and peaks 250 ?S - Min/Max/Medium Yes - Hold function of measurement Yes
- Other functions: Relative measurements (zero) Yes - Battery type Three AA batteries
Warranty and protection:
- Safety Class CAT IV 600 V/CAT III 1000 V
- Safety in mines MSHA approval
- External protection Rubber protective shell
- Drop proof From 3 m
- Dust/water resistant Yes, rated IP67
- Limited lifetime warranty
- Dimensions with protective shell (H x W x D) 6.35 x 10.0 x 19.81 cm
- Weight with shell 698.5 g
There are no reviews
Data sheet
- Type: Multimeters
