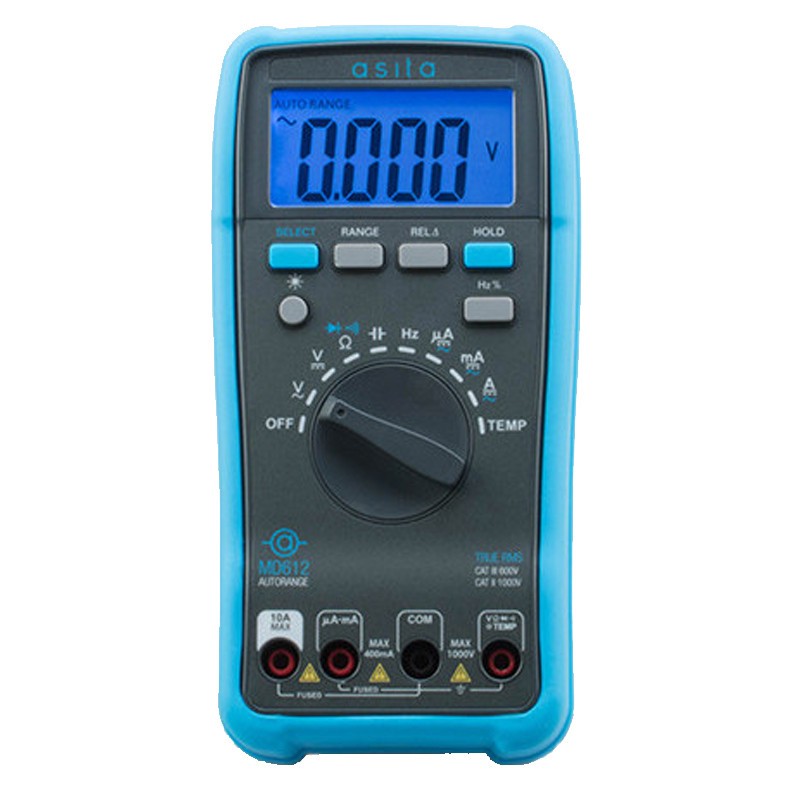

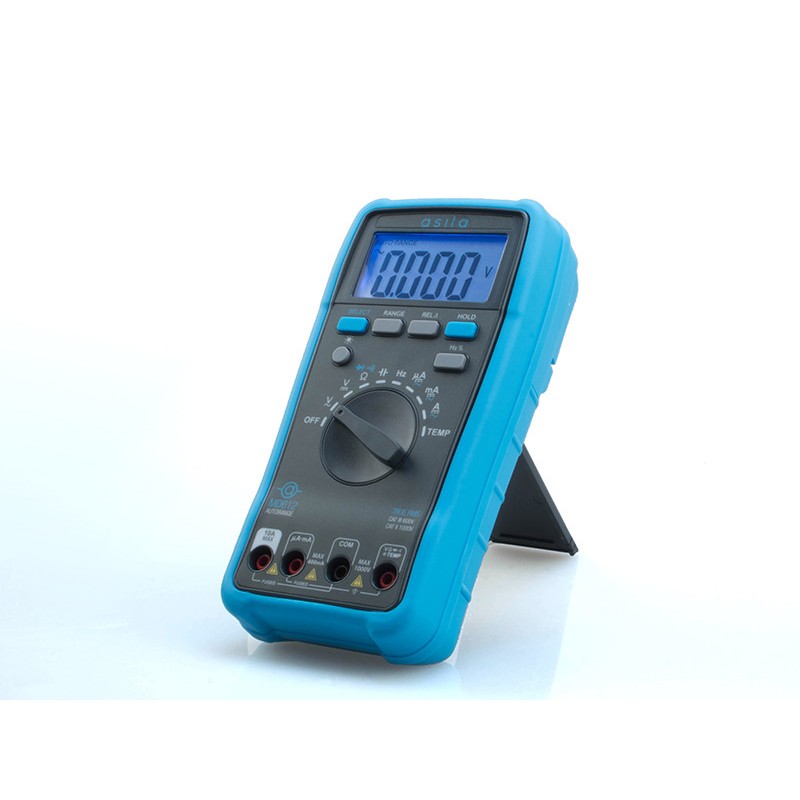

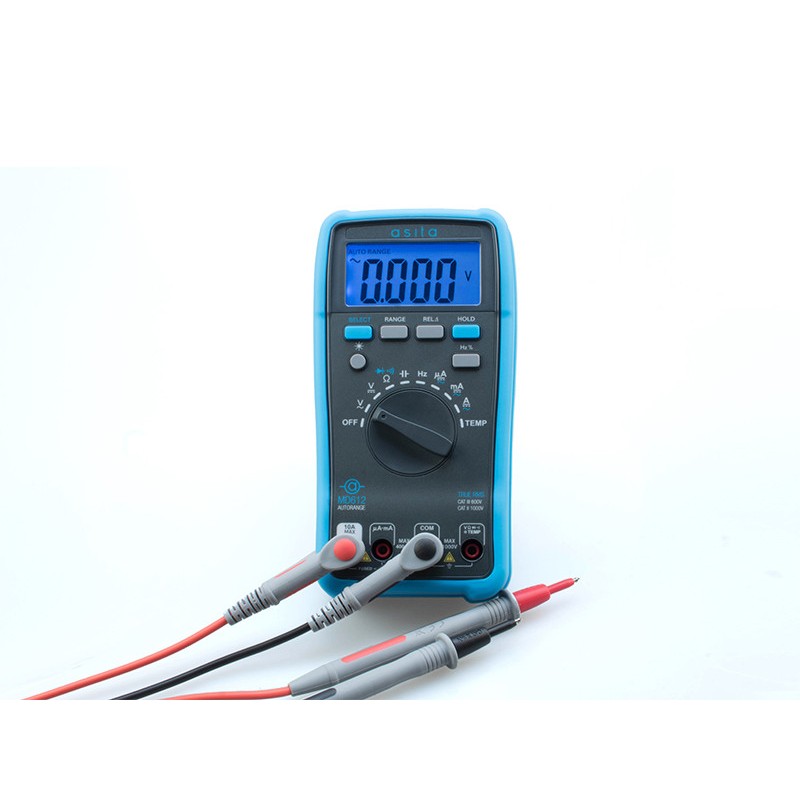

Asita MD612 TRMS Digital Multimeter

Asita
Asita
ASI MD612 8050148064817

Asita TRMS digital multimeter, with the following features:

  • Measurement method: True Effective Value TRMS
  • Backlit LCD display with 4000 counts
  • Bandwidth 40Hz...500Hz
  • Measurement category CAT-III 600V, CAT-II 1000V
  • Protection degree IP40
  • Power supply 2 LR6 batteries
Do you have questions about this product or did you not find what you were looking for? Ask us!
Asita MD612 TRMS Digital Multimeter
€166.02
€166.02

€166.02
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€166.02

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

General Features:

  • Multifunctional digital multimeter TRMS 1000V/10A, with high safety features
  • TRMS True Effective Value processing with bandwidth up to 500Hz
  • Electronic protection against wrong insertion in resistance measurement and, by means of fuse with high breaking power in current measurement
  • Relative calculation function "REL": the instrument automatically processes the differential value between the set reference value and the measured value
  • Designed and built to operate in harsh environmental conditions (from -10°C to +50°C)
  • Large display with blue backlight for use in dimly lit environments
  • Automatic scale change and auto-off function

Features:

  • Dimensions and weight: 180x91x57mm / 380 grams
  • DC Direct Voltage - Measurement ranges5 ranges: from 400.0mV to 1000V
  • DC Direct Voltage - Basic accuracy±0.5%rdg ± 3dgt
  • AC Alternating Voltage - Measuring ranges5 ranges: 400.0mV to 1000V
  • AC Alternating Voltage - Base Accuracy±1.0%rdg ± 5dgt
  • DC Direct Current - Measuring ranges6 ranges: 400.0uA to 10.00A
  • DC Direct Current - Basic Accuracy±1.0%rdg ± 3dgt
  • AC Alternating Current - Measuring Range6 ranges: 400.0uA to 10.00A
  • AC Alternating Current with Clamp - Basic Accuracy±1.0%rdg ± 5dgt
  • Resistance - Measuring ranges 6 ranges: 400.0Ω to 40.00MΩ
  • Resistance - Basic Accuracy ±0.5%rdg ± 2dgt
  • Frequency - Measuring ranges 7 ranges: 5,000Hz to 5,000MHz
  • Frequency - Base Accuracy ±0.1%rdg ± 3dgt
  • Capacitance - Measurement ranges 5 ranges: 20.00nF to 100.0uF
  • Capacitance - Base accuracy ±2.0%rdg ± 5dgt
  • Temperature - Measuring ranges -40˚C to +200˚C
  • Temperature - Basic Accuracy ±2.5˚C

Other Performance:

  • Continuity Test
  • Diode Test
  • Data Hold
  • Relative REL calculation
  • Automatic Scale Change
  • Auto-off
