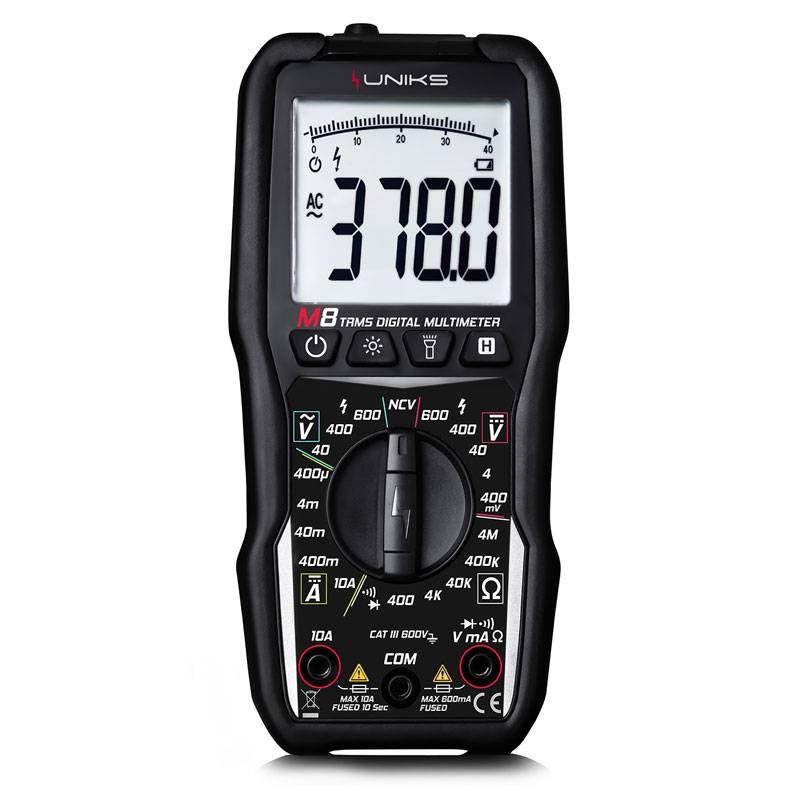

TRMS Uniks 10A Compact Manual Multimeter M8
UNK M8
8052461742243
Uniks compact manual TRMS multimeter represents the UNIKS range of digital multimeters that are small in size but have high-level measurement and construction features.
Measurements of Voltage up to 600V AD/DC and Current up to 10A are in TRMS (True Effective Value).
It is equipped with large Display with Bar-graph function and is surge protected over the entire measurement range.
Accessories included:
- UNI99: 2 R and N 4mm CAT III 1000V test leads.
- UNI616: Canvas carrying bag
- User's manual
- 2 x 1.5V AAA batteries
€46.89
Items Available: 20
: 3
Advantages:
- Has a Voltage range from a scale in mV up to a maximum of 600V AC/DC
- In true rms (TRMS) with a bandwidth of 400Hz
- Overvoltage category is CAT III 600V
- Current measurement is selectable in 10A, uA and mA DC scales
- Measurement of Resistance , Continuity and Diode Test
The NCV function allows the multimeter to be used as a non-contact Voltage detector by taking advantage of a sensor located on the top of the multimeter also the same function can be performed with a test lead making it even more accurate.
Led Light:
- M8 is equipped with an LED light for dimly lit environments in addition the guine has the function of interlocking test leads to facilitate measurements in electrical panels.
Functions:
- TRMS
- HOLD function
- LCD display
- CAT III 600V
- Built-in flashlight
- Auto Power Off
- Low battery indicator
- Backlighting
Features:
- 4,000 Points of Measurement
- Input surge protection 600V AC/DC RMS
- Bandwidth for TRMS measurements of 400Hz AC/DC voltage up to 600V
- Voltage mV
- DC Current up to 10A
- Resistance up to 4M
- Continuity Test Diode NCV (non-contact voltage detector)
There are no reviews
Data sheet
- Type: Multimeters
