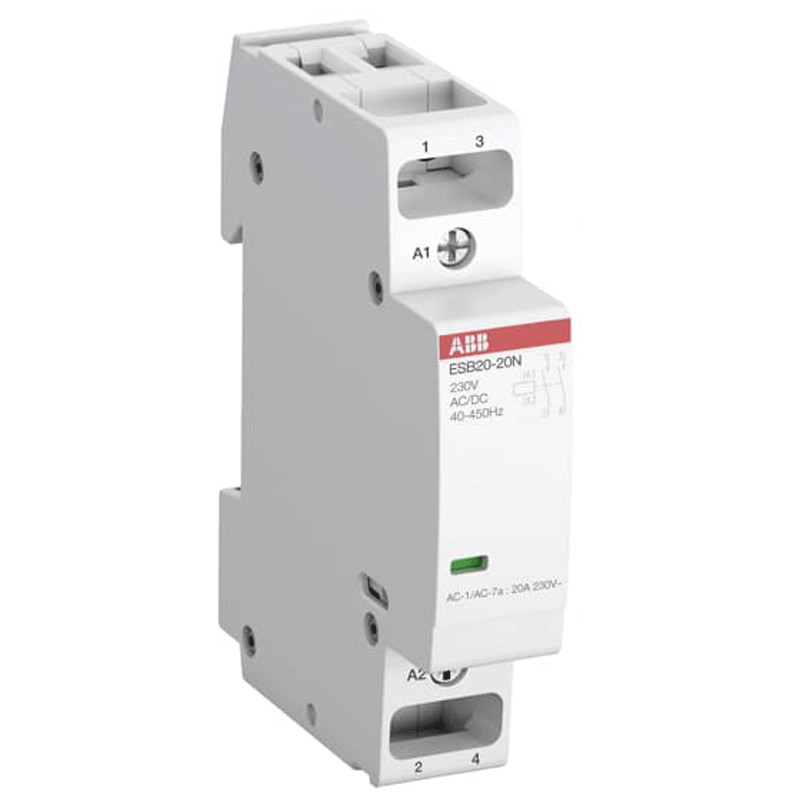

Abb modular contactor 20A 2NA 230 VAC ESB2020N06
ABB ESB2020N06
3471523007505
Abb modular contactor, with the following characteristics:
- Rated impulse withstand voltage 6 kV
- Rated insulation voltage 400 V
- Rated operating voltage main circuit 220 Vdc, main circuit 250 Vac
- Rated control circuit voltage 230 Vac
- 2 poles
- 1 modules
- DIN connection (universal for any control unit on the market)
- Operating current 20 amperes
€42.70
Items Available: 472
: 17
The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.
The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.
Features:
- Abb Series
- Rated impulse withstand voltage 6 kV
- Rated insulation voltage 400 V
- Nominal operating voltage Main Circuit 220 Vdc, Main Circuit 250 Vac
- Rated control circuit voltage 230 Vac
- 2 poles
- 1 modules
- Number of NC main contacts 0
- Number of main contacts NO 2
- DIN connection (universal for any control unit on the market)
- Operating current 20 amperes
- Tightening torque Control Circuit 0.9 Nm - Main Circuit 1.2 Nm
- Control Circuit cable stripping length 7 mm - Main Circuit 10 mm
- Degree of protection IP20
- Rated frequency (DC Control Circuit - Control Circuit 50 Hz - Control Circuit 60 Hz - Control Circuit 400 Hz - DC Main Circuit - Main Circuit 50 Hz - Main Circuit 60 Hz)
- Mechanical life 1,000,000 cycles
- Product width 18 mm
- Product height 85 mm
- Product depth 65 mm
- Product net weight 0.14 kg
Data sheet
- Type: Contactors
- Voltage: 230VAC
- Modules: 1
- Poles: 2P
- Amps: 20A
