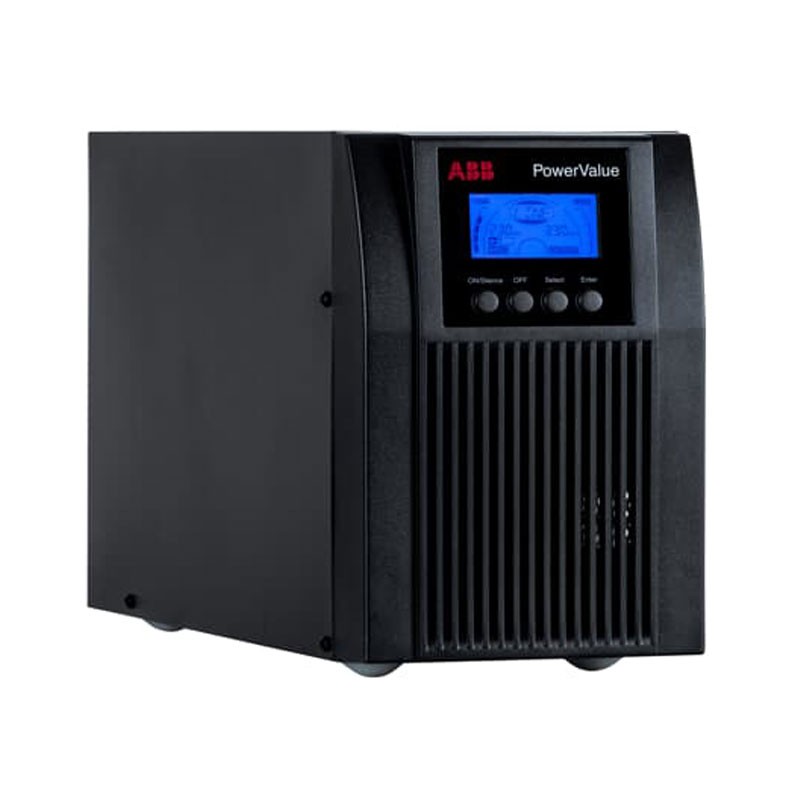

ABB's 4NWP100161R0005 is a single-phase, online double conversion uninterruptible power supply (UPS) that provides up to 10 kW of reliable power for your most critical single-phase applications. In addition to providing power, it can modulate the input current, eliminating spikes, distortion, sags, interference and harmonics.

Featuring independent voltage and frequency topology (VFI), the PowerValue 11T G2 4NWP100161R0005 tower UPS helps you rationalize costs while minimizing energy losses thanks to its double conversion with high efficiency of up to 98%. Two or three units can be connected in parallel to provide additional power up to a maximum of 30 kW, or to provide the necessary redundancy.

The 4NWP100161R0005 is simple to install, easy to maintain, economical to run and has the most compact online UPS structure on the market. PowerValue 11T G2 provides stable, regulated, transient-free, wave-free AC power with extremely tight output voltage regulation. All units can be equipped with up to four external battery modules (EBM) to extend runtime by more than two hours. Each EBM powers a UPS and settings can be made easily via the LCD menu.

High reliability:

• Double conversion topology that protects the load from all input interference
• Connectable in parallel up to three units (6-10k only) to ensure system redundancy
• User replaceable batteries
• Wide range of input voltage tolerance.

Flexible design:

• Multiple connection options
• Each UPS can be connected up to four battery modules in parallel to extend runtime
• Adjustable DC voltage and battery charging current
• Safety time extension models available
• Best power density available in this market segment.

Low cost of ownership:

• Scalable runtime hours
• High operating efficiency
• Low installation and upgrade costs
• Compact design
• Output power factor of 1.0 (only 6-10 kVA)

Efficient service concept

• Integrated manual bypass circuit breaker (6-10 kVA only)
• Easy setup and maintenance (plug and play)
• Easy to use display
• Remote monitoring options.



4NWP100161R0005 with its cost-effective ABB UPS technology guarantees high performance and is now available for market sectors with low power requirements: small server rooms, laboratory or industrial critical equipment, installations or security applications with similar power class can now take advantage of all the benefits offered by one of the 12 models in the PowerValue 11T G2 range.

4NWP100161R0005 is the industry's smallest footprint online UPS and features true online double conversion. This provides a flexible output frequency and isolates the UPS from upstream interference to provide a stable, well-regulated, transient-free and pure wave-free AC power supply.

A nominal output power factor of up to 1.0 (kVA = kW) means that the PowerValue 11T G2 provides 11% more active power than other UPS with a factor of 0.9. LUPS has been optimised for modern IT loads and to help reduce their energy cost through double conversion with up to 98% efficiency.

• Low input line interference: PF input ? 0.995 @ 100% linear load - TDI < 3%.
• Flexible configuration for scalable runtime: UPS and EBM with and without batteries (long backup)
• Adjustable DC voltage and battery charging current
• Digital charging technology to provide accurate current regulation and reduce charging ripple current
• LUPS comes with an integrated board and cables for parallel connection No additional hardware is required for this installation.



Configuration of the standard 4NWP100161R0005

• Tower model, IP20 UPS enclosure
• Single phase input and output
• Online double conversion UPS
• Parallel connection of up to three units for increased power up to 30 kW or improved redundancy (6-10 kVA only)
• LDC operator and status
• Wide range of input voltage frequencies
• Integrated batteries (B/B2 versions only)
• Automatic maintenance bypass switch (6-10 kVA only)
• Plug-and-play.
