Sentinel Dual is the best solution for powering Mission Critical electro-medical applications and devices that require maximum energy reliability. The flexibility of installation and use (thanks to the digital display and user replaceable battery module) and the many communication options available make Sentinel Dual suitable for a wide variety of applications, from IT to security.

Sentinel Dual can be installed in parallel with up to three units to increase capacity or configured to operate in N+1 mode, increasing the reliability of critical systems.

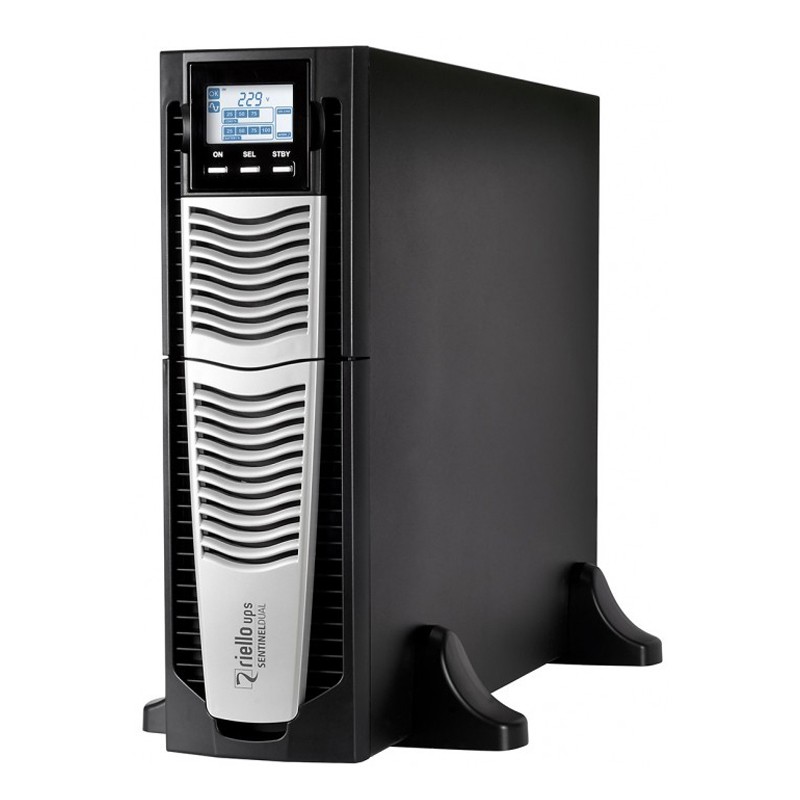

Sentinel Dual can be floor standing in a tower configuration or rack mounted for network and server applications. The Sentinel Dual range is available in 4 kVA and 5-6-8-10 kVA/kW models with ON LINE double conversion (VFI) technology: the load is constantly fed by the inverter, which delivers a filtered sinusoidal voltage that is stabilized in terms of voltage, shape and frequency. In addition, input and output filters greatly increase the immunity of the load to mains disturbances and lightning strikes.

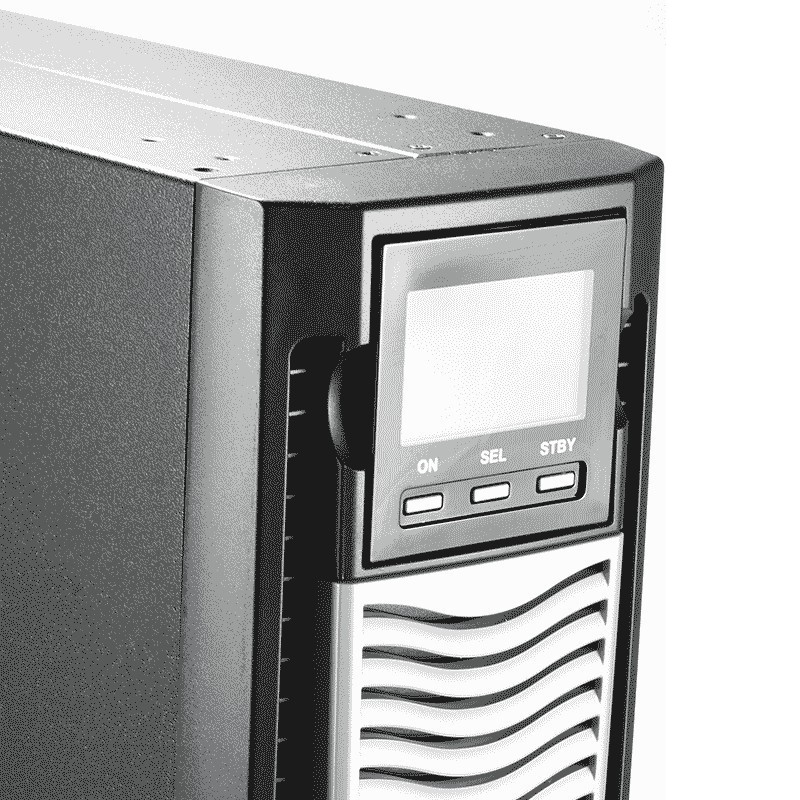

Technology and performance: ECO and SMART ACTIVE mode functions can be selected. Diagnostics: Standard digital display, RS232 and USB interfaces with downloadable PowerShield3 software, communication slot for connectivity accessories.

Features:

• Dual input No
• Nominal voltage V 220 / 230 / 240
• Voltage tolerance V 230 ±20%.
• Minimum voltage V 184
• Nominal frequency Hz 50 / 60 ±5
• Power factor >0.98
• Current distortion 5%.

BYPASS:

• Voltage tolerance V 180 / 264 (selectable in ECO or SMART ACTIVE mode)
• Frequency tolerance Selected frequency ±5% (user selectable)
• Overload times <110% continuous, 130% for 1 hour, 150% for 10 min, over 150% for 3 seconds.

OUTPUT

• Rated power VA 4000
• Active power W 3600
• Nominal voltage V 220 / 230 / 240 selectable
• Voltage distortion <1% with linear load / <3% with non-linear load
• Frequency Hz 50 / 60 selectable
• Static variation 1.5%.
• Dynamic variation 5% in 20 msec.
• Sinusoidal waveform.

BATTERIES:

• Type VRLA AGM lead acid, maintenance free.
• Recharge time 4-6 h.

GENERAL SPECIFICATIONS:

• Net weight kg 38
• Dimensions (WxDxH) mm 131x640x448 tower - 19x640x3U rack
• Efficiency up to 95% in ON LINE mode, 98% in ECO mode
• Protections Overcurrent - short circuit - overvoltage - undervoltage - thermal - excessive battery discharge
• Parallel operation no

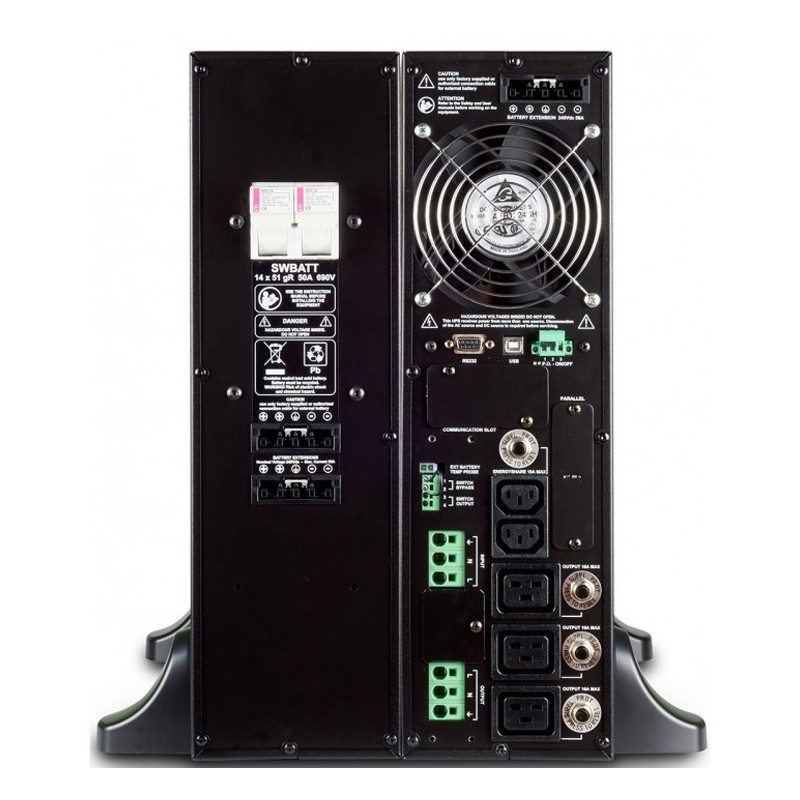

• Communications USB / RS232 / slot for communication interface / REPO + input contact
• Input connection Terminal block
• Output sockets Terminal block + 2 IEC 320 C13 + 1 IEC 320 C19.

Standards:

• European Directives: L V 2014/35/EU Low Voltage Directive EMC 2014/30/EU Electromagnetic Compatibility Directive Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; according to RoHS Classification according to IEC 62040-3 (Voltage Frequency Independent) VFI - SS - 111.

UPS ambient temperature

• 0 °C to +40 °C
• Recommended temperature for battery life +20 °C to +25 °C.
• Noise level at 1 m (ECO mode) dBA
• Standard equipment SB cable; handle kit.
