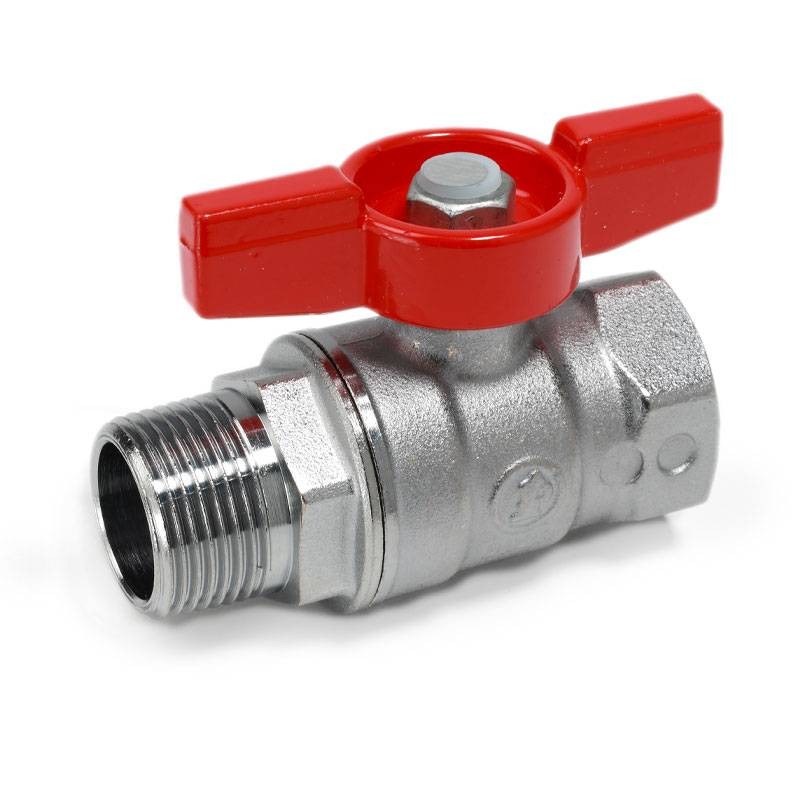

Giacomini M/F 1 1/4 butterfly ball valve red R254X006
GIM R254X006
8009902002343
Giacomini Red Butterfly Ball Valve is a versatile and reliable solution for plumbing, heating, and liquid hydrocarbon applications. It provides high performance and long service life through quality materials and functional design, with the following features:
- Connections: Male/Female 1 1/4 inch
- Material: Chrome-plated brass
- Handle: Butterfly, red painted aluminum
- Nominal diameter: 28 mm
- Kv: 73.5 m³/h
- Maximum operating pressure: With water/steam: 10.5 bar - With liquid hydrocarbons: 12 bar

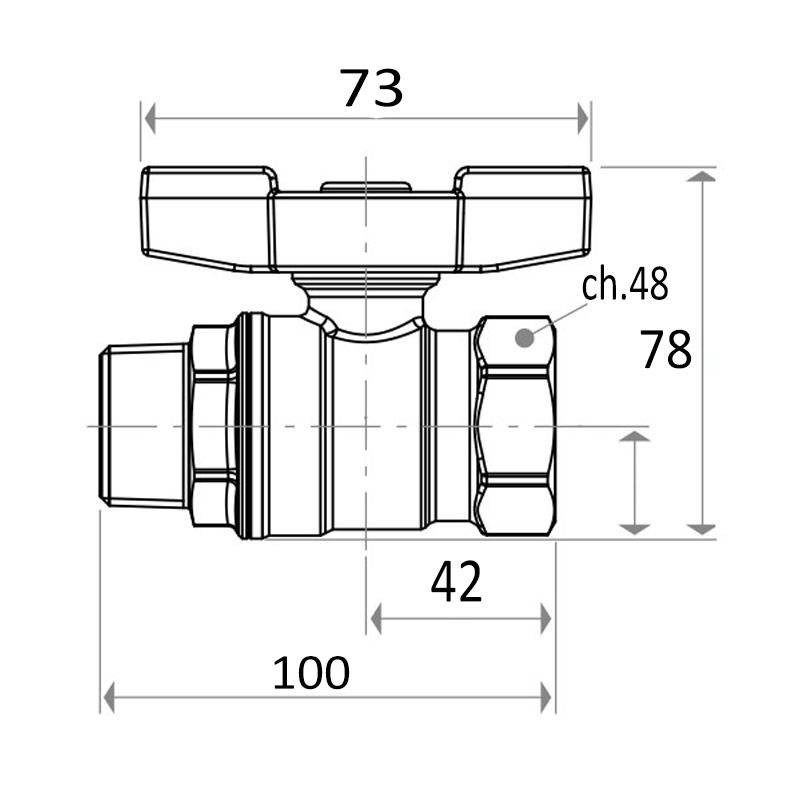

- Dimensions: 100x78x73xch.48 mm
€16.62
Items Available: 28
: 11
Giacomini M/F 1 1/4 butterfly ball valve with red handle
The valve is ideal for plumbing, heating and liquid hydrocarbon systems, meeting both residential and industrial needs.
Superior quality construction
Made of chrome-plated brass, the valve offers exceptional resistance to pressure, temperature and wear. The red aluminum butterfly handle is designed for easy and durable control.
Guaranteed safety and reliability
Equipped with a corrosion-resistant coated nut, warranty seal and hologram, the valve meets the highest standards of quality and safety.
Applications:
- Plumbing and heating systems
- Transportation of liquid hydrocarbons
- Residential and industrial systems
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- Connections: 1-1/4 inches
