Giacomini valve ball F-F 4 inch red lever handle R250X011
GIM R250X011
8009902000318
Giacomini Ball Valve with lever handle, is designed for versatile applications in heating, cooling, and conveying non-hazardous gases and liquid hydrocarbons, with the following features:
- Connections: Female/Female 4 in.
- Material: Brass valve with anti-corrosion nut for long service life
- Lever handle: Steel with red PVC coating
- Standard passage: Ideal for applications requiring smooth flow without excessive restriction
- O-Ring seal: Double sealing system on the control rod to ensure maximum safety and prevent leakage
- Quality seal: Nut with anti-corrosion coating and guarantee seal with hologram for product authenticity
€158.04
Items Available: 8
: 1

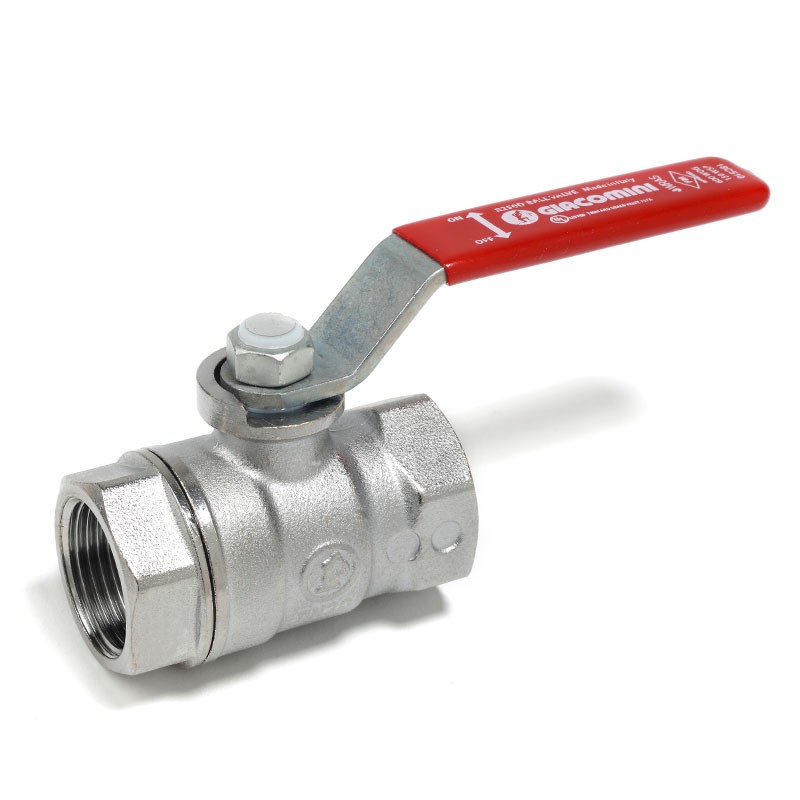

Giacomini ball valve F-F 4 inch red lever handle
- Suitable for water, nonhazardous gases and liquid hydrocarbons (within specified temperature and pressure limits)
- Operational from -20 to 185 degrees with various applications, including saturated steam and glycol solutions
- Advanced sealing system with double O-rings on the control rod
- Corrosion-resistant components for increased durability
- Ergonomic lever handle coated with red PVC for a comfortable, non-slip grip
Ideal applications
- Heating and cooling systems: For flow control of water and glycol solutions
- Industrial systems: For nonhazardous gases and liquid hydrocarbons
- High-temperature installations: Due to resistance up to 185 degrees with saturated steam
Technical Specifications
| Valve material | Brass |
|---|---|
| Threaded connections | Female-Female |
| Fitting size | 4 inches |
| Passage | Standard |
| Temperature range | -20 to 185 degrees (depending on fluid) |
| Max operating pressure (water) | 10.5 bar (1.05 MPa) |
| Max working pressure (hydrocarbons) | 12 bar (1.2 MPa) |
| Handle | Corrosion-resistant steel coated with red PVC |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 4 inches
