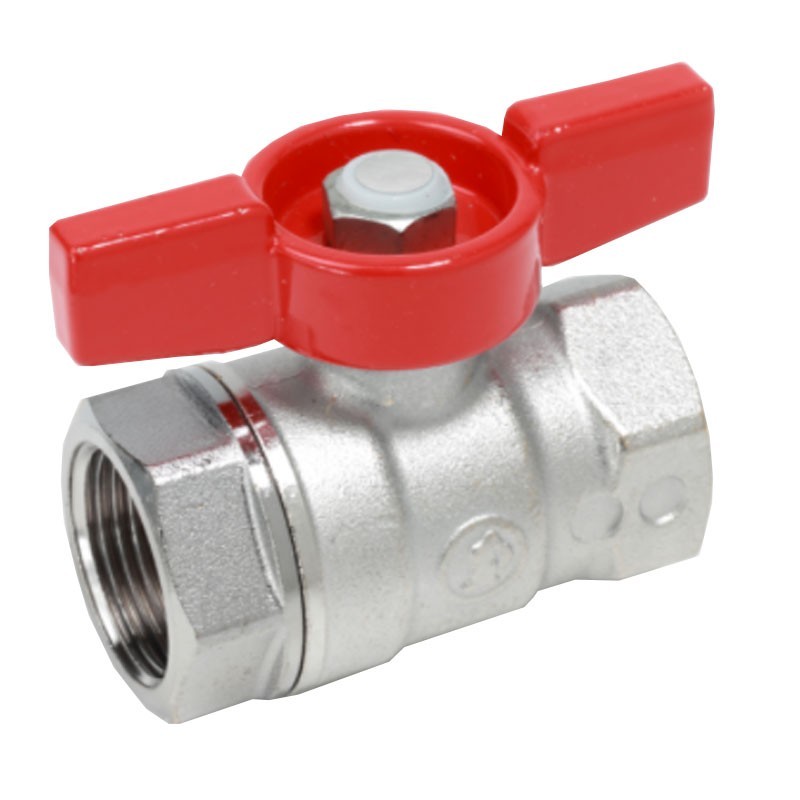

Giacomini valve F-F connections 3/4 red butterfly handle R251X004
GIM R251X004
8009902001179
Giacomini Butterfly Handle Ball Valve is a reliable and versatile solution for flow control in heating, cooling and non-hazardous gas or liquid hydrocarbon applications, with the following features:
- Connections: 3/4 inch female/female
- Material: Corrosion-resistant brass body
- Red painted aluminum butterfly handle for a secure and durable grip
- Standard passage: Ideal for applications requiring smooth flow without excessive restriction
- O-Ring seal: Double O-ring system on the control rod for maximum security against leakage
- Quality seal: Nut with anti-corrosion coating, warranty seal and hologram for authenticity
€6.16
Items Available: 209
: 65
Giacomini valve F-F connections 3/4 red butterfly handle
- Brass body and painted aluminum handle ensure resistance to corrosion and wear and tear
- Double O-ring system for enhanced sealing and leak prevention
- Operates at low temperatures down to -20 degrees and high temperatures up to 185 degrees
- Compatible with a variety of fluids, including water, non-hazardous gases and liquid hydrocarbons
- Butterfly handle facilitates use even in confined spaces
Ideal applications
- Heating and cooling systems: For flow control of water and glycol solutions
- Industrial systems: For nonhazardous gases and liquid hydrocarbons
- High-temperature installations: Perfect for saturated steam applications
Technical Specifications
| Valve Material. | Brass |
|---|---|
| Threaded connections | Female-Female |
| Fitting size | 3/4 inch |
| Passage | Standard |
| Handle type | Red painted aluminum butterfly |
| Minimum temperature | -20 degrees (with 50 percent glycol solutions) |
| Maximum temperature | +185 degrees (dry saturated steam) |
| Maximum operating pressure | 10.5 bar (water) 12 bar (liquid hydrocarbons) |
There are no reviews
Data sheet
- Type: Ball valves
- Connection: F/F
- Connections: 3/4 inches
