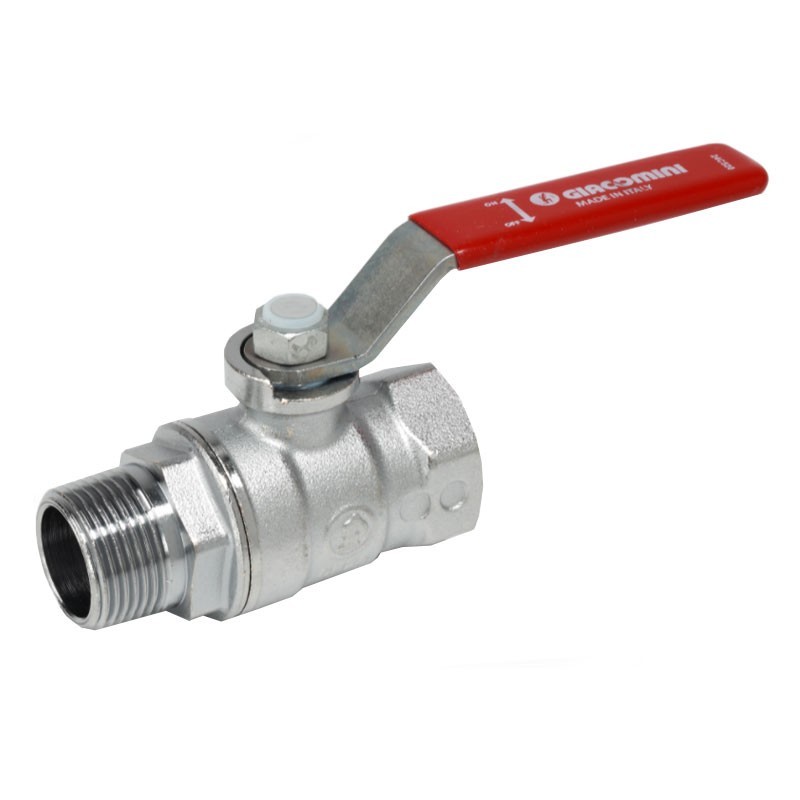

Giacomini Valve F-M Red Lever Handle 1 1/4 R254LX006
GIM R254LX006
8009902002510
Giacomini valve with red lever handle is ideal for plumbing, heating and liquid hydrocarbon systems. It provides reliability, strength and a standard passage for optimal flow, with the following features:
-
Connections: Male/Female 1 1/4 inch
-
Material: Chrome-plated brass
- Handle: Steel with red PVC coating, anti-corrosion treatment
- Maximum operating pressure: With water: 10.5 bar (1.05 MPa) - With liquid hydrocarbons: 12 bar (1.2 MPa)
€15.16
Items Available: 85
: 33
Giacomini M/F 1 1/4 valve with red lever handle
This ball valve is suitable for plumbing and heating systems as well as liquid hydrocarbon applications. Its sturdy construction makes it ideal for general domestic and industrial uses.
High-quality materials
Chrome-plated brass, offers corrosion resistance, ensuring long life even under harsh conditions.
High thermal and pressure resistance
The valve supports temperatures up to 185 degrees in dry saturated steam systems and pressures up to 10.5 bar, making it a reliable choice for complex systems.
Safety and reliability
Equipped with a control rod with double O-ring, warranty seal and corrosion-resistant coated nut, this valve ensures a perfect seal and safe operation.
Applications
- Plumbing and heating systems
- Transportation of liquid hydrocarbons
- Domestic and industrial applications
There are no reviews
Data sheet
- Type: Ball valves
- Connection: M/F
- Connections: 1-1/4 inches
