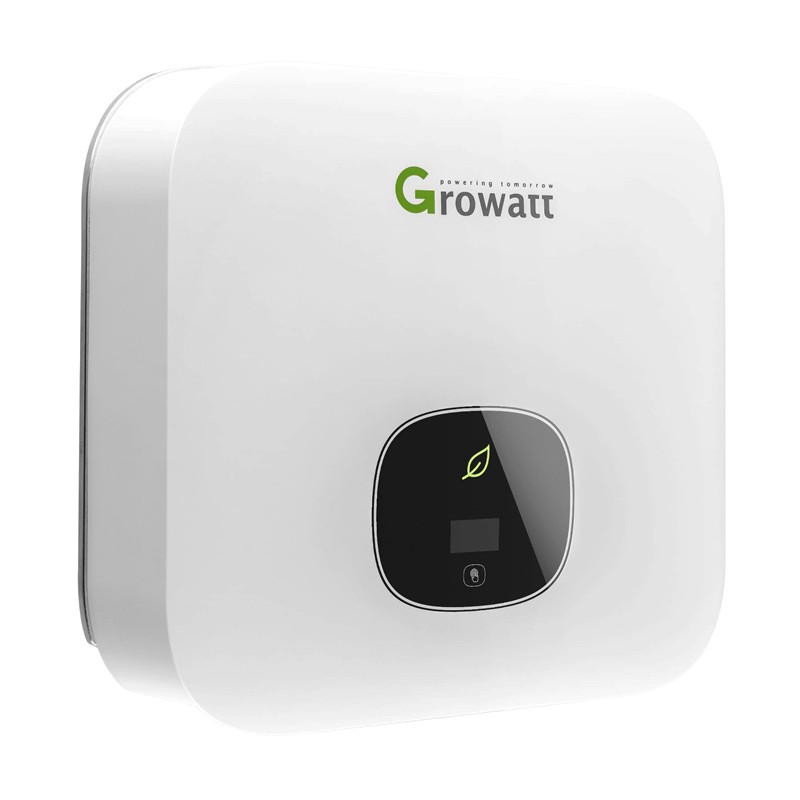

Single Phase GWMIN3000TLXE Growatt 3.0KW 2MPPT Photovoltaic Inverter
OMX GWMIN3000TLX
Inverter for photovoltaic Growatt model MIN 3000TL-XE:
- Nominal AC output power 3000W
- Number of MPP trackers 2MPPT
- Nominal AC voltage (range) 230V (180-280V)
Optional WIFI accessory to be purchased separately (code SHINEWIFIX).
€692.64
Out of stock
Incoming
Growatt Inverters MIN TL-XE series represent the top of their kind, combining in a compact design, all the technology and know-how already used for high power systems.
It 'a product of high efficiency, GUARANTEED FOR 10 YEARS, which combines the European design, the best Asian technology on the market, positioning this brand among the most important brands at the international level.
Growatt inverters have CEI 0-21 certification to be able to connect to the National Electricity Grid. They offer a guarantee of 10 years, a clear sign of the stability that this company offers to all its customers, and the high quality of the machines, on which Growatt is not afraid of comparisons.
Thanks to the quality of the materials and the high technology without transformer, this inverter is able to convert the direct current coming from solar panels into alternating current with an efficiency of 98.4%, managing the introduction of energy into the power grid through the energy meter.
Its operation is simple and completely automatic: it starts working as soon as it receives the first voltage from the solar panels, enough to exceed the minimum voltage threshold for switching on. When this threshold is no longer reached, in the evening, the inverter shuts down and stops feeding energy into the network, disconnecting from it.
In order to exploit the potential of the panels, even in situations of partial irradiation or shady areas, the inverter Growatt uses the technology of a double MPPT (Maximum Power Point Tracker), which is able to manage and constantly exploit the point of maximum power output from the photovoltaic panel based on solar radiation to which it is subjected.
It also integrates a type II DC overvoltage protection device.
Input parameters (DC)
- Maximum recommended PV power (per STC module) 4200W
- Maximum DC voltage 500V
- Activation voltage (V start) 100V
- Nominal Voltage 360V
- MPPT voltage range 80V-500V
- Number of MPP Trackers 2
- Strings for MPP 1 trackers
- Max. input current for MPPT 13.5A
- Max DC current for MPPT 16.9A
Output Parameters (AC)
- Nominal AC output power 3000W
- Max apparent AC power 3000VA
- Nominal AC voltage (range) 230V (180-280V)
- AC Mains Frequency (range) 50/60Hz (45-55Hz/55-65Hz)
- Maximum output current 13.6A
- Configurable power factor 0.8 forward...0.8 reverse
- Total harmonic distortion THDI <3%.
- AC connection Single phase
Conversion efficiency
- Maximum Efficiency 98.2%
- Euro Efficiency 97.1%
- MPPT Efficiency 99.9%
Safety devices
- DC reverse polarity protection
- DC disconnect switch
- DC/AC overvoltage protection Type II / Type III
- Insulation resistance monitoring
- AC short circuit protection
- Ground Fault Detection Device
- Network monitoring
- Anti-islading protection
- Device monitor. leakage current on all poles
Features:
- Dimensions (W/H/D) in mm 375/350/160mm
- Weight 10.8kg
- Operating temperature range 25°C/+60°C
- Consumption: night mode < 1W
- Topology Transformerless
- Cooling system Natural convection
- Environmental protection degree IP65
- Relative humidity 0-100%
- Altitude 4000 meters
- DC H4/MC4 connection optional not included
- AC connection with connector
- OLED+LED/WIFI+APP display
- Interfaces :USB/RS485
- Warranty: 10 years
There are no reviews
Data sheet
- Type: Inverter
- Power: 1 to 5KW
- Degree of protection: IP65
- MPPT: 2
- Connection: Single-phase
