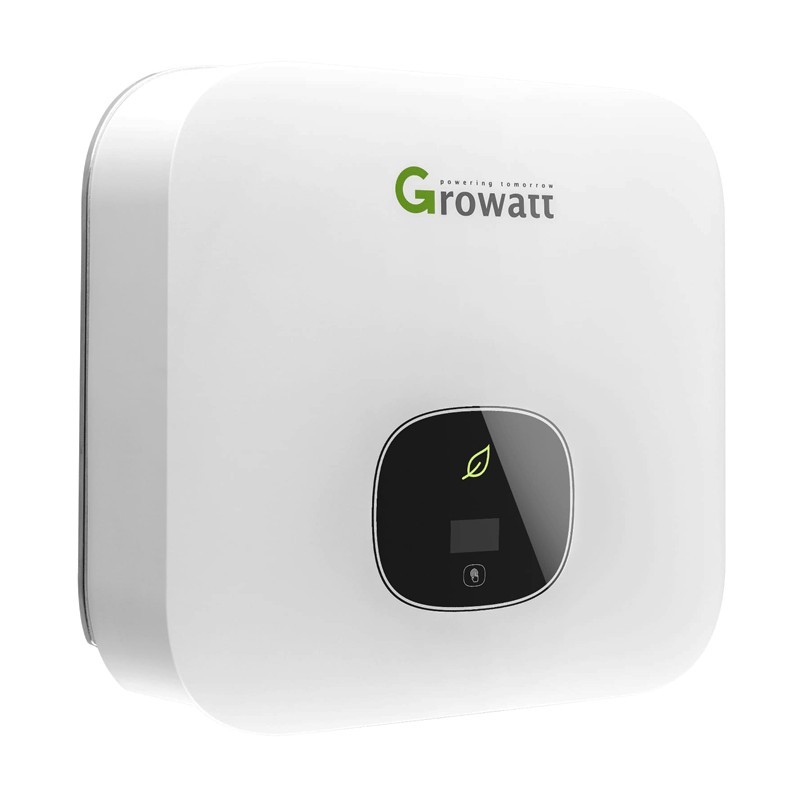

Inverter for photovoltaic Growatt 5.0KW 2MPPT Single Phase GWMIN5000TLXE
OMX GWMIN5000TLX
Growatt model MIN-TLXE 5.0KW single-phase photovoltaic inverter:
- Rated AC output power 5000W
- Number of MPP trackers 2MPPT
- Nominal AC voltage (range) 230V (180-280V)
Optional WIFI accessory to be purchased separately (code SHINEWIFIX).
€889.49
Out of stock
Incoming
Growatt Inverters of the MIN TL-XE series represent the top of their kind, combining in a compact design, all the technology and know-how already used for large power systems.
It is a high-efficiency product, GUARANTEED FOR 10 YEARS, combining European design with the best Asian technology on the market, positioning this brand among the most important brands internationally.
Growatt inverters possess CEI 0-21 Certification to be able to connect to the National Electricity Grid. They offer a warranty of 10 years, a clear sign of the stability that this company offers to all its customers, and of the very high quality of the machines, on which Growatt fears no comparison.
Thanks to the quality of materials and high transformerless technology, this inverter is able to convert direct current from solar panels into alternating current with an efficiency of 98.4 percent, managing the feeding of energy into the grid.
Its operation is simple and fully automatic: it starts working as soon as it receives the first voltages from the solar panels, which are sufficient to exceed the minimum voltage threshold for switching on. When this threshold is no longer reached, in the evening, the inverter shuts down and stops feeding energy into the grid, disconnecting from it.
To be able to make the most of the panels' potential, even in situations of partial irradiation or shady areas, the Growatt inverter uses dual MPPT (Maximum Power Point Tracker) technology, which is able to constantly manage and exploit the maximum power point delivered by the PV panel according to the solar irradiation to which it is subjected.
It also integrates a type II DC overvoltage protection device.
Features:
Input parameters (DC):
- Maximum recommended PV power (per STC module) 7000W
- Maximum DC voltage 550V
- Activation voltage (V start) 100V
- Rated voltage 360V
- MPPT voltage range 80V-550V
- Number of MPP trackers 2
- Strings for MPP 1 trackers
- Max. input current for MPPT 13.5A
- Max dc current for MPPT 16.9A
Output parameters (AC):
- Rated AC output power 5000W
- Max AC apparent power 5000VA
- Nominal AC voltage (range) 230V (180-280V)
- AC mains frequency (range) 50/60 Hz (45-55Hz/55-65 Hz)
- Maximum output current 22.7A
- Configurable power factor 0.8 in advance...0.8 in retardation
- Total harmonic distortion THDI <3%
- AC connection Single phase
Conversion efficiency:
- Maximum Efficiency 98.4%
- Euro Efficiency 97.5%
- MPPT Efficiency 99.9%
Safety features:
- DC reverse polarity protection
- DC disconnect switch
- DC/AC overvoltage protection Type II / Type III
- Insulation resistance monitoring
- AC short-circuit protection
- Ground fault detection device
- Network monitoring
- Anti-islading protection
- Device monitor. leakage current on all poles
Features:
- Dimensions (W / H / D) in mm 375/350/160mm
- Weight 10.8kg
- Operating temperature range 25°C/+60°C
- Power consumption: night mode < 1W
- Topology Transformerless
- Cooling system Natural convection
- Environmental protection rating IP65
- Relative humidity 0-100%
- Altitude 4000 meters
- DC H4/MC4 connection optional not included
- AC connection with connector
- OLED+LED display/WIFI+APP
- Interfaces: USB/RS485
- Warranty: 10 years
There are no reviews
Data sheet
- Type: Inverter
- Power: 1 to 5KW
- MPPT: 2
- Connection: Single-phase
