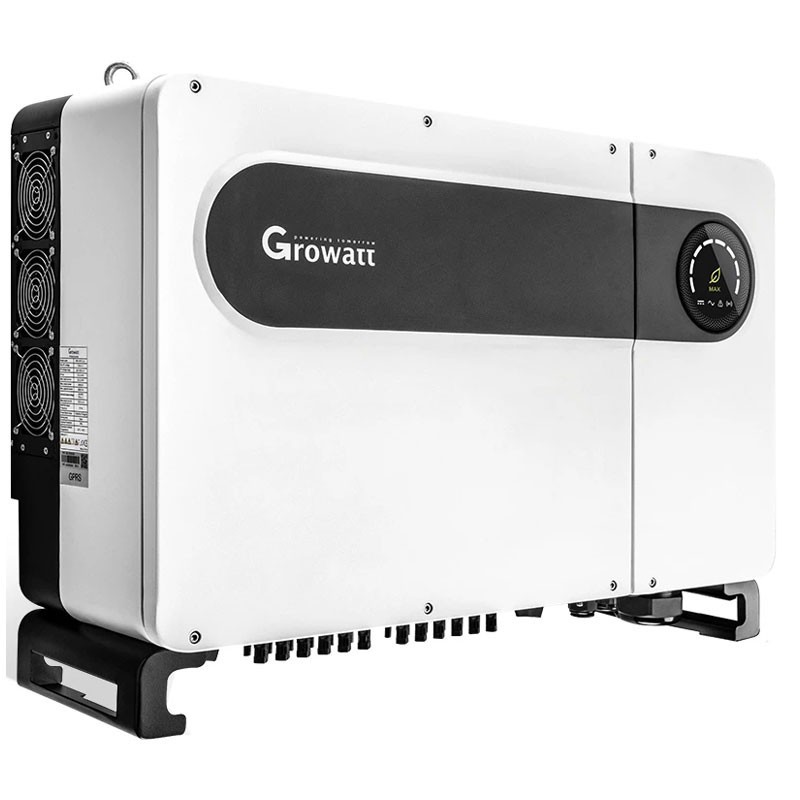

Growatt Three-phase Photovoltaic Inverter 50KW 6MPPT GWMAX50KTL3LV

Growatt
Growatt
OMX GWMAX50KTL3LV

Growatt three-phase photovoltaic inverter:



  • Rated AC output power 50KW
  • Number of MPP trackers 6MPPT
  • Integrated DC Disconnect Switch
  • Integrated AC/DC surge protection type II
  • Interfaces: USB/RS485 integrated



Compatible Accessories:

  • Growatt Shine Master for RS485 Cable Connection for Multinverter (SHINEMASTER).
  • Growatt SHINE WI-FI Wifi Module for Photovoltaic Inverters (SHINEWIFIX)
Do you have questions about this product or did you not find what you were looking for? Ask us!
Growatt Three-phase Photovoltaic Inverter 50KW 6MPPT GWMAX50KTL3LV
€3,284.66
€3,284.66

€3,284.66
Tax included
Calculate shipping cost
Out of stock
Further availability of the manufacturer
Incoming
€3,284.66

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:




Input parameters (DC):

  • Maximum recommended PV power (per STC module) 75000W
  • Maximum DC voltage 1100V
  • Activation voltage (V start) 250V
  • Rated voltage 585V
  • MPPT voltage range 200V-1000V
  • Number of MPP trackers 6
  • Strings for MPP trackers 2
  • Max. input current for MPPT 26A
  • Max dc current for MPPT 32A




Output parameters (AC):

  • Rated AC output power 50000W
  • Max AC apparent power 55000VA
  • Nominal AC voltage (range) 220V/380V, 230V/400V (340-440V)
  • AC mains frequency (range) 50/60 Hz (45-55Hz/55-65 Hz)
  • Maximum output current 80.5A
  • Configurable power factor 0.8 in advance...0.8 in retardation
  • Total harmonic distortion THDI <3%
  • AC connection 3W+N+PE




Conversion efficiency:

  • Maximum Efficiency 98.8%
  • Euro Efficiency 98.4%
  • MPPT Efficiency 99.9%




Safety features:

  • DC reverse polarity protection
  • DC disconnect switch
  • AC/DC overvoltage protection Type II / Type II
  • Insulation resistance monitoring
  • AC short-circuit protection
  • Ground fault detection device
  • Network monitoring
  • Anti-islading protection
  • Device monitor. leakage current on all poles
  • String monitoring
  • AFCI protection




General data:

  • Dimensions (W / H / D) in mm 860/600/300mm
  • Weight 82 kg
  • Operating temperature range 25°C ... +60°C
  • Power consumption: night mode < 1W
  • Topology Transformerless
  • Cooling system controlled ventilation
  • Environmental protection rating IP65
  • Relative humidity 0~100%
  • Altitude 4000 meters
  • DC H4/MC4 connection (Optional)
  • AC Connection Cable Grommet + Eyelet Terminals
  • LED Display/WIFI+APP
  • Warranty: 10 years



Certifications:

  • CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116,IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565

There are no reviews

Data sheet

Type:
Inverter
Power:
31KW to 60KW
Degree of protection:
IP65
MPPT:
6
Connection:
Three-phase
