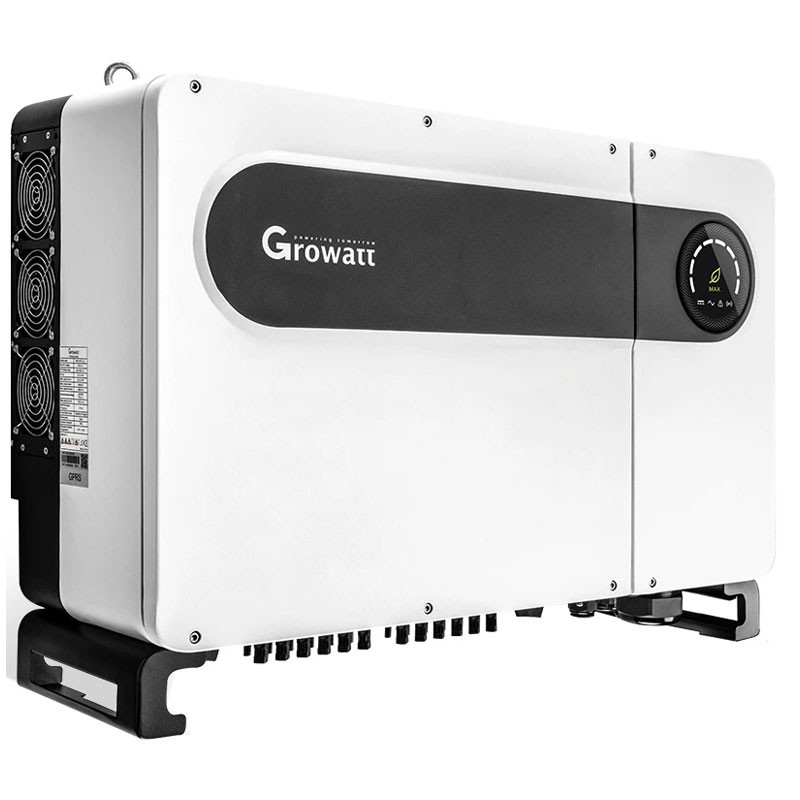

Growatt Max Photovoltaic Inverter 80KW Three-Phase 7MPPT GWMAX80KTL3LV
OMX GWMAX80KTL3LV
Growatt Max-KTL3 LV Photovoltaic Inverter:
- Rated AC output power 80KW
- Rated AC voltage range 220V/380V, 230V/400V (340-440V) Three-phase
- Number of MPP trackers 7MPPT
- Communication Interfaces: USB/RS485 integrated
€4,606.06
Out of stock
Incoming
Suitable for commercial rooftop and large ground-mounted installations, the grid-connected Growatt Max series inverter has a capacity of up to 80 kW.
The industry's first quad-core inverter, it provides fast processing capacity to handle transient grid faults.
With optimized design, it also provides a 'weighted efficiency of 98.67% 0.3% higher than the industry average level, together with 6/7 extraordinary MPP trackers ensures high system efficiency.
Features:
Input parameters (DC):
- Maximum recommended PV power (per STC module) 120000W
- Maximum DC voltage 1100V
- Activation voltage (V start) 250V
- Rated voltage 600V
- MPPT voltage range 200V-1000V
- Number of MPP trackers 7
- Strings for MPP trackers 2
- Max. input current for MPPT 26A
- Max dc current for MPPT 32A
Output parameters (AC):
- Rated AC output power 80000W
- Max AC apparent power 88800VA
- Rated AC voltage (range) 220V/380V, 230V/400V (340-440V)
- AC mains frequency (range) 50/60 Hz (45-55Hz/55-65 Hz)
- Maximum output current 128.8A
- Configurable power factor 0.8 forward...0.8 backward
- Total harmonic distortion THDI <3%
- AC connection 3W+N+PE
Conversion efficiency:
- Maximum Efficiency 99%
- Euro Efficiency 98.5%
- MPPT Efficiency 99.9%
Safety features:
- DC reverse polarity protection
- DC disconnect switch
- AC/DC overvoltage protection Type II / Type II
- Insulation resistance monitoring
- AC short-circuit protection
- Ground fault detection device
- Network monitoring
- Anti-islading protection
- Device monitor. leakage current on all poles
- String monitoring
- AFCI protection
General data:
- Dimensions (W / H / D) in mm 860/600/300mm
- Weight 86kg
- Operating temperature range 25°C ... +60°C
- Power consumption: night mode < 1W
- Topology Transformerless
- Cooling system Controlled ventilation
- Environmental protection rating IP65
- Relative humidity 0-100%
- Altitude 4000 meters
- Optional DC connection not integrated
- AC Connection Cable Grommet + Eyelet Terminals
- LED Display/WIFI+APP
- Built-in USB/RS485 Interfaces
- Warranty: 5 years
CE Certificates:
- CE , VDE0126, Greece, EN50438, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI 0-16, N4105, DRRG G98/G99, G100, AS/NZS3100, AS4777, UNE206007, NRS 097-2-1, MEA , PEA , KSC8565
There are no reviews
Data sheet
- Type: Inverter
- Power: 61KW to 100KW
- Degree of protection: IP66
- MPPT: 7
- Connection: Three-phase
