Tecnogas gas detector kit for natural gas and lpg 230 Vac 3/4 00000554011
TGS 00000554011
8058699044364

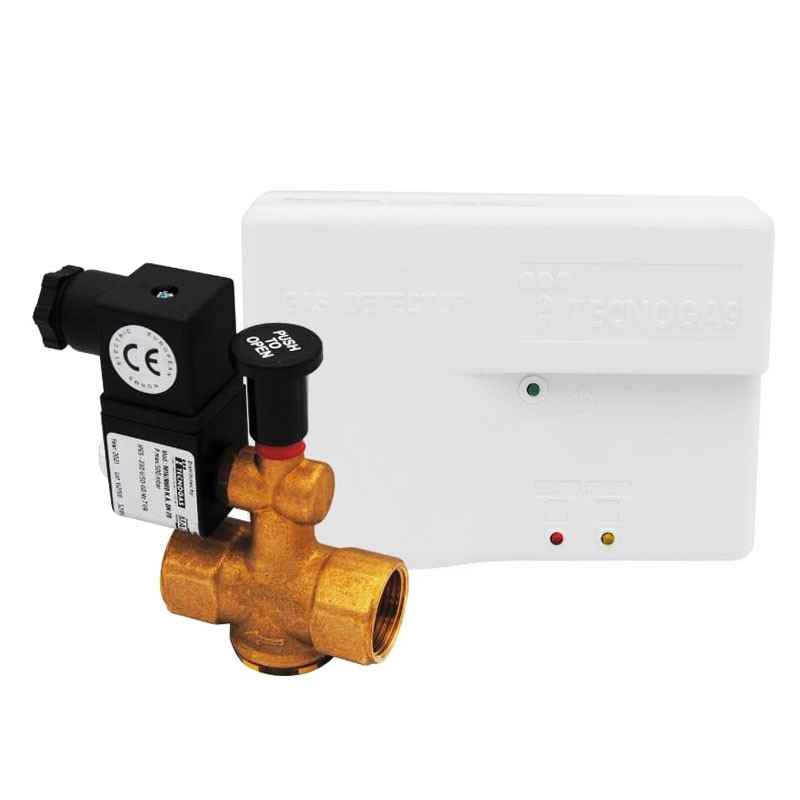

Tecnogas Natural gas and LPG Detector Kit CD98 with Solenoid Valve, is a complete and reliable solution for home and industrial safety, designed to detect methane and LPG gas. Equipped with N.A. manual reset solenoid valve, it offers advanced protection with catalytic sensors with high sensitivity and selectivity. Ideal for preventing gas leaks and ensuring a safe environment, consisting of:
-
CD98 Gas Detector Sensor
-
N.O. Solenoid Valve 50331
€64.45
Items Available: 86
: 24

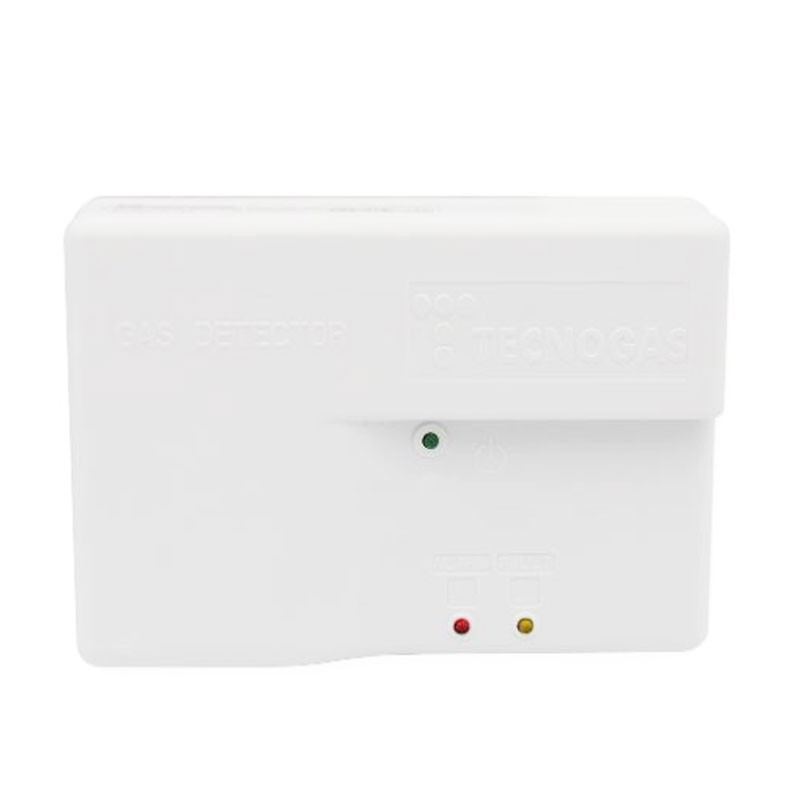

CD98 Gas Detector Sensor
Advanced Linearity and Selectivity
The catalytic sensor ensures detection proportional to the concentration of combustible gases, reacting only in the presence of hazardous gases and ignoring common substances such as alcohols, cooking vapors or detergents.
Stability in Variable Environments
Thanks to the internal thermal compensator, the device maintains the same detection accuracy regardless of ambient temperature or humidity.
LED indicators with three levels of indication:
-
Green (ON): Power on
-
Yellow (FAULT): Sensor failure
-
Red (ALARM): Presence of gas detected

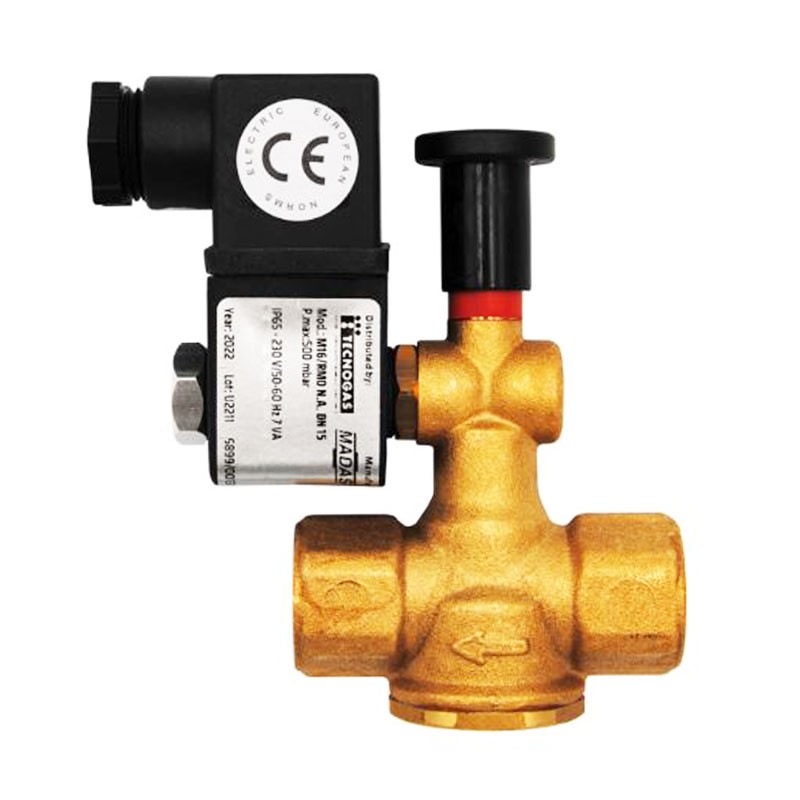

Solenoid Valve No. 50331
Quality Materials and Design
Made of brass, the solenoid valve is designed to withstand high pressures up to 6 bar, ensuring durability and reliability even under severe conditions.
Performance and Safety
-
IP65 degree of protection: Resistant to dust and splashing water
-
Secure wiring: With M20 x 1.5 cable gland for stable connection
-
Manual reset: Ensures precise control in case of emergency
Applications
The kit is ideal for installation in homes, kitchens, technical rooms and industrial environments, providing protection against methane and LPG gas leaks. Due to its reliability and ease of use, it is the perfect choice for ensuring the safety of installations.
Technical Specifications Gas Detector CD98
| Feature | Detail |
|---|---|
| Gas Detectable | LPG - sku 554015 / 554011 / 554010 Methane - sku 554012 / 554013 / 554014 |
| Power supply | 230 Vac |
| Power consumption | 15 mA |
| Preheating time | 20 seconds |
| Degree of protection | IP42 |
| Led Indicators | Green (ON): when on, signals the presence of power to the detector Yellow (FAULT): when on, signals a sensor failure Red (ALARM): when on, signals an alarm |
| Connections | 3/4 |
| Dimensions | 92x130x32 mm (WxHxD) |
Technical Specifications Solenoid Valve 50331
| Feature | Detail |
|---|---|
| Use | Non-aggressive gases of the three families (dry gases) |
| Supply voltages | 230V 50 - 60 Hz (single-phase only, the unit will not operate if powered three-phase) |
| Electrical wiring | M20 x 1.5 cable gland |
| Power consumption | 230 V |
| Maximum operating pressure | 500 mbar or 6 bar |
| Degree of protection | IP65 |
| Material | Body and coil holder block made of brass monoblock |
| Connections | F/F 3/4 |
There are no reviews
Data sheet
- Type: Gas Detectors
- Model: Natural gas/LPG
- Installation: Internal
- Connections: 3/4 inches
