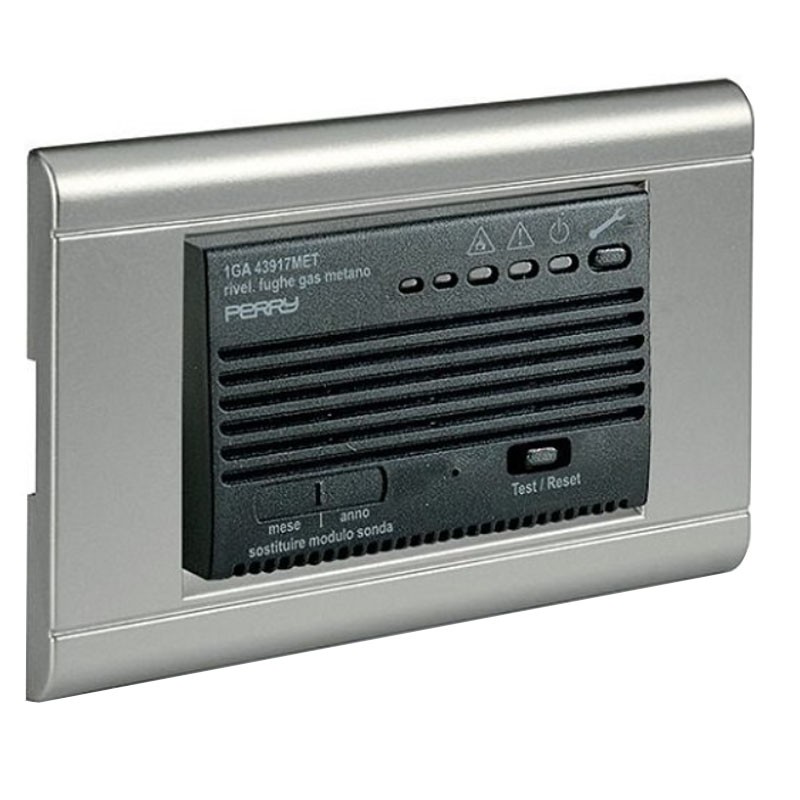

Built-in gas detector Perry METANO for modules 503 230V 1GA43917/MET
PER 1GA43917MET
9000004129739
Perry flush-mounted natural gas detector with replaceable sensor/probe module, with the following features:
- 230V AC 50Hz power supply
- Output 1 potential-free deviation contact: 6(2)A/250V AC
- Microprocessor with smoke selection programme to avoid false alarms
- Relay for solenoid valve control: 1 potential-free changeover contact
- Relay contact rating (max): 6(2) A / 250 V ~
- Degree of protection: IP40
- Insulation type: Class II
- Application area: Domestic - type A
- Semiconductor sensor: Installed inside the probe module
- Operating temperature limits: - 10 °C to + 40 °C
- Alarm intervention: 10% LEL (Lower Explosive Limit) for both models
Three finishing faceplates are included in the package.
€103.65
Items Available: 50
: 26
This 3-module flush-mounted detector, compatible with the most popular civil series, helps to ensure the safety of civil environments where domestic gas appliances such as boilers, cookers and boilers are installed. The device is composed of a fixed power supply/relay module and a removable probe module, which must be replaced after 5 years of continuous use; this allows savings in purchase and installation costs, with a lower impact on the environment due to the extension of the life of the power supply/relay module by another 5 years.
Main technical innovations:
- Device equipped with a microprocessor control circuit with self-diagnostic tasks that ensures perfect sensor efficiency over time.
- Sensor fitted with a special selective filter to avoid alarms due to the presence of undetectable gas vapours, such as cooking vapours, cleaning liquid vapours, etc.
- Device equipped with an operating time counter to signal the necessary replacement of the probe module after 5 years of use.
- Luminous (red LED) and acoustic alarm signal.
- TEST system (to check the correct operation of the device) and Reset with a single button
- Gas detectors are equipped with an output relay that can control a valve to shut off the gas supply
Other technical features:
- Beeper: 85 dB at 1 metre
- Sensor warm-up time at switch-on: 1 minute
- Storage temperature limits: - 15 °C ÷ + 50 °C
- Reference standards for CE marking LVD - EMC EN 50270
- Microprocessor with timer for product revision signalling every 5 years
- Alarm memory
- ON / TEST selector
- Self-diagnosis test
- Warning buzzer 85dB at 1 m
- ON indication LED
- LED fault indication
- Alarm status indication LED
installato in sostituzione di altro identico niente da dire
Servizio puntuale, veloce e preciso. Complimenti e grazie.
Ottimo prodotto originale , lo consiglio
Prodotto noto. Ha sempre funzionato. Per fortuna non è mai entrato in funzione per una fuga di gas
prodotto gia in uso nella mia abitazione
Ottimo rilevatore gas un po' più costoso di altri similari ma a mio parere di migliore qualità
come da specifiche, nulla da dire in più
Data sheet
- Type: Gas Detectors
- Model: Natural gas
- Installation: Recessed
