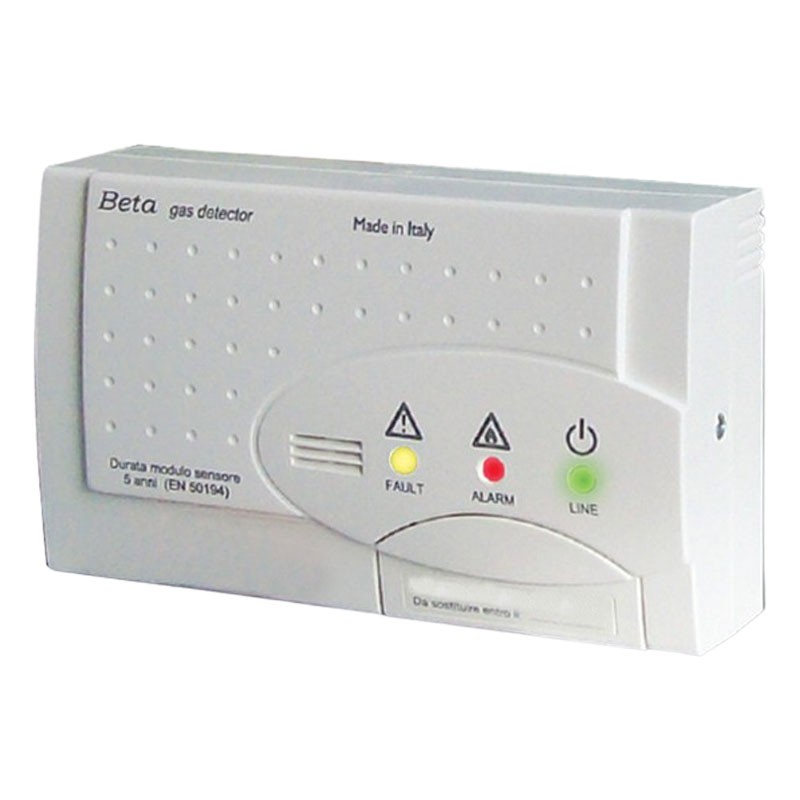

Geca BETA 752 LPG Detector230V with removable sensor 37521605
GEC 37521605
8028399006245
Geca BETA 752 LPG Detector is a device designed for LPG leak detection in domestic and commercial environments. Equipped with a removable catalytic sensor, it signals the presence of gas with an optical and acoustic alarm and automatically activates a solenoid valve thanks to the built-in relay, with the following features:
-
Removable catalytic sensor: Easy to replace at end of life cycle
-
Visual alarm: Red LED and audible (85 dB at 1 m) for immediate action
-
Relay for solenoid valve: Turns off gas flow in case of leakage
-
Power supply: 230V AC
-
Installation: Wall-mounted, simple and safe
€76.79
Items Available: 14
: 9
Geca LPG Detector: Timely Accuracy, Replaceable Sensor and Safety Relay
Timely and accurate detection of LPG
The device is calibrated to activate at 10% of the LEL (Lower Explosive Limit), covering a measurement range from 0 to 20% LEL, ensuring reliable protection in the event of a leak.
Quick maintenance with replaceable sensor
At the end of the sensor's service life, an indicator light signals the necessary replacement. The procedure is simple thanks to the front flap, without disassembly.
Active safety with relay output
Potential-free relay allows connection of a gas shut-off solenoid valve to cut off the power supply in case of leakage, avoiding dangerous situations.
Technical Characteristics Geca LPG Detector
| Feature | Value |
|---|---|
| Sensor | Removable catalytic |
| Power supply | 230 Vac - 50/60 Hz / 12 VDC |
| Power consumption | 4.5 VA (230 V) / 2.5 W (12 V) |
| Trip threshold | 10% LEL |
| Measuring range | 0-20% LEL |
| Acoustic alarm | 85 dB(A) at 1 m |
| Optical alarm | Red LED |
| Output relay | For solenoid valve control |
| Degree of protection | IP42 |
| Certification | EN 50194 |
| Installation | Wall-mounted |
| Color | White |
There are no reviews
Data sheet
- Type: Gas Detectors
- Model: GPL
- Installation: Wall-mounted
