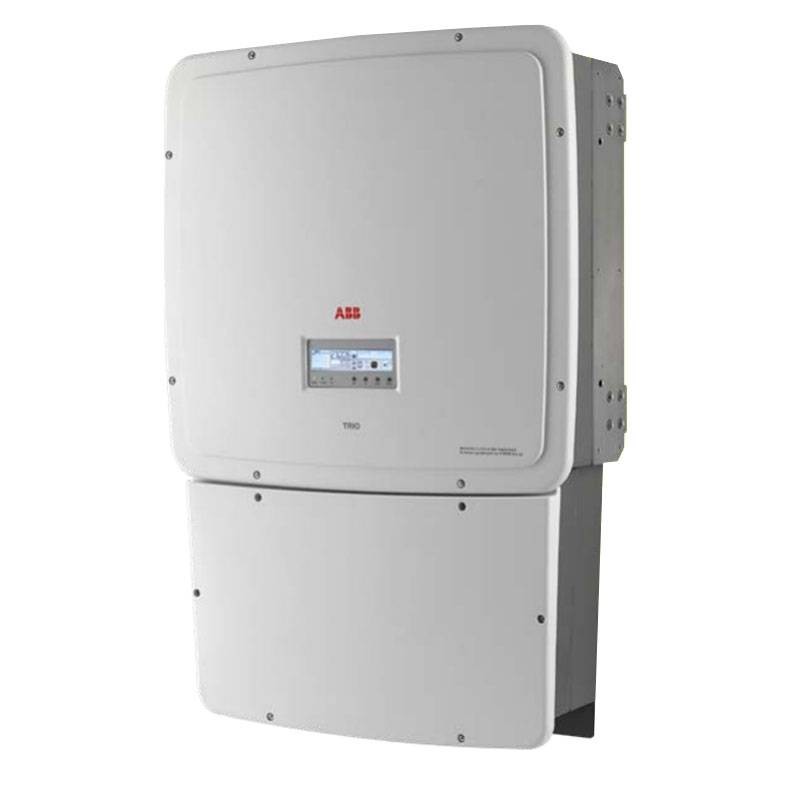

The TRIO 27.6 inverter for commercial applications offers greater flexibility and control options to installers who want to build large systems with variable orientation.




The dual input section with independent MPPT tracking enables optimal energy harvesting even when strings are oriented in different directions. The TRIO features a fast and accurate MPPT algorithm for real-time maximum power point tracking and improved energy harvesting.




High efficiency at all output voltage levels:

• Flat efficiency curves ensure high efficiency at all output levels by ensuring consistent and stable performance across the entire input voltage and output power range. The wide input voltage range makes the inverter suitable for systems with smaller string sizes.



Key features:

• DC/AC conversion unit with three-phase bridge topology
• Transformerless topology
• Each inverter is programmed with specific grid standards that can be installed directly in the field
• Removable wiring box for easy installation
• Wide input voltage range
• Built-in string combiner with several configuration options, including a DC disconnect switch complying with international standards (versions -S2, -S1J, - S2J, -S2F and -S2X)
• Natural convection cooling for maximum reliability
• Outdoor enclosure for use in any environmental conditions
• Possibility of connecting external sensors for monitoring environmental conditions
• DC auxiliary output (24 V, 300 mA)



Features:



Input:

• Maximum absolute DC input voltage 1000V
• Input DC trigger voltage 430 V (adj. 250...500 V)
• Input DC voltage operating range 0.7 x Vstart950 V (min 200 V)
• Rated input DC voltage 620V
• Rated DC input power 28600 W
• Number of independent MPPTs 2
• Maximum DC input power for each MPPT 16000 W
• DC voltage range with parallel MPPT configuration at P 500...800 V
• DC power limitation with MPPT configuration in parallel Derating from max to zero (800 V?VMPPT?950 V)
• DC power limitation for each MPPT with independent MPPT configuration at Pacr, example of maximum unbalance 16000 W (500 V?VMPPT?800 V) other channel: Pdcr-16000 W (400 V?VMPPT?800 V)
• Maximum DC input current for each MPPT 64.0 A / 32.0 A
• Maximum input short-circuit current for each MPPT 40A
• Number of input DC connection pairs for each MPPT 1 (5 in the -S2X and -S2F versions)
• DC connection type Screw terminal block in standard and -S2 versions



Input protections:

• Reverse polarity protection Yes, from current-limited source.
• Input overvoltage protection for each MPPT-varisor Yes, 4
• Input overvoltage protection for each MPPT-discharge for DIN rail (versions -S2X, -S1J and -S2J) -S2X: Type 2
• Insulation control In accordance with local regulations
• DC disconnect characteristics for each MPPT (DC disconnect version) 40 A / 1000 V
• Fuse characteristics (where present) 15 A / 1000 V



Output:

• Type of AC connection to the grid Three-phase 3F + PE or 3F+N+PE
• Rated AC power output 27600W
• Maximum AC power output 30000W
• Maximum apparent power 30670 VA
• Rated AC output voltage 400V
• Output AC voltage range 320...480V
• Maximum AC output current 45A
• Contribution to short circuit current 46A
• Rated output frequency 50 Hz / 60 Hz
• Output frequency range 47...53 Hz / 5763 Hz
• Rated power factor and adjustability range > 0.995, adj. ± 0.9 with Pacr =27.6 kW, ± 0.8 with max 30 kVA
• Total current harmonic distortion < 3%
• Type of AC connections Screw terminal block, cable press PG36



Output protections:

• Anti-islanding protection In accordance with local regulations.
• Maximum external overcurrent protection AC 63A
• Output overvoltage protection - varistor 4
• Output overvoltage protection - DIN rail arrester (-S2X version) 4 (Type 2)



Operating performance:

• Maximum efficiency (?max) 98.2%
• Weighted efficiency (EURO/CEC) 98.0% / 98.0%
• Power supply threshold 40 W
• Nighttime consumption < 0.6 W



Environmental:

• Ambient temperature -25...+60°C /-13...140°F with derating above 45°C/113°F
• Relative humidity 0...100% with condensation
• Noise emission pressure, typical 50 dBA @ 1 m
• Maximum operating altitude without derating 2000 m / 6560 ft



Physical characteristics:

• IP65 environmental protection rating
• Cooling system Natural
• Dimensions (H x W x D) 1061 mm x 702 mm x 292 mm / 41.7 x 27.6 x 11.5
• Weight < 75.0 kg / 165.4 lbs (standard version)
• Mounting system Wall brackets



Safety:

• Insulation level No transformer
• Certifications CE (50 Hz only), RCM
• EMC and safety standards EN 50178, IEC/EN 62109-1, IEC/EN 62109-2, AS/NZS 3100, AS/NZS 60950.1, EN 61000-6-2, EN 61000-6-3, EN 61000-3-11, EN 61000-3-12
• Grid connection standards (check availability through sales channel) CEI 0-21, CEI 0-16, DIN V VDE V 0126-1-1, VDE-AR-N 4105, G59/3, C10/11, EN 50438 (not for all national variants), RD 1699, RD 413, RD 661, P.O. 12.3, AS 4777, BDEW, NRS-097-2-1, MEA, IEC 61727, IEC 62116, Ordinul 30/2013, VFR 2014
