Vortice VORTKAPPA Vacuum cleaner for hood diameter 100 10950
VOR 0000010950
8010300109503

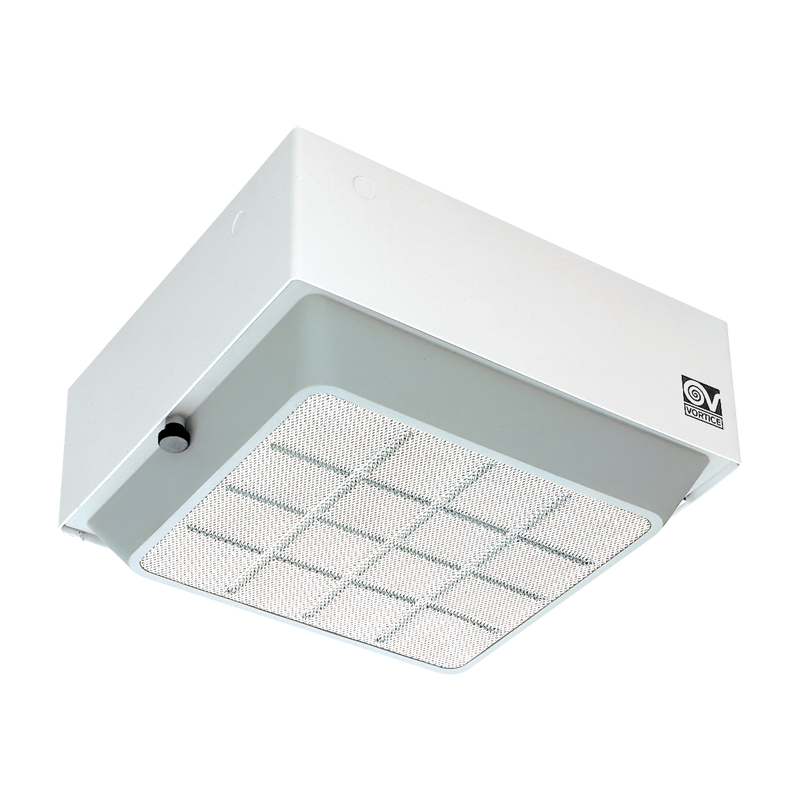

VORT KAPPA Vortice vacuum cleaner model from under hood, centrifugal Rated Duct Diameter 100 mm.
€293.00
Out of stock
Incoming
Features:
- Suitable for intermittent ventilation of small domestic kitchens
- Metal case, frame and engine holder; auger
- Impeller and shut-off valves made of heat-resistant, self-extinguishing and anti-drip material
- High efficiency electronic commutated motor (EC), combined with a centrifugal impeller, which ensures a wide range of adjustments and a significant reduction in consumption, with the same performance output

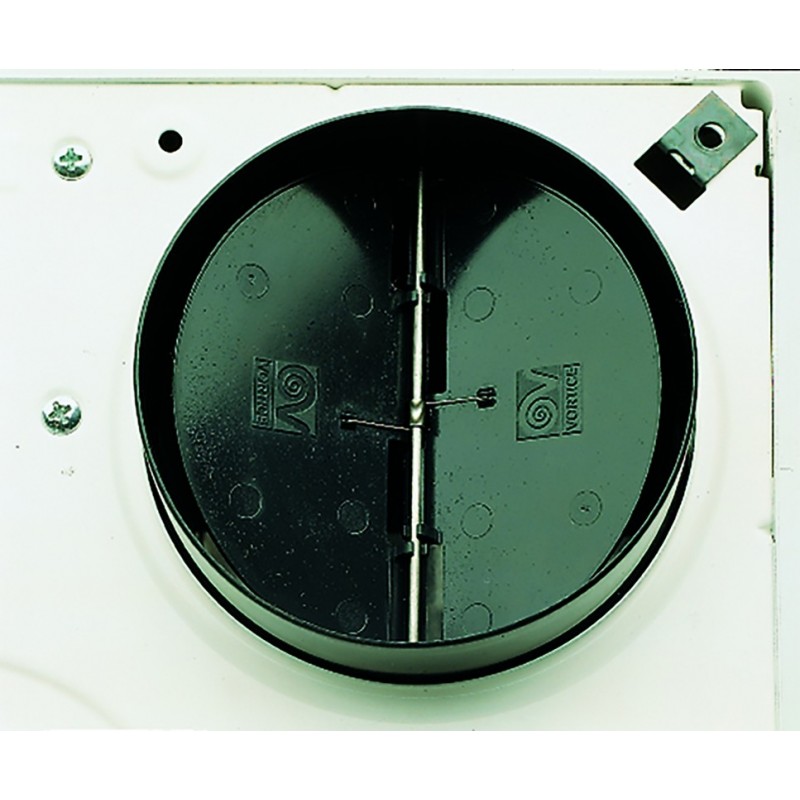

- Automatic butterfly closure to prevent air from re-entering when the appliance is switched off

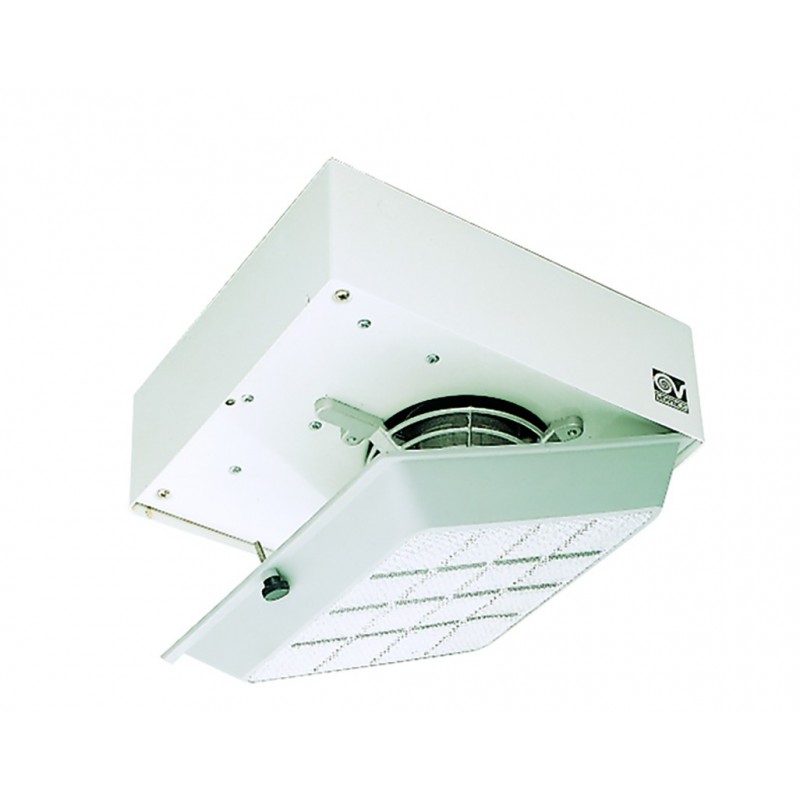

- Saturated filter signalling device
- Speed controllable by potentiometer or optional 3-speed controller.
Technical specifications:
- Rated current max. speed (A) 0,55
- Rated current min. speed (A) 0.1
- Nominal Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP Protection Grade X0
- Insulation 1st class
- Ø Exhaust (mm) 97
- Weight (Kg) 2.7
- Max. power consumption at max speed (W) 60
- Max. power consumption at min speed (W) 9
- Voltage (V) 220-240
- Max. flow rate at max. speed (l/s) 75
- Max. flow rate at max. speed (m³/h) 270
- Max. flow rate at min. speed (l/s) 28
- Max. flow rate at min. speed (m³/h) 100
- Max pressure at max speed (mmH2O) 35,5
- Max pressure at max speed (Pa) 348
- Max. pressure at min. speed (mmH2O) 7.3
- Max. pressure at min. speed (Pa) 72
- Sound pressure Lp [dB (A)] 3m - max vel 55.3
- Sound pressure Lp [dB (A)] 3m - min vel 35.8
- Sound pressure Lp in free field [dB(A)] 1 m 64.8
- Sound pressure Lp in free field [dB(A)] 3 m 55.3 db
- RPM max 2270
- RPM min 1050
Data sheet
- Diameter: 100
- Type: Centrifugal fans
