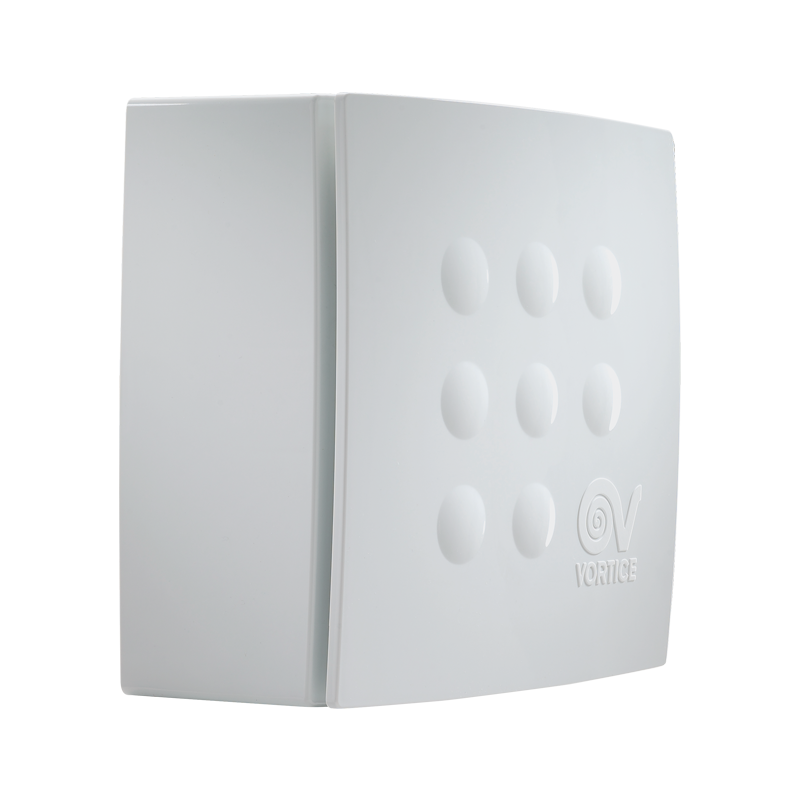

Vortice Centrifugal Vacuum cleaner MICRO 100 11936
VOR 0000011936
8010300119366
Air and odor aspirator Vortice model MICRO 100 centrifugal duct, White color, Rated diameter 100 mm.
![](https://www.elettronew.com/34176-large_default/vortex-centrifugal-aspirator-micro-100-11936.jpg)
Vortice Centrifugal Vacuum cleaner MICRO 100 11936
€119.65
€119.65
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 52
Frequently bought together
Features:
- White ABS plastic resin construction
- 2-speed induction type motor with starting capacitor, coupled to a forward vane centrifugal impeller
- Equipped with thermo-fuse protection and self-lubricating bushings
- Rated diameter 100 mm
- Minimum flow rate: 65 m3/h
- Maximum flow rate: 90 m3/h
- Safety and performance certified IMQ and IMQ PERFORMANCE
- Speed controllable by Vortex regulator.
Technical specifications:
- Max. current consumption at max. speed (A) 0.13
- Max. current consumption at min. speed (A) 0,10
- Rated Duct Diameter (mm) 100
- Frequency (Hz) 50
- IP X4 Degree of Protection
- Insulation Class II
- Ø Exhaust (mm) 92.5/97
- Weight (Kg) 1,80
- Max. power consumption at max speed (W) 28
- Max. power consumption at min speed (W) 20
- Max. ambient temp. continuous operation (°C) 50
- Voltage (V) 220-240
- Free field sound emission [dB(A)] 3m 32.3
- Max. flow rate at max. speed (m³/h) 90
- Max. flow rate at min. speed (l/s) 18
- Max. flow rate at min. speed (m³/h) 65
- Max pressure at max speed (mmH2O) 22
- Max pressure at max speed (Pa) 216
- Max. pressure at min. speed (Pa) 157
- Sound pressure Lp [dB (A)] 3m - max vel 39.2
- Sound pressure Lp [dB (A)] 3m - min vel 32.3
Data sheet
- Diameter:
- 100
- Type:
- Centrifugal fans
